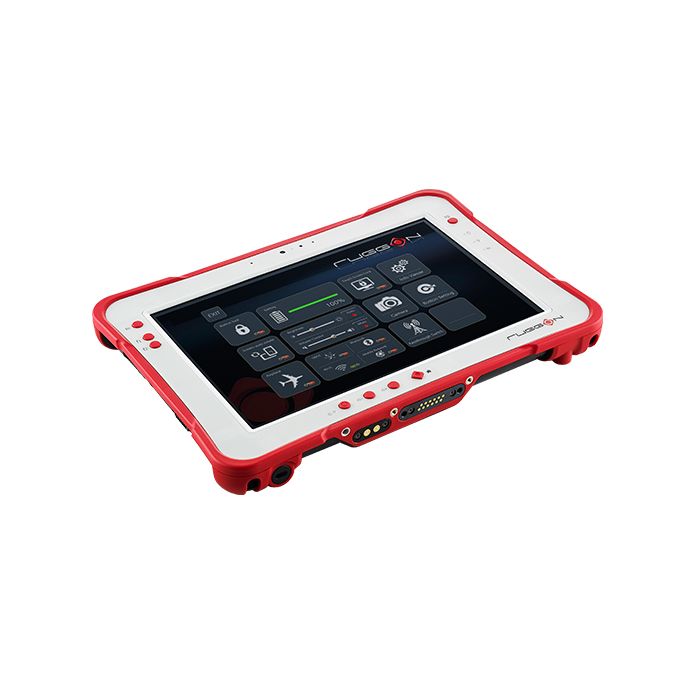

RuggOn PA-501 Rugged Tablet

Designed for industrial fieldwork, the RuggOn PA-501 Rugged Tablet provides reliable performance in harsh environments with an IP65-rated enclosure protecting against dust and water ingress. Its rugged chassis meets MIL-STD-810G standards, enduring drops up to 1.22 metres and resisting vibration, making it well-suited for continuous-duty applications. The tablet features a 10.1-inch WUXGA Gorilla Glass 3 display with 1000 nit brightness and a multi-touch screen supporting glove and stylus input, enhancing usability outdoors or in demanding conditions.

Powered by a Texas Instruments dual-core Cortex A9 processor, it supports a broad operating temperature range from -20°C to 60°C. Connectivity is robust, including Wi-Fi, Bluetooth 4.0, GNSS, and optional cellular modules, ensuring constant communication capabilities. With TPM 1.2 security, this device safeguards data for industrial applications requiring reliable operation. Additional I/O options such as USB, Ethernet, RS-232, and micro HDMI enhance integration possibilities.

PA-501 Features

  • IP65 rated enclosure
  • MIL-STD-810G drop and vibration tested
  • 1000 nit sunlight-readable 10.1-inch capacitive touchscreen
  • Wide operating temperature from -20°C to 60°C
  • Multiple communication interfaces including Wi-Fi GPS Bluetooth LTE options

Request a Quote

Product Type

Screen Size

Operating System

Manufacturer

Country Of Manufacture

Taiwan

Certifications

CE, RoHS compliant

Custom Options Products

Interface,Processor,Memory,Storage,Connections,Operating System

Dimensions

190.9 mm x 79.7 mm x 34.6 mm (7.5 x 3.1 x 1.3 in)

Humidity

90% relative at -30 C to +60 C; MIL-STD-810G 507.5 II

Operating System

Android

Operating Temperature

:-30 C to +60 C, MIL-STD-810G 501.5/502.5 I, II and III

Processor

Texas Instruments

Storage Temperature

:-40 C to +70 C, MIL-STD-810G 501.5/502.5 I, II and III

Accessories and Docking

5-pin USB connector

Camera

Front : 2MP Rear : 5MP with auto focus and LED flash

Data Capture

NFC 2D barcode reader (option) Smart card reader - CAC (snap-on, by request) Magnetic stripe reader (snap-on, by request)

Display

10.1-inch 1920 x 1200 WUXGA; 1000 nit sunlight readable 5-point capacitive touch supports glove touch, water rejection, palm rejection, 2mm hard tip stylus Gorilla Glass3

Drop Test

4'/1.22 m; MIL-STD-810G 516.6 IV

Functional Shock/Altitude

15,000'/4,500+ m; MIL-STD-810G 500.5 I, II and III

Integrated Communications

Wi-Fi 802.11 a/b/g/n Bluetooth V4.0 GNSS (GPS/GLONASS/BeiDou) Optional 3.5G or 4G LTE

I/O Interfaces

USB 2.0 type A x 1, Micro USB x 1 Gigabit Ethernet (RJ-45 ) x 1 RS-232 x 1 Micro SD slot x 1, Micro SIM slot x 1, Micro HDMI x 1 Audio jack (headphone/microphone combo) x 1 Speaker & microphone Dual RF pass-through connector for WLAN, GNSS, WWAN 12-pin do

Memory

1 GB RAM/4 GB iNAND Flash

MEMORY (Installed)

1GB

Operating System

Android 4.2

Power

External AC Power Adapter

Processor, Chipset

TI Dual Core Cortex A9 OMAP4470 1.5GHz 2GB LPDDR2 32GB eMMC (option 64GB)

Ruggedness/Durability

Shock & vibration : MIL-STD-810G Drop : 5 feet drop IP65 resistant design Operating temperature : -20 C to +60 C

Security

TPM1.2

Sound/Audio

Built in: Receiver, loud-speaker; mic

Storage

MicroSD, SDHC

Vibration

MIL-STD-810G, Method 514.6, Procedure I and II, Category 5

The RuggOn PA-501 Rugged Tablet is designed and engineered for use in demanding environments where reliability, durability are essential. The PA-501 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Natural Resources and Mining, Oil and Gas.

Across these sectors, the PA-501 is typically used in applications such as Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Mobile Workforce Operations, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Route Planning And Navigation, Secure Communications And Command-And-Control, Surveying, Mapping, And GIS Data Capture.

These examples demonstrate the versatility of the PA-501 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the PA-501 is appropriate for your specific application, please contact us.

The RuggOn PA-501 Rugged Tablet comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn PA-501 Rugged Tablet, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn PA-501 Rugged Tablet or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn PA-501 Rugged Tablet or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RuggON PA-501 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.

    Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.

    Browse through our related products and find the perfect match that complements your choice seamlessly.

    • IP65 sealed enclosure
    • MIL-STD-810G certified shock and vibration resistance
    • -20°C to +60°C operating range
    • Hot-swappable battery with fast charging
    • 12.1-inch high-brightness display supporting gloved operation
    • MIL-STD-810H vibration and shock resistance
    • IP66 dust and water protection
    • Wide I/O and wireless connectivity options
    RuggON VULCAN 12X
    • IP65 dust and water resistance
    • MIL-STD-810H and MIL-STD-461G certified durability
    • Glove-compatible Gorilla Glass touchscreen
    • Hot-swappable battery with 5G and Wi-Fi 7 connectivity
    RuggOn
    • IP65 dust and water resistance
    • MIL-STD-810G shock and vibration certified
    • Sunlight-readable 10.1-inch capacitive touchscreen
    • Versatile connectivity with USB 3.0 and GNSS
  • Having trouble finding what you're looking for?


    Selecting the right product for your specific application and environment can be quite challenging. At Rugged, our team of experts is on hand to assist you in making the best choice. Whether you have questions about product specifications or require guidance through our range of solutions, we’re here to help.

    With our extensive industry knowledge and commitment to quality, we can ensure you find the ideal solution tailored to your needs.

    Contact Us
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • RUGGED offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    Yes, many rugged tablets are designed with integrated connectivity options, including both 4G and 5G capabilities. This ensures that users can maintain consistent communication and access critical data while working in the field, where traditional Wi-Fi might be unavailable or unreliable. The integration of 4G and 5G in a rugged tablet means enhanced productivity and operational efficiency across various demanding industries.

    Rugged Limited provides a selection of rugged tablets that incorporate these advanced cellular technologies, offering dependable internet access and communication features essential for mobile workforces. This allows for seamless data syncing, real-time collaboration, and access to cloud-based applications, all crucial for operations that extend beyond typical office environments.

    Rugged tablets are ideal for construction sites, offering unparalleled durability and functionality in challenging environments. These devices are specifically engineered to endure conditions that would quickly damage standard electronics, including exposure to dust, drops, vibrations, and extreme temperatures. Their robust construction ensures reliable performance on-site, reducing downtime and the need for frequent replacements.

    For instance, a rugged tablet can be used for a variety of critical tasks, such as accessing blueprints and schematics, managing inventory, conducting site inspections, and submitting real-time reports. Their bright, often glove-friendly touchscreens make them practical for use in varying light conditions and by workers wearing personal protective equipment. This resilience and versatility make the rugged tablet an indispensable tool for enhancing efficiency and productivity on any construction project.

    Rugged Limited provides a diverse range of rugged tablets, many of which are available with either Windows or Android operating systems to suit different operational requirements. This flexibility ensures that businesses can integrate a rugged tablet seamlessly into their existing IT infrastructure and software ecosystems.

    For example, some of our rugged tablet models are equipped with Android for applications that benefit from its intuitive interface and broad app availability, while others feature Windows for compatibility with desktop software and enterprise management tools. When choosing a rugged tablet, considering the operating system that best supports your specific workflows is crucial.

    Rugged tablets are fundamentally different from standard tablets in their design and construction, as they are built to withstand conditions that would quickly damage a conventional device. These differences ensure superior durability and functionality in harsh environments. Here are the key distinctions:

    • Durability: Rugged tablets are designed to meet military standards (MIL-STD-810G/H) for drops, shocks, and vibrations, and often have ingress protection (IP) ratings for resistance to dust and water. Standard tablets lack these enhanced protective features.
    • Operational Temperature Range: A rugged tablet can operate reliably across wide temperature extremes, from freezing cold to intense heat, making them suitable for outdoor or industrial settings where standard tablets would fail.
    • Display Visibility: Many rugged tablets feature bright, daylight-readable displays with glove-friendly touchscreens, essential for outdoor work, which are not common in standard consumer tablets.
    • Battery Life: Rugged devices often incorporate long-life or hot-swappable batteries, ensuring extended operation in the field without needing to power down, a critical feature for professionals who work remotely.
    • Connectivity: Enhanced connectivity options, including advanced GPS, cellular, and professional-grade Wi-Fi, are often standard in rugged tablets, providing reliable communication where consumer devices might struggle.
    • Customisation and Ports: Rugged tablets typically offer more robust and varied port selections (e.g., serial ports, Ethernet) and can be customised with integrated barcode scanners, RFID readers, and other modules for specific industry needs.

    Rugged Limited provides a wide range of devices specifically designed for these demanding applications.

    While it’s true that a rugged tablet excels in industrial environments due to its durability and resilience, its utility extends far beyond factories and construction sites. Rugged Limited designs these devices to withstand harsh conditions across various sectors, including logistics, public safety, field service, healthcare, and retail. Their robust construction protects against drops, extreme temperatures, dust, and water ingress, making them suitable for any demanding work environment where standard commercial tablets would fail.

    The versatility of a rugged tablet allows for reliable performance in diverse scenarios, from tracking inventory in a dusty warehouse to managing patient data in a busy hospital, or navigating complex routes in the field. Rugged Limited ensures these devices can handle the rigors of these varied applications, providing essential tools for professionals who require dependable technology in challenging conditions. Thus, while industrial use is prominent, it represents only a part of the broad spectrum of environments where a rugged tablet proves invaluable.

    The lifespan of a rugged tablet is a key advantage over standard consumer tablets, which often fail prematurely in challenging work environments. Rugged tablets from Rugged Limited are engineered with durability as a core principle, designed to withstand drops, vibrations, extreme temperatures, and ingress from dust and water thanks to features like MIL-STD-810G ratings and IP certifications. This robust construction means that a rugged tablet is not just a temporary tool but a long-term investment, significantly reducing total cost of ownership through fewer replacements and less downtime.

    While specific lifespans can vary based on usage intensity and environmental factors, these devices are generally built to perform reliably for a minimum of 3-5 years. Many users experience even longer operational periods, making them an economical choice for industries requiring dependable technology. For those interested in exploring these durable devices further, you can find a comprehensive selection of rugged tablets at Rugged Limited.

    Rugged Limited’s rugged tablets are built to withstand challenging conditions, including exposure to various chemicals. These devices often feature sealed designs and materials that prevent ingress of liquids and corrosive substances, making them ideal for industries where chemical resistance is crucial, such as manufacturing, healthcare, and field services. The robust construction of a rugged tablet ensures reliable operation and longevity even when frequently exposed to cleaning agents, industrial solvents, or other chemical compounds, protecting internal components from damage.

    Rugged Tablets offer significant advantages over consumer tablets, particularly in environments where standard devices simply cannot withstand the rigours of daily use. While consumer tablets are designed for general use, a <strongRrugged Tablet is engineered to endure harsh conditions, making them ideal for industries like construction, logistics, and field services.

    These robust devices typically feature:

    • Enhanced Durability: They are built to military standards (e.g., MIL-STD-810G) for drops, shocks, and vibrations.
    • IP Ratings: Offering ingress protection against dust and water, ensuring reliable operation in challenging weather or dirty conditions.
    • Extended Battery Life: Designed for long shifts without frequent recharging.
    • Optimised Screens: Gloved-touch, sunlight-readable displays enhance usability in various settings.
    • Specialised Connectivity: Options for dedicated GPS, barcode scanners, and other industrial-specific peripherals.

    Rugged Limited provides a range of these durable solutions, ensuring that businesses can maintain productivity and efficiency with reliable hardware. For more information on the available options and their benefits, you can explore our selection of Rugged Tablets.
