PM-501 Ruggon Tablet

PM-501 Ruggon Tablet

PM-521 Ruggon Tablet

PM-521 Ruggon Tablet

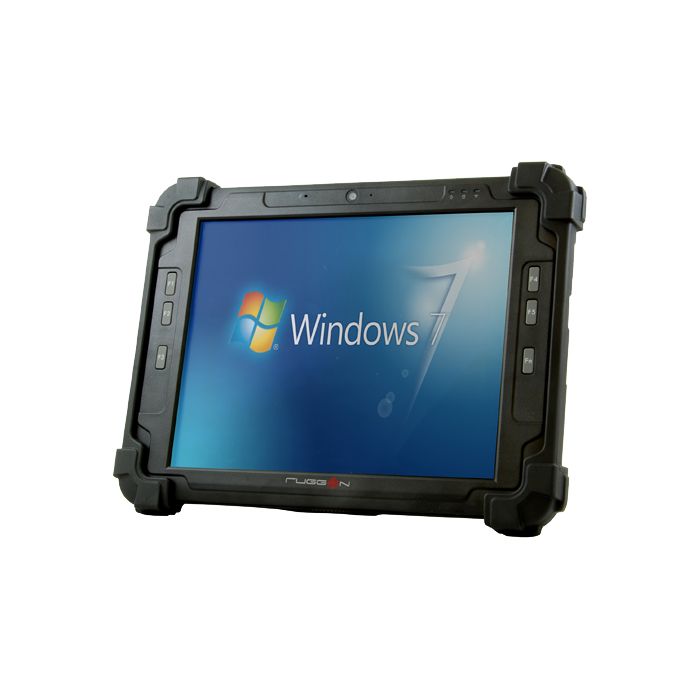

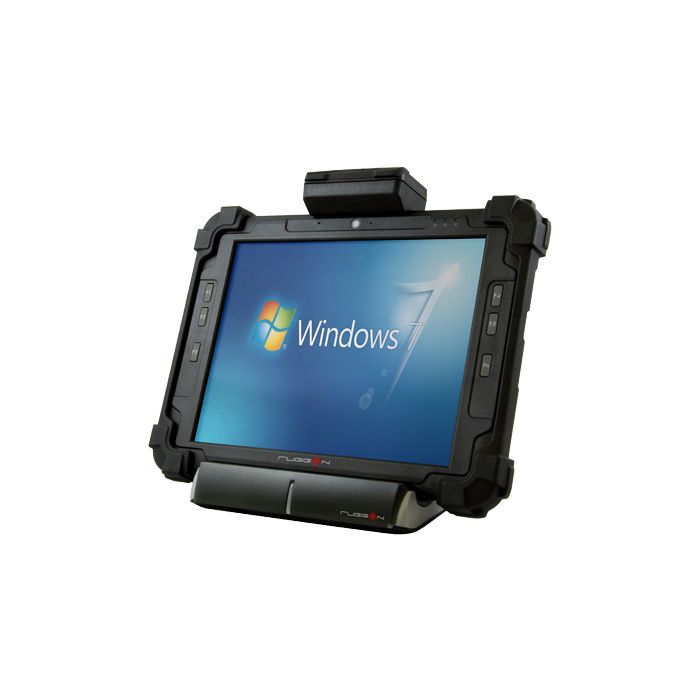

PM-511 Ruggon Tablet

Ruggon Rugged Tablet PC

PM-511 Features

  • IP65, MIL-STD-810G, 6 Feet Drop Resistance
  • Sunlight Readable Function By Request
  • Seamless Communications, Optional 3.5G
  • Up To 9 Hours Of Battery Life
  • 2Mp and 5Mp With Auto Focus, LED Flash Cameras


Ruggon Rugged Tablet PC

Specification
Manufacturer or Brand RuggON
Mounting Format Car Mount, Mobile, Vehicle Mount
Screen Size 10.4"
Processor Intel
Operating System Windows
Certifications CE, RoHS compliant
Operating Temperature :-30 C to +60 C, MIL-STD-810G 501.5/502.5 I, II and III
Storage Temperature :-40 C to +70 C, MIL-STD-810G 501.5/502.5 I, II and III
Humidity 90% relative at -30 C to +60 C; MIL-STD-810G 507.5 II
Dimensions 190.9 mm x 79.7 mm x 34.6 mm (7.5 x 3.1 x 1.3 in)
Warranty Standard Manufacturers Limited Warranty + Option to Extend
Accessories and Docking 5-pin USB connector
Camera Front : 2MP Rear : 5MP with auto focus and LED flash
Data Capture NFC + GNSS (snap-on, option) 1D/2D barcode reader (snap-on, option) 1D/2D barcode reader + GNSS (snap-on, option) Smart card reader - CAC + GNSS (snap-on, option) Magnetic stripe reader (snap-on, option)
Display 10.4-inch 1024 x 768 XGA 350 nit, 700 nits sunlight readable by request 5-wire resistive touch
Drop Test 4'/1.22 m; MIL-STD-810G 516.6 IV
Functional Shock/Altitude 15,000'/4,500+ m; MIL-STD-810G 500.5 I, II and III
Integrated Communications Wi-Fi 802.11 a/b/g/n Bluetooth V4.0 Optional 3.5G Optional GNSS (GPS/QZSS/GLONASS) (snap-on)
I/O Interfaces USB 2.0 x 2 Ethernet (via Mini USB to RJ-45 adapter) x 1 Audio jack (headphone/microphone combo) x 1 32-pin docking connector x 1 Micro SIM slot x 1 Speaker & microphone
Memory 1 GB RAM/4 GB iNAND Flash
MEMORY (Installed) 1GB
Operating System Windows Embedded Standard 7 32-bit Windows 7 Professional 32-bit
Power External AC Power Adapter
Processor, Chipset Intel Dual Core ATOM N2600 1.6GHz (Cedar Trail) 2GB DDR3 32GB half-slim SATA SSD (option 64GB/128GB)
Ruggedness/Durability Shock & Vibration : MIL-STD-810G Drop : 6 feet drop IP65 resistant design Operating Temperature : -20 C to +50 C
Security TPM1.4
Sound/Audio Built in: Receiver, loud-speaker; mic
Storage MicroSD, SDHC
Vibration MIL-STD-810G, Method 514.6, Procedure I and II, Category 5
  • IP65, MIL-STD-810G, 6 Feet Drop Resistance
  • Sunlight Readable Function By Request
  • Seamless Communications, Optional 3.5G
  • Up To 9 Hours Of Battery Life
  • 2Mp and 5Mp With Auto Focus, LED Flash Cameras
  • A Number Of 2-In-1 Modules For Data Capture
  • Wide Coverage Accessories
  • Compact Vehicle Dock W/ Wide Range Voltage Power
The RuggON PM-511 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the RuggON PM-511 Tablet are listed below:-

  • Factory Floor
  • Field Service
  • Mobile Worker

These are just some of the applications for the RuggON PM-511 Tablet The potential applications extend further than those shown above. For further information about the RuggON PM-511 Tablet or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the RuggON PM-511 Tablet to suit your requirements. These options include:

  • Interface
  • Processor
  • Memory
  • Storage
  • Connections
  • Operating System

If your application requires unusual or individual modifications not listed above for the RuggON PM-511 Tablet, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The RuggON PM-511 Tablet has a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, RuggON PM-511 Tablet, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
