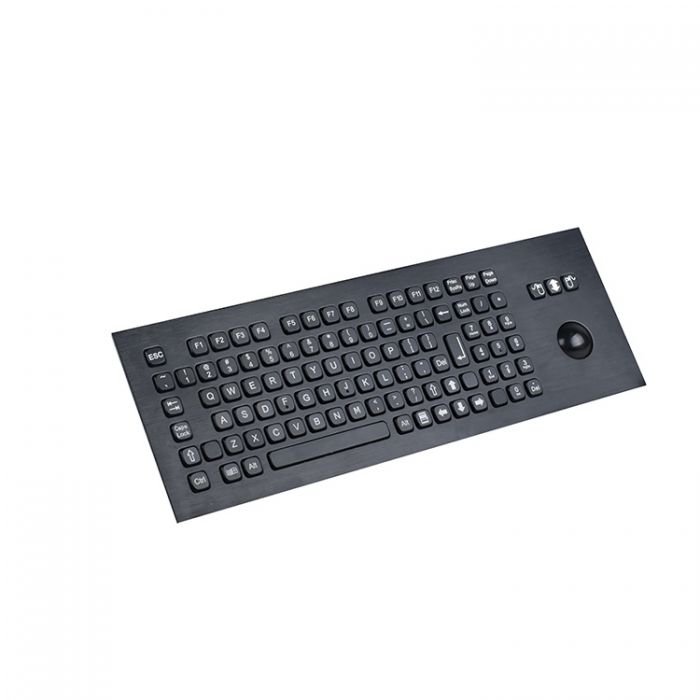

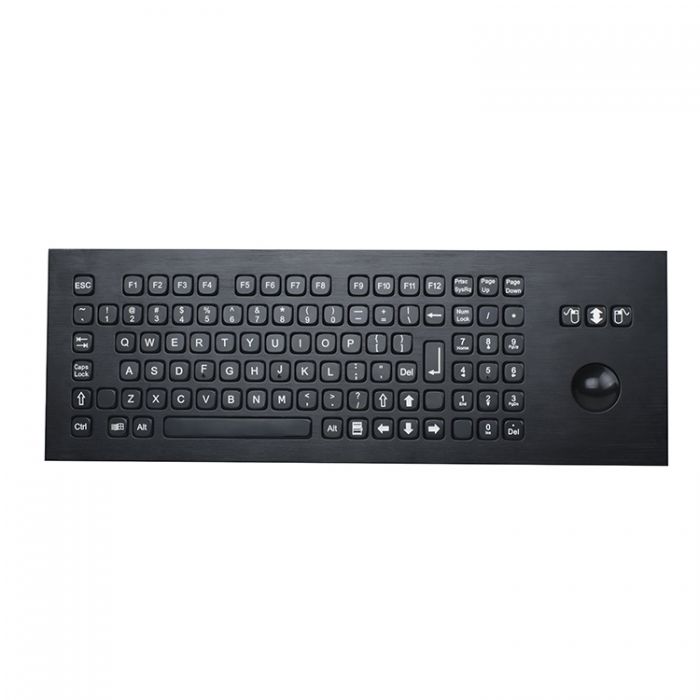

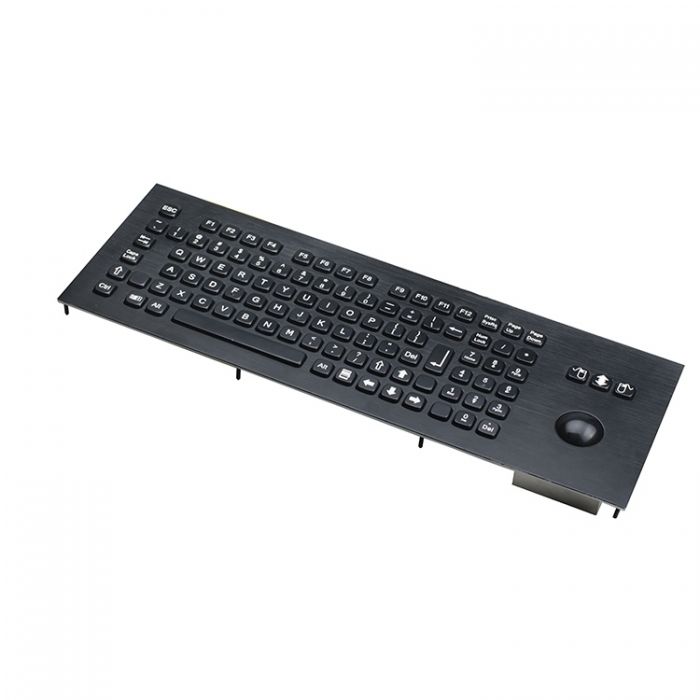

RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard

The RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard is built around a stainless steel front plate and sealed construction, supporting reliable data input in demanding industrial and field environments. Its IP65 equivalent sealing protects against dust and liquids, while the carbon-on-gold key switch technology ensures durability with over 10 million actuations for consistent tactile feedback. This keyboard is suitable for continuous-duty use, featuring a sealed silicone rubber mounting layer that enhances environmental resistance and mounting stability.

Certified to meet IEC 61000 series EMC standards, along with CE and RoHS compliance, the keyboard also features a mechanical trackball with 400 DPI resolution, compatible across Windows, Linux, Unix, and Mac OSX systems. Weighing 2kg and designed for operating temperatures from -20 6C to +60 6C with 30 60% humidity tolerance, it is engineered for robustness and dependable service in industrial settings.

RKB-A420-TB-KP-FN-BT Features

  • Panel Mount Metal Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

420.0mm x 145.0mm (front panel) , 400.0mm x 125.0mm (back panel)

Humidity

30-90% Humidity Resistant

Ball Material

Transparent Mechanical Trackball Module

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 10 Million Actuations

Material (Bottom Plate)

Brushed And Oxidized Aluminum

MTBF

>50000H

MTTR

<30min

No. Of Keys

100

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

2.00KGs

Resolution

400 DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Trackball Diameter

38.1mm (1.5’) diameter

Length

400.0mm

Temperature Rating

STORAGE: -30C to +70Cï¾  OPERATING: -20C to +60Cï¾

Width

124.0mm

The RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-A420-TB-KP-FN-BT supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas.

Across these sectors, the RKB-A420-TB-KP-FN-BT is typically used in applications such as Forklift And Materials-Handling Terminals, Industrial HMI And Machine Interfacing, Port, Terminal, And Cargo Handling, Process Control And Shop-Floor Monitoring, Secure Access, Authentication, And Control Terminals, Security And Surveillance Operations, Vehicle-Mounted Computing (MDTs / VMCs), Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the RKB-A420-TB-KP-FN-BT across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-A420-TB-KP-FN-BT is appropriate for your specific application, please contact us.

The RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A420-TB-KP-FN-BT Industrial Rugged Keyboard, or would you like to discuss a customised solution?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A420-TB-KP-FN-BT or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
