RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad

This product has reached End of Life (EOL) status and is no longer in production. Manufacturer support, updates, and spare parts may be discontinued.

All information is provided for reference only. Availability cannot be guaranteed.

Please contact us to discuss current alternatives or recommended replacement models.

Designed for demanding industrial environments, the RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad offers a sealed and impact-resistant input solution. Its stainless steel housing and aluminium alloy base plate ensure corrosion resistance and durability in harsh conditions, while IP65 ingress protection guards against dust and liquid entry. This keyboard supports continuous-duty use with a lifespan exceeding 10 million keystrokes and meets MIL-STD-810H vibration standards, ensuring reliability in rugged operations.

Compatible with USB or PS2 interfaces, it functions across a broad temperature range from -40 0 0C to +70 0 0C, suitable for varied industrial and outdoor deployments. The integrated touchpad and compact layout enhance usability in constrained spaces. Certified to CE, FCC, and RoHS standards, it accommodates various operating systems including Windows, Linux, Mac, and iOS, supporting flexible computing setups. With a robust mounting design and over 50,000 hours MTBF, the RKB-D-8608-DESK is built for consistency in field-ready applications.

RKB-D-8608-DESK Features

  • Integrated Touchpad
  • High Impact Resistance
  • IP65 Rated
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

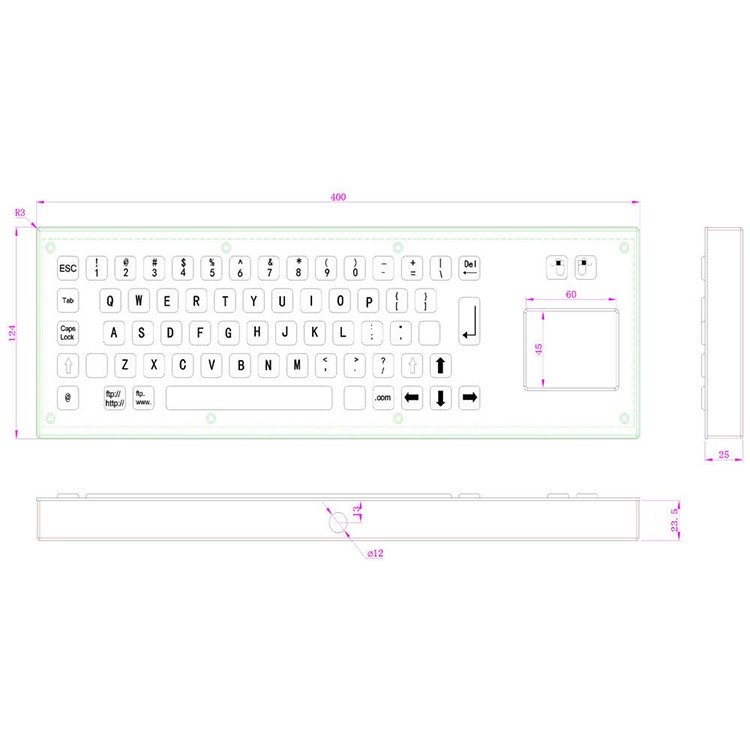

Dimensions

400 x 124 x 25mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

400*124*25mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

67

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8608-DESK supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Offshore Operations, Oil and Gas, Rail And Transport, Security And Surveillance.

Across these sectors, the RKB-D-8608-DESK is typically used in applications such as Emergency Dispatch And Incident Management, Field Data Capture And Reporting, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Security And Surveillance Operations.

These examples demonstrate the versatility of the RKB-D-8608-DESK across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8608-DESK is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8608-DESK Compact Desktop Stainless Steel Keyboard with Touchpad, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8608-DESK or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • IP65 sealed front panel
    • Industrial-grade stainless steel construction
    • USB and PS/2 connectivity options
    • Wide operating range -40°C to +70°C
    • IP65 sealed stainless steel housing
    • Carbon-on-gold key switch for tactile feedback
    • FN + Clean function for safe cleaning
    • MTBF over 50,000 hours for reliability
    • IP65 ingress protection
    • Over 10 million key actuations lifespan
    • USB and PS2 connectivity
    • Operational from -40°C to +70°C
    • Stainless steel IP65 ingress protection
    • Gold-on-gold tactile switch technology
    • Over 50,000 hours MTBF
    • Multi-OS compatibility with integrated touchpad
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    Many of Rugged Limited’s rugged keyboards are indeed designed with a high level of ingress protection, making them dust-proof. This means they are engineered to prevent the intrusion of dust and other small particles, ensuring reliable operation even in harsh or challenging environments. The sealed designs and robust materials used in these keyboards contribute to their ability to withstand exposure to dust without compromising functionality. This dust-proof characteristic is a key feature that makes a rugged keyboard an ideal choice for industries where cleanliness and environment control can be difficult.

    Rugged Limited offers a range of keyboards specifically engineered to withstand harsh environments, and a key feature for many of these is their dust-proof design. Our Rugged Keyboards are built to IP (Ingress Protection) standards, which indicate their level of resistance to solids like dust.

    For instance, some models boast an IP65 rating, meaning they are completely protected against dust ingress. This makes them an excellent choice for industries where dust and debris are common, ensuring consistent functionality and a longer lifespan. When you choose a Rugged Limited product, you’re investing in a durable solution, and many of our keyboards provide a dependable dustproof rugged keyboard option for demanding applications.

    An Ingress Protection (IP) rating is a critical standard for rugged keyboards, specifying the degree of protection provided against dust, dirt, and water. This two-digit code is internationally recognised and helps users understand how well a device can withstand environmental factors.

    The first digit in an IP rating signifies protection against solid objects, ranging from 0 (no protection) to 6 (dust-tight). A higher number here means greater resistance to particles entering the device.

    The second digit indicates protection against liquids, ranging from 0 (no protection) to 9 (withstanding high-pressure, high-temperature jet sprays). This is particularly important for a rugged keyboard that might be exposed to spills, rain, or even submersion. Rugged Limited offers a range of peripherals engineered to meet these demanding standards.

    Rugged Limited specialises in providing industrial solutions, and this includes offering customisation options for their rugged keyboard range. We understand that different industries and applications have unique demands, which is why our rugged keyboards can be tailored to incorporate various features.

    For instance, standard options like integrated pointing devices, backlighting, and different mounting solutions are available to enhance functionality and usability. Beyond these, Rugged Limited can implement bespoke modifications to ensure the rugged keyboard seamlessly integrates into your specific setup and operational environment. This commitment to customisation ensures that you receive a product perfectly suited to your needs, rather than a one-size-fits-all solution.

    While the primary design focus for a rugged keyboard is to withstand extreme conditions and provide reliable functionality in challenging environments, some models do incorporate ergonomic considerations. These can include features like appropriately spaced keys to reduce typing strain or a comfortable angle for prolonged use.

    However, it’s important to note that a rugged keyboard prioritises resistance to factors such as dust, water, vibrations, and extreme temperatures. Therefore, while basic ergonomic elements may be present to ensure user comfort during operation, they generally won’t offer the same advanced ergonomic designs found in specialised office keyboards. This balance ensures the rugged keyboard performs reliably in demanding settings.

    Rugged Limited specialises in providing industrial peripherals built to withstand harsh conditions, including marine settings. Our rugged keyboards are engineered with features like IP (Ingress Protection) ratings, which are crucial for protecting against water and other liquids commonly found in marine applications. This ensures that the keyboard can endure exposure to moisture, salt spray, and even submersion, depending on the specific IP rating.

    Furthermore, the materials used in our rugged keyboard manufacturing are selected for their durability and resistance to corrosion, which is a significant factor in saltwater environments. This robust construction guarantees reliable operation and a long lifespan, reducing downtime and maintenance in challenging marine conditions.

    Rugged Limited offers a range of durable keyboards specifically engineered to meet the stringent requirements of cleanroom settings. These rugged keyboard solutions are often fully sealed and easy to clean, preventing the accumulation of dust and contaminants crucial for maintaining cleanroom protocols.

    Our industrial keyboards are built with materials and designs that can withstand harsh cleaning agents and frequent sanitization without compromising performance or integrity. This makes them an ideal rugged keyboard choice for pharmaceutical, medical, and other controlled environments where hygiene and reliability are paramount.

    Rugged Limited provides a range of rugged keyboards designed to withstand challenging industrial environments, including those found on forklifts and heavy machinery. These keyboards are built to be extremely durable, offering resistance to liquids, dust, and extreme temperatures, which are common conditions in such operational settings.

    The design of many rugged keyboard models includes features that facilitate easy integration into various industrial setups. This often involves robust casings and adaptable mounting solutions, ensuring a secure and stable fit even with vibrations or impacts inherent to machinery operation. Their resilience makes them a reliable interface for data entry and control in demanding applications. Rugged Limited’s extensive experience ensures these keyboards meet the rigorous demands of industrial use.
