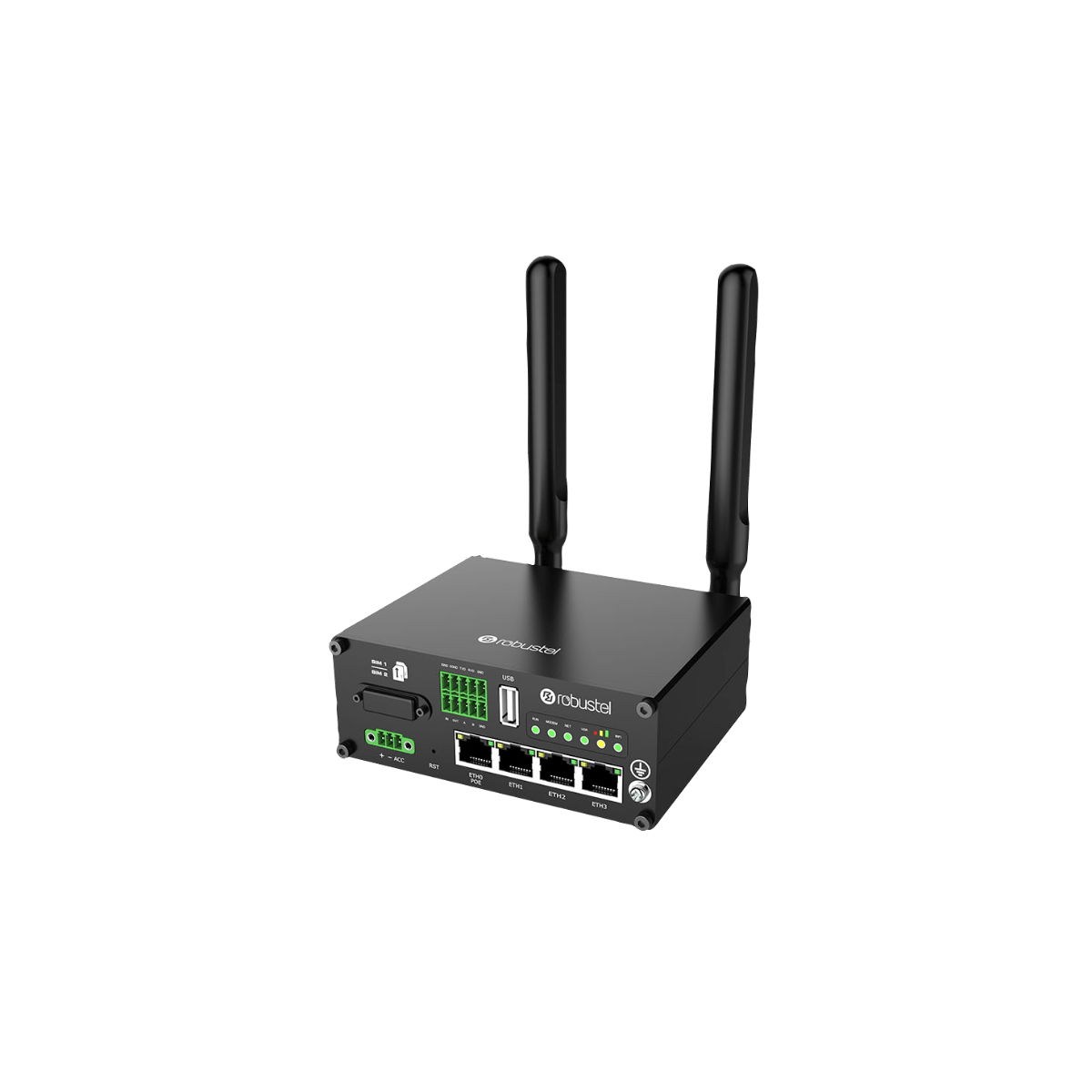

The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.
Manufacturer or Brand | Robustel | ||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mounting Format | Desktop, Free Standing, Vehicle Mount, Wall Mount, Portable, DIN Rail | ||||||||||||||||||||||||||||||
IP Rating | IP30 | ||||||||||||||||||||||||||||||
Housing Colour | Black | ||||||||||||||||||||||||||||||
Case Material | Metal | ||||||||||||||||||||||||||||||
Cellular Connectivity | Telstra | ||||||||||||||||||||||||||||||
Cellular Connectors | 2 (MAIN + AUX) | ||||||||||||||||||||||||||||||
Antenna Connectors | SMA-K | ||||||||||||||||||||||||||||||
SIM Slots | 2 Mini SIM (2FF) | ||||||||||||||||||||||||||||||
WI-FI Standards | 802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes | ||||||||||||||||||||||||||||||
WI-FI Frequency Bands | 2.412 2.472 GHz (2.4 GHz ISM band) 5.15 5.825 GHz (5 GHz ISM band) | ||||||||||||||||||||||||||||||
WI-FI Antennas | 2 | ||||||||||||||||||||||||||||||
WI-FI Connectors | RP-SMA-K | ||||||||||||||||||||||||||||||
WI-FI Encryption | AES, TKIP, WEP64 | ||||||||||||||||||||||||||||||
WI-FI Security | Open, WPA, WPA2, WEP | ||||||||||||||||||||||||||||||
WI-FI Data Speed | 5G: Up to 867Mbps 2.4G: Up to 300Mbps | ||||||||||||||||||||||||||||||
Ethernet Ports | 3 x LAN (10/100/1000 Mbps) Support 802.3at PD feature on ETH0 1 x WAN (10/100/1000 Mbps) | ||||||||||||||||||||||||||||||
Magnet Isolation Protection | 1 KV | ||||||||||||||||||||||||||||||
Serial Ports | 1 x RS-232 + 1 x RS-485 | ||||||||||||||||||||||||||||||
Serial Baud Rate | 300bps to 115200bps | ||||||||||||||||||||||||||||||
Serial ESD Protection | ±15 KV | ||||||||||||||||||||||||||||||
Console Connectors | 2 x 3-pin 3.5 mm female socket | ||||||||||||||||||||||||||||||
Bluetooth | BLE 5.0 Compatible with BLE 4.2, BLE 4.0 | ||||||||||||||||||||||||||||||
Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc. | ||||||||||||||||||||||||||||||
Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP | ||||||||||||||||||||||||||||||
Management/Troubleshooting Tools | Web, CLI, SMS | ||||||||||||||||||||||||||||||
VPN Tunnel | IPsec, OpenVPN, GRE | ||||||||||||||||||||||||||||||
Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control | ||||||||||||||||||||||||||||||
Others | Bluetooth Interface (Optional) - BLE 5.0 Compatible with BLE 4.2, BLE 4.0 - 1 antennas via RP-SMA-K | ||||||||||||||||||||||||||||||
DI/DO Type | 1x DI + 1 x DO, wet contact | ||||||||||||||||||||||||||||||
DI/DO Connector | 2 x 2-pin 3.5 mm female socket | ||||||||||||||||||||||||||||||
DI/DO Isolation | 3.75KV DC | ||||||||||||||||||||||||||||||
DI/DO Absolute MAX VDC | “V+” +30V DC (DI), +30V DC (DO) | ||||||||||||||||||||||||||||||
DI/DO Absolute MAX ADC | 100 mA | ||||||||||||||||||||||||||||||
Available Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Bluetooth, Dynamic Route, Data Guard | ||||||||||||||||||||||||||||||
Status LED | 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI | ||||||||||||||||||||||||||||||
Reset Button | 1 x RST | ||||||||||||||||||||||||||||||
Built-in | 1 x Micro SD interface, Expansion 1 x USB2.0 Host; 5V/500mA, Watchdog | ||||||||||||||||||||||||||||||
Power Supply Connector | 3-pin 3.5 mm female socket with lock | ||||||||||||||||||||||||||||||
Power Input | 9 to 36V DC (POE-PD), 10 to 30V DC (ACC) | ||||||||||||||||||||||||||||||
Power Consumption | Idle: 500 mA@12 V Data link: 1.3 A (peak) @12 V | ||||||||||||||||||||||||||||||
Certifications | CE, RCM, Telec, JATE, BQB | ||||||||||||||||||||||||||||||
Approvals / Certifications | E-mark (Vehicle), RoHS 2.0, WEEE | ||||||||||||||||||||||||||||||
Operating Temperature | Minus 40 degrees celsius to 70 degrees celsius | ||||||||||||||||||||||||||||||
Storage Temperature | Minus 40 degrees celsius to 85 degrees celsius | ||||||||||||||||||||||||||||||
Humidity | 5% to 95% (non-condensing) | ||||||||||||||||||||||||||||||
Dimensions | 125 x 100 x 48 mm | ||||||||||||||||||||||||||||||
Warranty | 2 Year Limited Warranty | ||||||||||||||||||||||||||||||
Ordering Info |
|
The Robustel R2110 Smart LTE / LTE-A Router has a 2 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, Robustel R2110 Smart LTE / LTE-A Router, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
