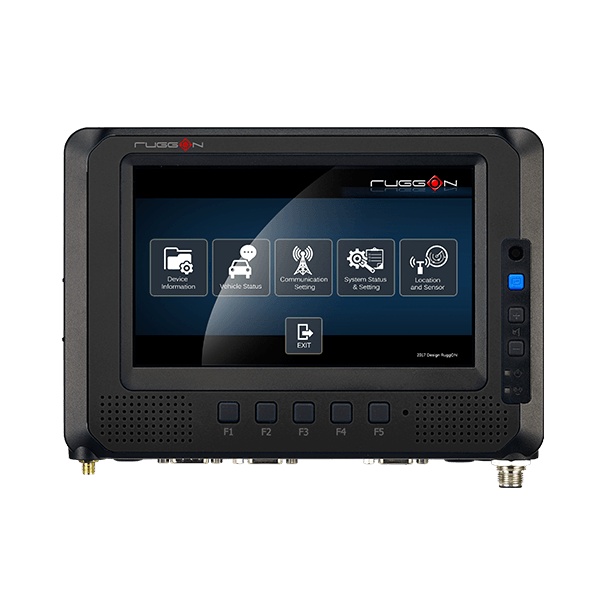

RuggOn RuggVMC MT7010 Data Terminal

This product has reached End of Life (EOL) status and is no longer in production. Manufacturer support, updates, and spare parts may be discontinued.

All information is provided for reference only. Availability cannot be guaranteed.

Please contact us to discuss current alternatives or recommended replacement models.

The RuggOn RuggVMC MT7010 Data Terminal is designed for rugged vehicle-mounted deployments, combining robust communication with industrial-grade durability. It supports 4G LTE, Wi-Fi 802.11 a/b/g/n, Bluetooth 4.1, and a multi-constellation GNSS receiver covering GPS, GLONASS, and BeiDou. This offers precise real-time positioning and reliable data transmission across varied environments. The device meets MIL-STD-810G standards with shock resistance up to 40G and vibration tolerance, confirming suitability for transportation and logistics applications.

Power management includes ISO 7637-2 compliant vehicle power protection and an integrated UPS battery to secure safe shutdowns during power loss. The IP65-rated enclosure shields against dust and water ingress, enhancing field durability. The 7″ capacitive multitouch display delivers clear visibility with 500 nits brightness and auto-dimming, supporting effective operation under changing light conditions. Multiple I/O options such as RS-232, USB 2.0, CAN bus, and digital I/O allow flexible device integration. Operating on Android with Cortex-A7 quad-core processors, it balances performance with reliability for continuous-duty use in demanding industrial environments.

RuggVMC MT7010 Features

  • Integrated 4G LTE Wi-Fi and Bluetooth connectivity
  • Multi-GNSS support including GPS GLONASS and BeiDou
  • Vehicle-grade power protection with UPS backup
  • MIL-STD-810G certified shock and vibration resistance
  • IEC IP65 rated enclosure for dust and water resistance

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Screen Size

Processor

Operating System

Country Of Manufacture

Taiwan

Certifications

CE, FCC, eMar

Custom Options Products

Custom Logo,Processor,Memory,Storage,Operating System

Dimensions

(W x H x D) : 220 x 152 x 40 (mm)

Humidity

95%, non-condensing

Operating System

Android

Operating Temperature

-20°C to +60°C

Ordering Info

MT7010-QBE (P/N: 72-6I16900-10002)
MT7010 with Quad-Core Cortex-A7 1.3GHz, 2GB RAM, 16GB eMMC, GPS, WIFI/ BT with internal antenna and
Android 5.1 for EMEA

_x005F_x005F_x005F_x000D_

MT7010-QBN (P/N: 72-6I16900-10003)
MT7010 with Quad-Core Cortex-A7 1.3GHz, 2GB RAM, 16GB eMMC GPS, WIFI/ BT with internal antenna and
Android 5.1 for North America

_x005F_x005F_x005F_x000D_

MT7010-QBC (P/N: 72-6I16900-10004)
MT7010 with Quad-Core Cortex-A7 1.1GHz, 1GB RAM, 8GB eMMC, GPS, WIFI/ BT with internal antenna and
Android 5.1 for China

Processor

Cortex

Storage Temperature

30°C to +70°C

Accessories and Docking

Mounting Kit
WWAN Antenna
WIFI / BT Antenna

Box Contents

Power cable
GPS / GLONASS antenna
DB15 to USB cable
DB15 to DIO / CAN bus cable assemblies

Buttons

Programmable button x 5
System on/off x 1
Volume adjustment x 2

Display

7” WXGA TFT LCD (1024 x 600), 500 nits brightness
Capacitive multi touch (PCT)
Support auto-dimming

Integrated Communications

Gigabit Ethernet (RJ45 )
GNSS (GPS / GLONASS / BeiDou)
4G LTE / HSPA+ / GPRS
Wi-Fi 802.11 a/b/g/n
Bluetooth V4.1

I/O Interfaces

RS-232 with power supported x 1
RS-232/422/485 x 1
USB 2.0 x 2
Dual Micro SIM slot x 1
CAN bus (SAE J1939 supported) x 1
Digital I/O x 4
Audio headset jack x 1
DC-in x 1

Memory

1GB/ 2GB LPDDR2 SDRAM

MEMORY (Installed)

1GB/ 2GB LPDDR2 SDRAM

Operating System

Android

Power Management

9~36 VDC input
Ignition sense with delay on/off setting
UPS backup battery
Vehicle power protection (ISO7637-2 )

Processor, Chipset

Quad Core Cortex-A7 1.1GHz/ 1.3GHz

Ruggedness/Durability

IEC 60529 IP65 (except bottom side I/O)
Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth

SIM/SAM Slot

Dual Micro SIM slot x 1

Software

DashON

Sound/Audio

Built-in Dual Audio

Storage

8GB/ 16GB eMMC and Micro SD slot

Touchscreen

Capacitive multi touch (PCT)

The RuggOn RuggVMC MT7010 Data Terminal is designed and engineered for use in demanding environments where reliability, durability are essential. The RuggVMC MT7010 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Rail And Transport.

Across these sectors, the RuggVMC MT7010 is typically used in applications such as Driver Workflows And Tachograph Integration, Field Data Capture And Reporting, Fleet Management And Telematics, Health, Safety, And Compliance Inspections, Mobile Workforce Operations, Route Planning And Navigation, Vehicle Diagnostics And Onboard Systems, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the RuggVMC MT7010 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RuggVMC MT7010 is appropriate for your specific application, please contact us.

The RuggOn RuggVMC MT7010 Data Terminal comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RuggOn RuggVMC MT7010 Data Terminal, must be presented to RUGGED in the United Kingdom.

For more information about the RuggOn RuggVMC MT7010 Data Terminal or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RuggOn RuggVMC MT7010 Data Terminal, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RuggON RuggVMC MT7010 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
