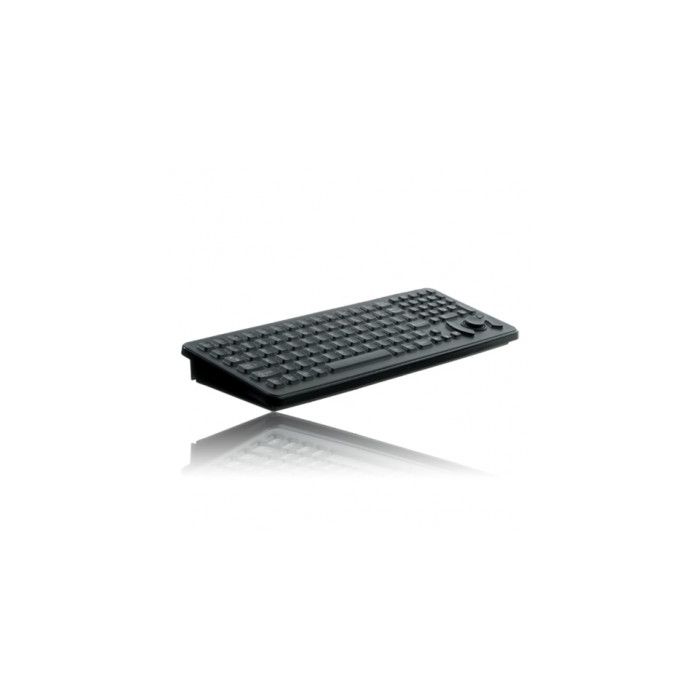

iKey SK-102-461-M Military Grade Rugged Keyboard

The iKey SK-102-461-M Military Grade Rugged Keyboard is designed for demanding military and industrial environments where electromagnetic interference and harsh conditions are present. Built with a reinforced ABS polycarbonate housing, it meets MIL-STD-461 standards for EMI resistance, ensuring stable operation in electrically sensitive settings. The keyboard’s sealed design adheres to NEMA 4X specifications, providing protection against dust, water, and weather exposure, making it suitable for outdoor and rugged field use.

Equipped with a HulaPoint pointing device and a mechanical rubber switch array, the keyboard offers precise control and tactile feedback optimised for continuous-duty deployments. It withstands extreme temperatures from -40°C to +70°C and is shock resistant up to 50g pulses. Rated for over 10 million key actuations and 100% humidity resistant, this model delivers reliable performance and longevity required for rigorous industrial applications. Certified by NEMA 4X UL60950 and FCC Part 15 Class B, it supports both PS/2 and USB interfaces, compatible with various operating systems.

SK-102-461-M Features

  • Designed To Meet MIL-STD-461
  • Integrated Pointing Device
  • Mobile Mounting Case
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

ABS Polycarbonate

Certifications

NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.60" x 5.55" x 1.05" (w-h-d) 370.8mm x 141mm x 26.7mm

Extended Warranty

Available On Request

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m)

Compatibility

PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

102

Pointing Device

HulaPoint

Power

PS/2: KEYBOARD: 50mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port)

Product Weight

1.50 lbs +/- 0.10 lbs (0.68 kg +/- 0.05kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SK-102-461-M Military Grade Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SK-102-461-M supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.

Across these sectors, the SK-102-461-M is typically used in applications such as Emergency Dispatch And Incident Management, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the SK-102-461-M across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SK-102-461-M is appropriate for your specific application, please contact us.

The iKey SK-102-461-M Military Grade Rugged Keyboard comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SK-102-461-M Military Grade Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SK-102-461-M Military Grade Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SK-102-461-M Military Grade Rugged Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SK-102-461-M or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
