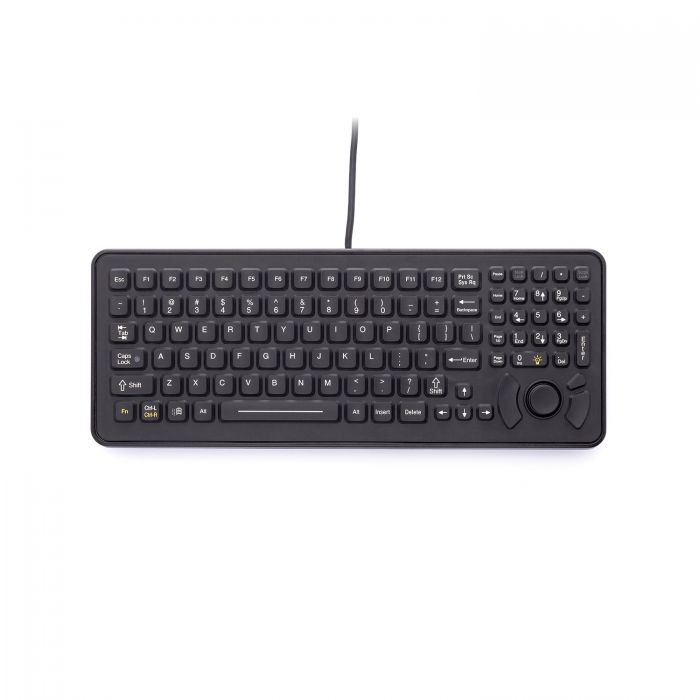

iKey SLK-102-461 Military Grade Backlit Rugged Keyboard

The iKey SLK-102-461 Military Grade Backlit Rugged Keyboard is built around MIL-STD-461 certification, supporting deployments in environments with high electromagnetic interference. Its reinforced polycarbonate case and industrial silicone rubber keys provide reliable tactile feedback with mechanical snap, suitable for field and industrial use. The keyboard meets NEMA 4X standards for dust and weather resistance and offers full humidity protection, making it well suited for harsh and wet conditions. It meets MIL-STD-810G shock and vibration standards and operates between -40 6C and +70 6C, ensuring durability under temperature extremes.

The integrated HulaPoint II pointing device adds versatility without compromising ruggedness. Its 10-foot cable and compatibility with all Windows systems facilitate easy integration in military and heavy-duty industrial applications.

SLK-102-461 Features

  • Designed To Meet MIL-STD-461F
  • 12 Function Keys
  • Full-Size Military Keyboard
  • Integrated Pointing Device
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

IP Rating

Manufacturer

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

NEMA 4X UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

5.55" x 14.60" x 1.05" (w-h-d) 141mm x 370.9mm x 26.7mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10' straight (3 m)

Compatibility

PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06oz (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

102

Pointing Device

HulaPoint

Power

PS/2: KEYBOARD: 210mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 245mA@5V (from CPU port)

Product Weight

1.5 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40F to 194F (-40C to +90C) OPERATING: -40F to +158F (-40C to +70C)

The iKey SLK-102-461 Military Grade Backlit Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The SLK-102-461 supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Oil and Gas, Public Sector, Rail And Transport.

Across these sectors, the SLK-102-461 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, SCADA And Control-Room Access, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the SLK-102-461 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SLK-102-461 is appropriate for your specific application, please contact us.

The iKey SLK-102-461 Military Grade Backlit Rugged Keyboard comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLK-102-461 Military Grade Backlit Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLK-102-461 Military Grade Backlit Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
