iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR

This product has reached End of Life (EOL) status and is no longer in production. Manufacturer support, updates, and spare parts may be discontinued.

All information is provided for reference only. Availability cannot be guaranteed.

Please contact us to discuss current alternatives or recommended replacement models.

The iKey SLP-86-911-461-FSR is built around MIL-STD-461 certification, supporting industrial and defence deployments demanding EMI-hardened input devices. Its rugged design meets NEMA 4X standards for dust and weatherproof sealing, ensuring resistance against moisture and harsh environmental factors. The panel mount format secures the keyboard firmly in place, ideal for fixed installations. Featuring Force Sensing Resistor technology, it provides enhanced sensitivity and long operational life compared to standard pointing devices.

Backlit keys operate reliably under temperatures from -40°C to +70°C, with resistance to 100% humidity. The keyboard also complies with MIL-STD-810 for shock and vibration, confirming durability for continuous industrial use. USB single-cable connection ensures compatibility with Windows and Macintosh systems, while tactile mechanical keys guarantee responsive feedback through over 10 million actuations. The inclusion of an emergency key adds a practical alert function for field use, reinforcing its role as a dependable rugged input solution in demanding conditions.

SLP-86-911-461-FSR Features

  • Designed To Meet MIL-STD-461F
  • Integrated LED Backlighting
  • One-Touch Emergency Key
  • 86-Key Functionality
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Country Of Manufacture

United States

Backlight

Red

Case Material

No Case

Certifications

NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.80" x 6.79" x 1.35" (w-h-d) 299.7mm x 172.5mm x 34.3mm CUTOUT: 10.40" x 5.40" (w-h) 264.2mm x 137.2

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

12 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap

Lifespan

>10 Million Actuations

No. Of Keys

86

Pointing Device

Force Sensing Resistor

Power

PS2: KEYBOARD: 250mA@5V (from PS2 port)

Product Weight

1.75 lbs (0.79 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)

The iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR is designed and engineered for use in demanding environments where reliability, durability are essential. The SLP-86-911-461-FSR supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Public Sector, Rail And Transport, Security And Surveillance.

Across these sectors, the SLP-86-911-461-FSR is typically used in applications such as Emergency Dispatch And Incident Management, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Secure Communications And Command-And-Control.

These examples demonstrate the versatility of the SLP-86-911-461-FSR across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SLP-86-911-461-FSR is appropriate for your specific application, please contact us.

The iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SLP-86-911-461-FSR Military Grade Panel Mount Backlit Rugged Keyboard With FSR, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SLP-86-911-461-FSR or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Stainless steel NEMA 4X housing
    • Sealed IP65 protection against dust and liquids
    • Tactile silicone rubber keys with mechanical snap
    • Certified for hazardous locations EN60079-0 and EN60079-11
    • Stainless steel impact and corrosion-resistant enclosure
    • IP65 and NEMA 4X dust and water protection
    • MIL-STD-810G shock and vibration tested
    • 10 million keystroke durability

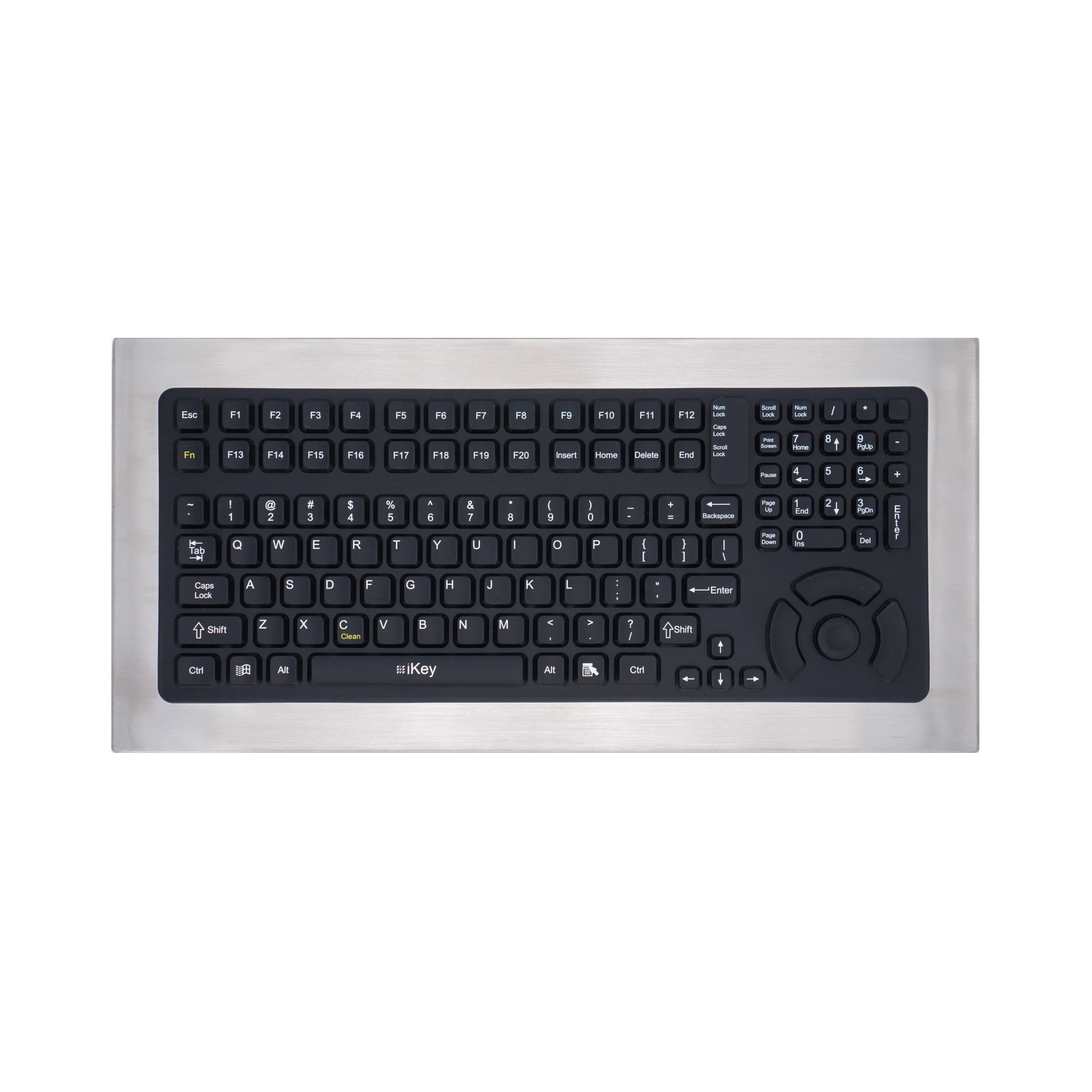

    iKey DT-5K Desktop Rugged Keyboard
