Adder Technology AVSC1102 KVM Switch
The Adder Technology AVSC1102 KVM Switch is built around a secure hardware-based data diode, supporting field-ready environments that require strict isolation between systems. Its robust metal case with electromagnetic shielding offers continuous-duty use while protecting data integrity from emissions and external interference. Designed to handle multiple computers via discrete physical controls, this industrial-grade switch prevents unauthorised channel access, enhancing operational security. Compatible with all major operating systems and connection types such as USB HID and VGA, it integrates seamlessly into diverse deployments.
The unit’s sealed enclosure minimises dust ingress and supports reliable operation within 0 to 40 degrees Celsius. TEMPEST and Common Criteria EAL4+ certifications underline its suitability for secure installations. Tamper-evident seals add an additional layer of assurance against interference, reinforcing its deployment-ready durability and resilience in sensitive environments.
AVSC1102 Features
- Tempest Qualified and Eal4+ Certified
- No Critical Software Reliance
- Minimal Emission Design
- Ideal For Console Sharing, Video Splitting and Resource Sharing
- USB, VGA Interface
- Rack Mountable (4U)
- Available With 2 Port Or 4 Ports
Request a Quote
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
Robust Metal Case
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Additional Accessories
The special cables available for connections to each system are carefully constructed with braid and foil to provide excellent screening against signal emissions that could otherwise be eavesdropped. A similarly constructed cable is also available for the
Case Material
Robust Metal Case
Computer Connections
1 x 6 way mini DIN Female for shared keyboard (Violet) 1 x 6 way mini DIN Female for shared mouse (Green) 1 x 15 way HD D Female for shared monitor (DDC/Blue)
Computer Connections At Switch
2 x USB HID (Keyboard/Mouse), HD-15VGA, 2 or 4 x system link connection, smart card USB
Hardware Compatibility
Compatible with all known platforms featuring VGA video and USB HID or PS/2connectivity
KVM Connections
AVP2 KVM Console connections 2 x 15 way HD D Female for CPU video (DDC/Blue) 2 x 6 way mini DIN Female for CPU keyboard (Violet) 2 x 6 way mini DIN Female for CPU mouse (Green) 1 x 5V DC power inlet for optional 500mA external PSU 1 x Option switches
Local KVM Console Connection
Video: HDD15, Dual-link DVI-D Keyboard/Mouse: 2 x USB type A Switched USB: 2 x USB 2.0 type A Audio: 3.5mm stereo jack
No. Of Ports
2
OS Compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix,BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Physical Design
Compact case, robust metal construction, extensive shielding
Power
100-240 VAC 47/63Hz
Software Compatibility
Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Operating Temperature
OPERATING: 0C to +40C
Ordering Info
AVSC1102-XX: Secure KVM Switch with USB, VGA and Card Reader, 2 port AVSC1104-XX: Secure KVM Switch with USB, VGA and Card Reader, 4 port XX= Mains Lead Country Code: UK = United Kingdom US = United States EURO = Europe AUS = Australia
The Adder Technology AVSC1102 KVM Switch is designed and engineered for use in demanding environments where reliability, durability are essential. The AVSC1102 supports a wide range of industries and operational applications.
Common deployment industries include: Broadcast and Media, Defence And Military, Energy and Utilities, Industrial Manufacturing, Public Sector, Security And Surveillance, Transport And Rail.
Across these sectors, the AVSC1102 is typically used in applications such as Industrial HMI And Machine Interfacing, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Secure Communications And Command-And-Control.
These examples demonstrate the versatility of the AVSC1102 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the AVSC1102 is appropriate for your specific application, please contact us.
The Adder Technology AVSC1102 KVM Switch comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Adder Technology AVSC1102 KVM Switch, must be presented to RUGGED in the United Kingdom.
For more information about the Adder Technology AVSC1102 KVM Switch or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Adder Technology AVSC1102 KVM Switch?
If you have any questions about the Adder Technology AVSC1102 please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
- Compact robust metal case
- Supports 4 computer connections
- 7-seg numerical display with PC99 rear connectors
- 1920 x 1440 high-resolution video support

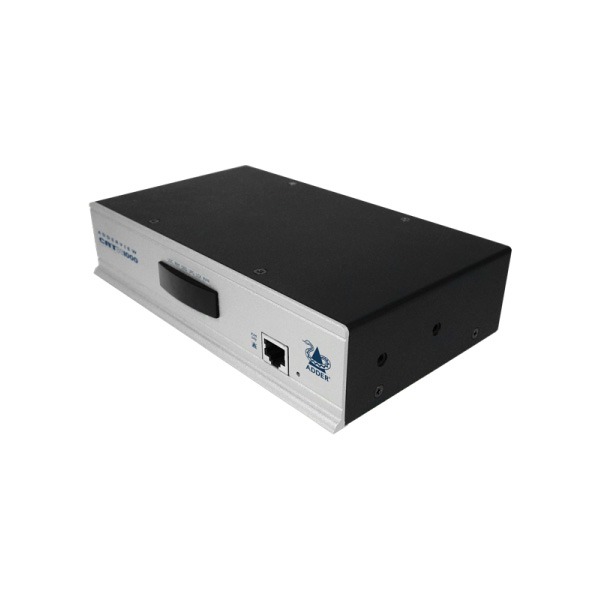

AVX1008
