iBASE BYTEM-123-PC Panel PC
Designed for demanding industrial and transportation environments, the iBASE BYTEM-123-PC Panel PC delivers reliable performance through its rugged aluminium bezel and back cover paired with IP65 ingress protection on the front. It supports stable operation in temperatures ranging from -20°C to 60°C, handling vibrations and humidity effectively, as proven by its MIL-STD-810H and EN50155 certifications. The unit features a 12.1-inch projected capacitive touch display with 350 cd/m2 brightness, suitable for clear visibility in varied lighting conditions.

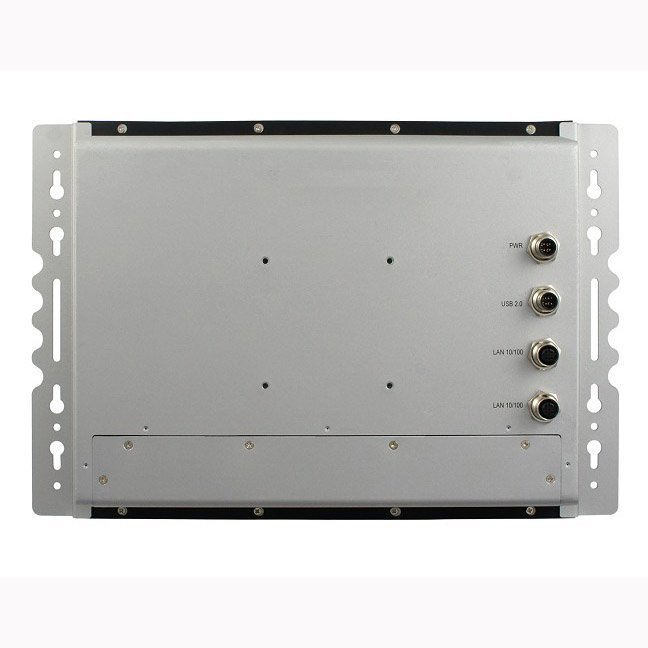

Dual Gigabit LAN ports and multiple M12 connectors ensure secure, vibration-resistant network and power connections vital for continuity on site. Powered by an Intel Atom E3845 quad-core processor with DDR3L memory and a 32GB SSD, the BYTEM-123-PC balances efficient, low-maintenance computing with a VESA 75x75mm mounting compatible with diverse installation needs. The device includes front-side IP65 protection, supports a wide range of DC power inputs, and is compliant with CE and RoHS standards, underscoring its suitability for continuous industrial use.
BYTEM-123-PC Features
- For Railway Application
- EN50155 Certified
- High PerformanCE, Low Power Consumption
- Supports 24V DC (Default) Power Input, Optional 48V Dc, 72V DC & 110V Dc
- Front Panel IP65 Protection and IP54 (Whole Unit)
- Projected Capacitive Touch
- Optical Bonding
Request a Quote
Product Type
Manufacturer
Certifications & Standards
CE, EN 50155, IP65, MIL-STD-810H, RoHS
Ruggedness
IP Rating
Mounting Format
Processor
Operating System
Country Of Manufacture
Taiwan
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
335mm x 267mm x 72.1mm 13.19 x 10.51 x 2.84
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
-25C~40C (-13CF~104CF)
Ordering Info
BYTEM-123-PC "12.1" Projected capacitive touch , panel PC, Intel Atom E3845 1.91GHz processor, DDR3L SO-DIMM 4GB, with 32G SSD ,additional M12 connector for LAN/USB and power input, membrane keypad control for on-off/brightness/volume, 24VDC power input, Front side IP65 and others IP54 with I/O cover. Power adaptor Optional 48V/72V/110VDC power input
Audio
2x speaker
Backlight Lifetime(hrs)
30000
Construction
Aluminum front bezel and back cover
Contrast
33.334027777778
Digital I/O
None
Display Interface
1x DP port
Display Type
12.1ï¾€ï¾ TFT-LCD
Expansion Slot
None
HDD
1x 2.5ï¾€ï¾ SATA II HDD space, easy accessible
Interface
USB
Keyboard/Mouse
None
LAN
2x Gigabit LAN (RJ45) 2x 4-pin M12 D-code connector 10/100 M LAN
Light Transmission (%)
0.9
Luminance (cd/m2)
350 cd/m2
Max. Color
16.7M
Max. Resolution
1024 x 768
Membrane Control
1x Power/Brightness+/Brightness-/Volume+/Volume- Power LED/HDD LED
Memory
2x DDR3L SO-DIMM, up to 8GB, Default DDR3L 4GB(4GBx1)
Mounting
VESA 75x75 mm
Mounting Type Filter
VESA
Onboard Expansion Bus
1x Mini PCI-E(x1) w/ USB signal [half-sized] 1x mSATA/Mini PCI-E(x1) w/ USB signal and mSATA support [Full-sized]
Operating System Support
Windows 8 32/64bit, Windows 7 Pro for Embedded 64bit, WES7 64bit
Point of touch
24V (default) DC input Optinal 48V DC, 72V DC & 110V DC
Power
1x M12 4-pin power input connector
Processor, Chipset
Intel Atom E3845 (Quad-Core @ 1.91 GHz)
Removable Slot
None
Serial/Parallel
1x D-SUB9 RS-232/422/485 COM1
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 3.0 flag type Blue color 1x USB 2.0 Type A flag type 1x 4-pin M12 A-code connector USB 2.0
View Angle (H/V)
170ï¾°/170ï¾°
Processor
Intel
Storage Temperature
-20C~60C (-4CF~140CF)
The iBASE BYTEM-123-PC Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The BYTEM-123-PC supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Rail And Transport.
Across these sectors, the BYTEM-123-PC is typically used in applications such as Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Rail Operations And Wayside Maintenance, SCADA And Control-Room Access, Vehicle-Mounted Computing (MDTs / VMCs).
These examples demonstrate the versatility of the BYTEM-123-PC across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the BYTEM-123-PC is appropriate for your specific application, please contact us.
The iBASE BYTEM-123-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE BYTEM-123-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE BYTEM-123-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
