iBASE IPPC1202-RE Panel PC

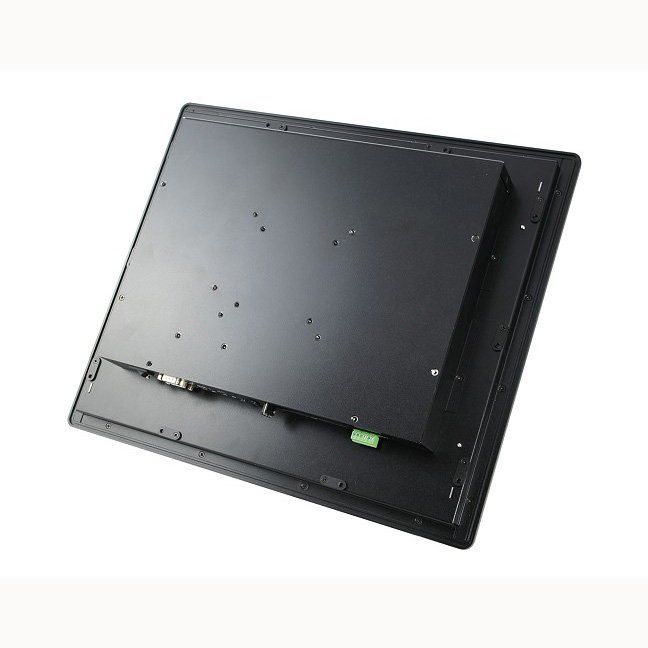

The iBASE IPPC1202-RE Panel PC is built around a reinforced aluminium chassis combining an aluminium front bezel and SGCC back cover, supporting durability and corrosion resistance ideal for industrial field deployment. It is designed to operate reliably across temperature ranges from 0°C to 50°C during use and -20°C to 60°C in storage, fitting continuous-duty industrial scenarios. The device integrates an Intel Atom D2550 processor at 1.86GHz, optimised for embedded computing needs within manufacturing and control environments.

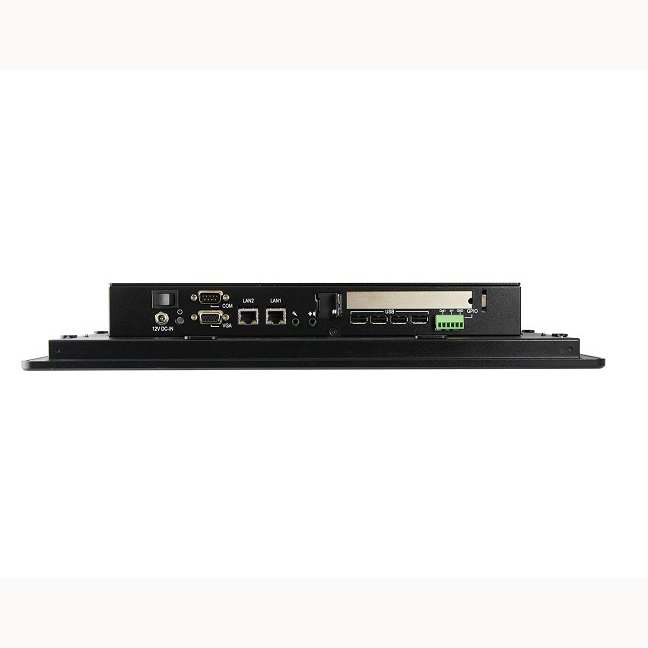

This industrial panel PC features a sealed 12.1-inch TFT LCD with resistive touch, suited to dust-sealed settings for stable interfacing. It offers dual Gigabit Ethernet ports and four configurable COM ports (RS-232/422/485) for flexible system connectivity. The fanless and vibration-tolerant aluminium chassis supports silent and robust operation. With long-life 30,000-hour backlight and options for wireless connectivity, the IPPC1202-RE delivers continuous-duty performance for diverse industrial applications.
IPPC1202-RE Features
- Cost Effective
- Front Panel IP65 Protection
- PCI Expansion With Compact Size
- Long Life Rtc Battery
- Slim & Compact Design
- Projected Capacitive Touch
- Optical Bonding
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Processor
Operating System
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
320 x 270 x 64.2
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C ~ 50C (with SSD) 0C ~ 40C (with HDD)
Ordering Info
IPPC1202-RE 12.1ï¾€ï¾ Industrial Panel PC with IB806-D25S, Intel Atom Processor D2550 1.86GHz, 2GB DDR3 SO-DIMM, 500GB HDD and resistive touch, with 84W
Additional Graphics
VGA
Audio
Mic-in / Line-out
Backlight Lifetime(hrs)
30000
Built-in Speaker/MIC
None
Chassis Material
Aluminum front bezel and SGCC back cover with aluminum heat-sink
Construction
Aluminum Front Bezel & SGCC
Contrast
33.334027777778
Digital I/O
2in / 2out
Display Interface
1x DVI-I
Display Type
12.1ï¾€ï¾ TFT-LCD
Expansion Slot
1x PCI slot
HDD
1x 2.5ï¾€ï¾ SATA
Internal Expansion Bus
1x Mini PCI-E half/full size
Interface
USB
Keyboard/Mouse
None
LAN
2x GbE
Light Transmission (%)
80
Luminance (cd/m2)
350
Max. Color
16.7M
Max. Resolution
1024 x 768
Membrane Control
None
Memory
1x DDR3-1066 SO-DIMM up to 4GB, default 2GBx1
Mounting
Panel Mount and VESA 75x75 and 100x100 mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size *Full-sized MiniPCIe(1x) support mSATA
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
1
Power
Power jack
Power Button
Rock switch
Power Input
12~24V DC input
Power Input Range
12V DC
Processor, Chipset
Intel Atom Processor D2550 1M Cache, 1.86GHz
Removable Slot
None
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
4x COM ports (COM1:RS-232/422/485)
Thermal Design
Fanless
Touch Type
Resistive
Touch Type Filter
Resistive
USB
4x USB 2.0
USB 2.0
4
USB 3.0
0
View Angle (H/V)
170 / 170
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C~60C
The iBASE IPPC1202-RE Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The IPPC1202-RE supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Public Sector, Security And Surveillance.
Across these sectors, the IPPC1202-RE is typically used in applications such as Field Data Capture And Reporting, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the IPPC1202-RE across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the IPPC1202-RE is appropriate for your specific application, please contact us.
The iBASE IPPC1202-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC1202-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC1202-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC1202-RE Panel PC, or would you like to discuss a customised solution?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC1202-RE or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
