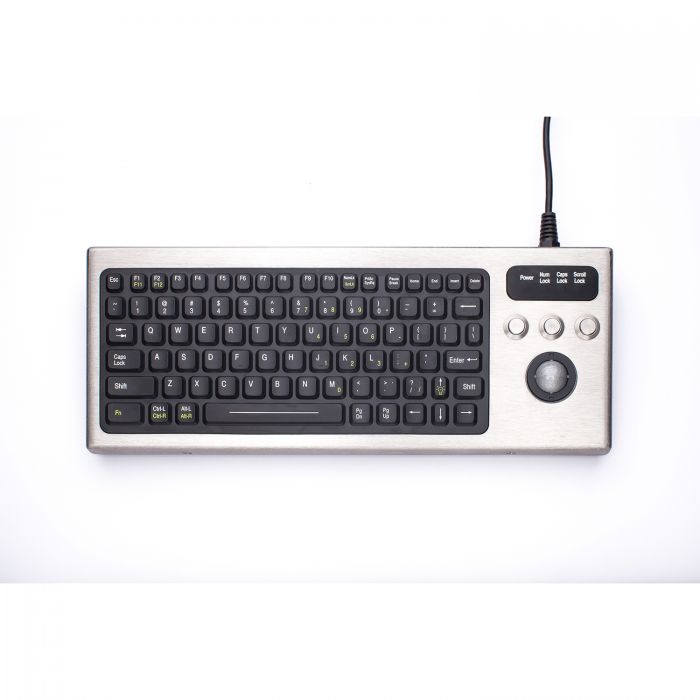

iKey DBL-810-TB Rugged Keyboard With Trackball

For teams working across industrial and field environments, the iKey DBL-810-TB Rugged Keyboard With Trackball offers a sealed, durable input solution. Its stainless steel housing and industrial silicone rubber keys provide resistance to moisture, dust, and mechanical impact. The integrated 25-mm sealed trackball uses stainless steel switches for precise control in continuous-duty settings. Designed to meet NEMA 4X standards, this keyboard resists water and dust ingress, suitable for harsh operational conditions. Compliance with MIL-STD-810G ensures it withstands shock and vibration typical in industrial, military, and outdoor deployments.

The keys feature tactile feedback with mechanical snap and a lifespan exceeding 10 million actuations, supporting extended reliability. With a choice of PS/2 or USB interfaces, it integrates smoothly with various Windows and Macintosh systems. The robust design includes a 10-foot cable and an overlay made from industrial-grade silicone rubber, providing enduring performance and minimal maintenance needs across demanding applications.

DBL-810-TB Features

  • Integrated Green LED Backlighting
  • Fully Sealed 25mm Integrated Trackball
  • Rugged Stainless Steel Case and Keyboard Pad
  • USB and PS2 Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

United States

Backlight

No Backlight

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

14.80" x 5.72" x 1.32" (w-h-d) 376mm x 144.3mm x 33.5mm

Height

(37,5 mm)

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 10 feet (3.05 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or USB cable

Compatibility

PS/2 KEYBOARD/TRACKBALL: All Windows Operating Systems USB KEYBOARD/TRACKBALL: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

10 Keys

Height

(37,5 mm)

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial silicone rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 7.05oz +/- 1.05oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

81

Pointing Device

Trackball

Power

PS2: KEYBOARD: 200mA@5V (from Keyboard port) TRACKBALL: 20mA@5V (from Mouse port) USB: 220mA@5V (from CPU port)

Product Weight

4 lbs +/- .10 lbs (1.8 1kg +/- .05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Length

(117 mm)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +85C (-40F to +185F) OPERATING: 0C to +65C (+32F to +149F)

Width

(65 mm)

The iKey DBL-810-TB Rugged Keyboard With Trackball is designed and engineered for use in demanding environments where reliability, durability are essential. The DBL-810-TB supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Oil and Gas, Rail And Transport.

Across these sectors, the DBL-810-TB is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the DBL-810-TB across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the DBL-810-TB is appropriate for your specific application, please contact us.

The iKey DBL-810-TB Rugged Keyboard With Trackball comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey DBL-810-TB Rugged Keyboard With Trackball, must be presented to RUGGED in the United Kingdom.

For more information about the iKey DBL-810-TB Rugged Keyboard With Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey DBL-810-TB Rugged Keyboard With Trackball, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey DBL-810-TB or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
