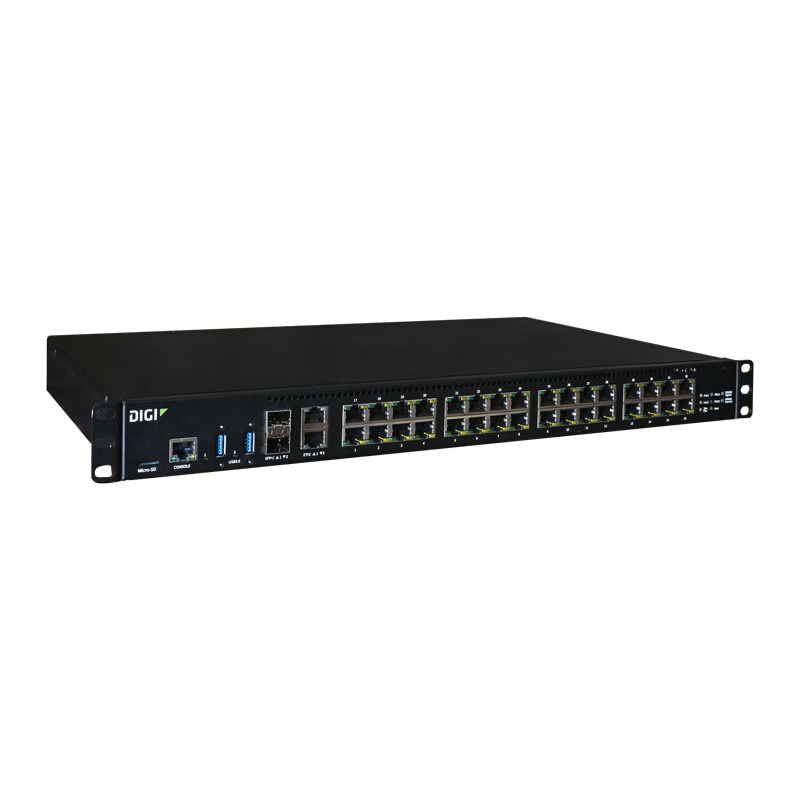

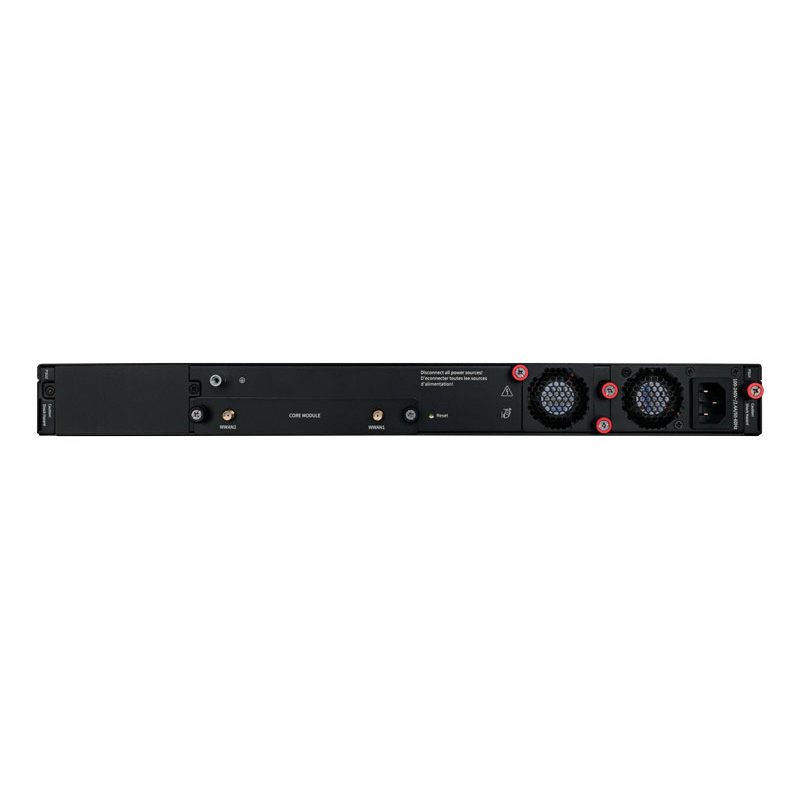

Digi Connect EZ 32 MEI Serial Server
Digi Connect EZ 32 MEI Serial Server is built for operations where scale, reliability, and control are non-negotiable.
Housed in a 1U rack form factor, it delivers 32 software-selectable RS-232, RS-422, and RS-485 ports over dual Gigabit Ethernet, giving you high-density serial-to-IP connectivity across complex industrial systems. Full signal support and flow control in RS-232, differential signalling in RS-422, and long-distance capability in RS-485 ensure seamless integration across mixed protocols.
Under the hood, 256 MB RAM and 4 GB Flash are paired with SFP+ expansion, USB 3.1, and microSD logging, with optional LTE failover to keep you connected when networks drop. Digi TrustFence security provides encrypted communications, advanced authentication, and VPN support including IPsec and OpenVPN, so your data stays protected in the field.
With RealPort COM redirection, serial tunnelling, TCP/UDP connectivity, and a built-in Python environment, you get full control over data handling and integration.
This is high-density, mission-critical serial connectivity for SCADA, automation, and secure industrial networks.
EZ32-C100 Features
- 32-Port RS-232/422/485 Software-Selectable
- Dual 10/100/1000 Ethernet With SFP+ Support
- Built-In Digi TrustFence Security
- RealPort COM Port Redirector
- Optional Digi CORE LTE Module
- Python Environment For Custom Applications
- 5-Year Product Warranty
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Operating System
Country Of Manufacture
United States
Serial Ports
32 x RS-232/422/485 software-selectable (RJ45 10-pin)
Serial Interface
RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI; flow control: XON/OFF, CTS/RTS, RTS-toggle
RS-422 Mode
TX+/-, RX+/-, software termination, pre-delay/post-delay
RS-485 Mode
Data+/Data-, software termination, pre-delay/post-delay
Ethernet
2x 10/100/1000 Mbps
SFP+
2x 10 Gb capable SFP+
USB
2x USB 3.1 Gen 1 (Type A)
Micro SD
SD/SDHC/SDXC socket
Memory
256 MB RAM, 4 GB Flash
Dimensions (L x W x H)
44.5 cm x 25.5 cm x 4.445 cm (17.5 in x 10.4 in x 1.75 in)
Package Weight
5.26 kg (11.6 lb)
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
0°C to 70°C (32°F to 158°F)
Relative Humidity
5% to 95% non-condensing
Power Input
100-240 VAC 50-60 Hz (AC) or 48 VDC (DC)
Authentication
TACACS+, LDAP, Enterprise RADIUS
Safety Approvals
IEC 62368-1, IEC 60950-1, UL 62368-1, UL 60950-1
Emissions & Immunity
CE, FCC Part 15 Subpart B, ICES-003, CISPR 32, CISPR 35
Warranty
5-year for base device
The Digi Connect EZ 32 MEI Serial Server is designed and engineered for use in demanding environments where reliability, durability are essential. The EZ32-C100 supports a wide range of industries and operational applications.
Common deployment industries include: Aerospace, Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Natural Resources and Mining, Oil and Gas, Rail And Transport.
Across these sectors, the EZ32-C100 is typically used in applications such as Asset Tracking And Management, Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Process Control And Shop-Floor Monitoring, Robotics And Autonomous System Control, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the EZ32-C100 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the EZ32-C100 is appropriate for your specific application, please contact us.
The Digi Connect EZ 32 MEI Serial Server comes with a 5-Year For Base Connect EZ Device against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Digi Connect EZ 32 MEI Serial Server, must be presented to RUGGED in the United Kingdom.
For more information about the Digi Connect EZ 32 MEI Serial Server or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Digi Connect EZ 32 MEI Serial Server, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Digi International EZ32-C100 or need a custom Rugged Serial Server solution designed specifically for you, our team of technical experts are ready to assist you.
