iKey-KYB-18-OEM-Keypad

KYB-18-OEM iKey Keypad

DT-18 iKey Keypad

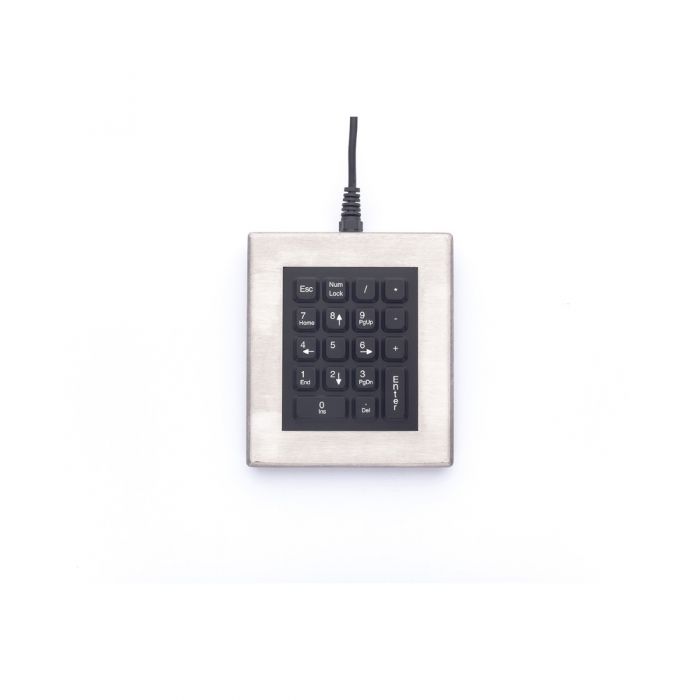

The DT-18 is an 18-key numeric pad that is protected in a stainless steel case and is easily integrated into any system

DT-18 Features

  • Industrial Grade Stainless Steel Case
  • 18-Key Functionality
  • Numlock Key For Secondary Keyboard
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options

Manufacturer: iKey

Availabilty: Est. 5 - 10 Days

DT-18 Keypad Options





The DT-18 is an 18-key numeric pad that is protected in a stainless steel case and is easily integrated into any system.

The iKey DT-18 is designed to meet NEMA 4X specifications. It features navigation keys and the secondary legend can be accessed by pressing the NumLock key. It is also possible to cascade a secondary keyboard if necessary.

Specification
Manufacturer or Brand iKey
Mounting Format Desktop, Free Standing
IP Rating IP66
Interface PS2, USB
Case Material Stainless Steel
Housing Colour Stainless Steel
Backlight No Backlight
Certifications IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B
Temperature Rating STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F)
Humidity 100% Humidity Resistant
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 5.29" x 6.02" x 1.07" (w-h-d) 134.37mm x 152.91mm x 27.2mm
Warranty 1 Year Limited Warranty
Cable LENGTH: 10 feet (3 meters) DESIGN: PS/2 or AT Cable
Certified European Standards EN60079-0:2009, EN60079-11:2007 and EN60529:1991 + A1:2000
Compatibility PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
Entity Parameters Ui = 6.51V, Ii = 730mA, Pi = 1.01W, Ci = 63.23, Li = 2.41uf
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys 12 Keys
Hazardous Location Ratings II 3 G Ex ic IIB T4 Ta = 60, IP65
Key Feedback Tactile with Mechanical Snap
Key Material Industrial Silicone Rubber
Key Switch MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 (1.4 mm) ACTUATION FORCE: 4.74 oz +/- 1.06 oz (135g +/- 5g) FEEDBACK: Tactile with mechanical snap
Lifespan >10 Million Actuations
Mounting Filter Desktop
No. Of Keys 18
Pointing Device No Pointer
Power PS/2: [email protected] (from Keyboard port) USB: [email protected] (from CPU port)
Product Weight 1.75 lbs +/- 0.10 lbs (0.79 kg +/- .05 kg)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force 135g (+/- 5g)
Switch / Key Travel 0.055 in (1.4mm)
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
  • Industrial Grade Stainless Steel Case
  • 18-Key Functionality
  • Numlock Key For Secondary Keyboard
  • USB, PS2 and AT/Serial Configurations Available
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request
The iKey DT-18 is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey DT-18 Keypad are listed below:-

  • Broadcast Consoles
  • Cold Store
  • Factory Floor
  • Helicopter Consoles
  • Industrial Automation
  • Petrol Stations
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iKey DT-18 Keypad The potential applications extend further than those shown above. For further information about the iKey DT-18 Keypad or to check if the product is suitable for your application, please do not hesitate to contact us.
With our highly trained in house technical team and strong relationship with our manufacturers, we can offer numerous options and configurations for the iKey DT-18 Keypad to suit your requirements. These options include:

  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the iKey DT-18 Keypad, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iKey DT-18 Keypad has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iKey DT-18 Keypad, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
