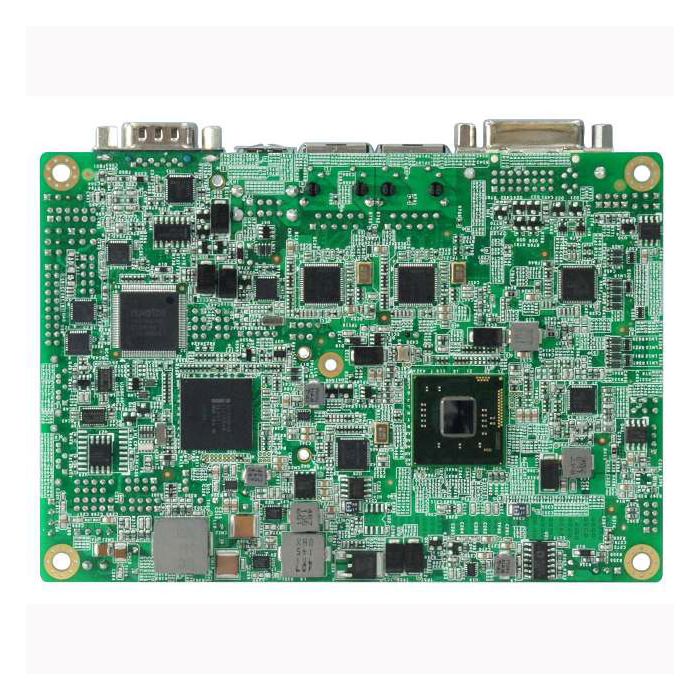

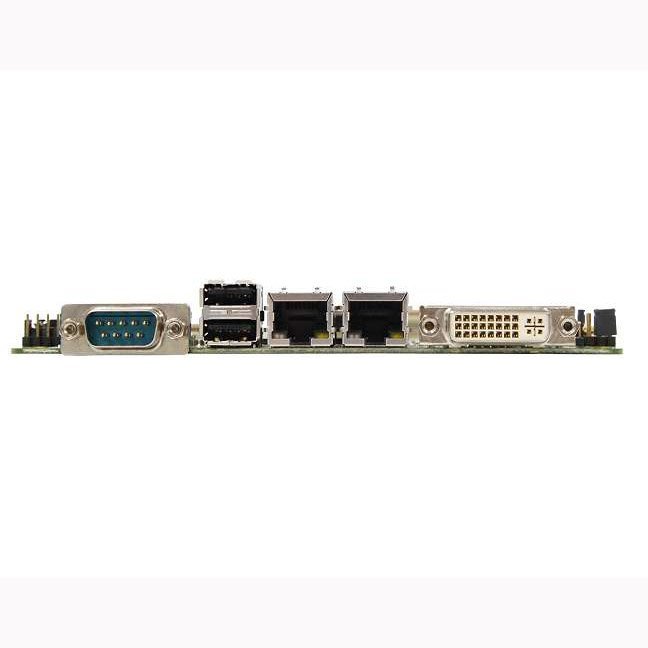

iBASE IB895 Industrial Single Board Computer
Designed for space-constrained industrial applications, the iBASE IB895 Industrial Single Board Computer delivers dependable performance in a compact 3.5-inch form factor. Powered by an Intel Atom processor and the Intel NM10 chipset, it balances processing capability with energy efficiency through iSMART technology. Dual PCI-E Gigabit LAN ports and multiple display options including VGA, DVI-I, and 24-bit dual-channel LVDS provide versatile connectivity for manufacturing, automation, and control environments.
The system supports up to 4GB DDR3 memory and flexible storage via mSATA through its Mini PCI-E slot, adapting to diverse deployment needs. Certified RoHS and CE compliant, the IB895 operates reliably within 0°C to 60°C while resisting humidity up to 90% non-condensing. Its robust design includes impact-resistant soldering, EMI resistance, and a sealed enclosure suitable for electrically noisy and dust-prone industrial settings. With a power input range of +12V to +24V DC, it supports continuous-duty operations in challenging conditions.
IB895 Features
- Original OEM Module
- Rohs Compliant, CE
- Integrated Graphics DeviCE, Gma3650
- With DVI-D, 24-Bit Dual Channel Lvds and Crt Support
- 2X Gigabit Lan
- 2X SATA Ii, 7X USB 2.0, 4X Com, 1X Cfast, Watchdog Timer
- Digital I/O, Isa High Drive, Mini PCI-E Socket
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Processor
Country Of Manufacture
Taiwan
Certifications
RoHS Compliant, CE
Dimensions
102mm x 147mm (4" x 5.8")
Audio
Intel NM10 built-in audio controller w/ Realtek ALC269QHD Codec w/ class-D speaker amplifier
BIOS
AMI
Display Interface
Supports DVI-I and 24-bit dual channel LVDS
Expansion Slots
2x Mini PCI-E (1x half-size, 1x full-size)
Form Factor FILTER
3.5" SBC
H/W Monitor
Yes
I/O Chipset
Nuvoton NCT6627UD 1x KB, 1x Mouse, 3x RS232, 1x RS-232/422/485(jumperless selection), 2x SATA II
LAN Connector
2x RJ-45 on board
LAN Controller
2x Intel 82583V PCI-E Gigabit LAN
Others
Digital I/O, +12V~+24V DC In, iSMART
SSD
mSATA (Thru full-size Mini PCI-E)
System Memory
1x DDR3 SO-DIMM, Max. 4GB (Non-ECC) for IB895 / 2GB (Non-ECC) for IB895N
System Speed
1.86GHz
USB
2 ports on board Pin headers for 4 ports (USB 2.0)
VGA Controller
Intel Atom Processor D2550 / N2600 integrated
VGA Memory
Max. shared memory 224MB
Watchdog Timer
256 levels
Expansion
Mini PCI-E
Form Factor
CPU Card
Humidity
90% Humidity Resistant (non-condensing @ 60C)
Operating Temperature
0C~60C (32CF~140CF)
Ordering Info
IB895 Intel Atom D2550 1.86GHz 3.5-inch Disk Size SBC w/ VGA, DVI & LVDS (24-bit dual channel, dual PCI-E Gigabit LAN, mSATA, iSMART, EuP/ErP compliant IB895N Intel Atom N2600 1.6GHz 3.5-inch Disk Size SBC w/ VGA, DVI & LVDS (24-bit dual channel, dual PCI-E Gigabit LAN, mSATA, iSMART, EuP/ErP compliant HSIB895-BGA Heatsink for IB895 HSIB895-BGA-2 Heat spreader for IB895 IB68 Cable kit for IB895 series, w/ USB, COM, power, SATA + power
Power Input
Single Voltage
Processor
Intel
Storage Temperature
-20C~80C (-4CF~176CF)
The iBASE IB895 Industrial Single Board Computer is designed and engineered for use in demanding environments where reliability, durability are essential. The IB895 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport, Security And Surveillance.
Across these sectors, the IB895 is typically used in applications such as Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Communications And Command-And-Control, Vehicle Diagnostics And Onboard Systems.
These examples demonstrate the versatility of the IB895 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the IB895 is appropriate for your specific application, please contact us.
The iBASE IB895 Industrial Single Board Computer comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IB895 Industrial Single Board Computer, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IB895 Industrial Single Board Computer or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
