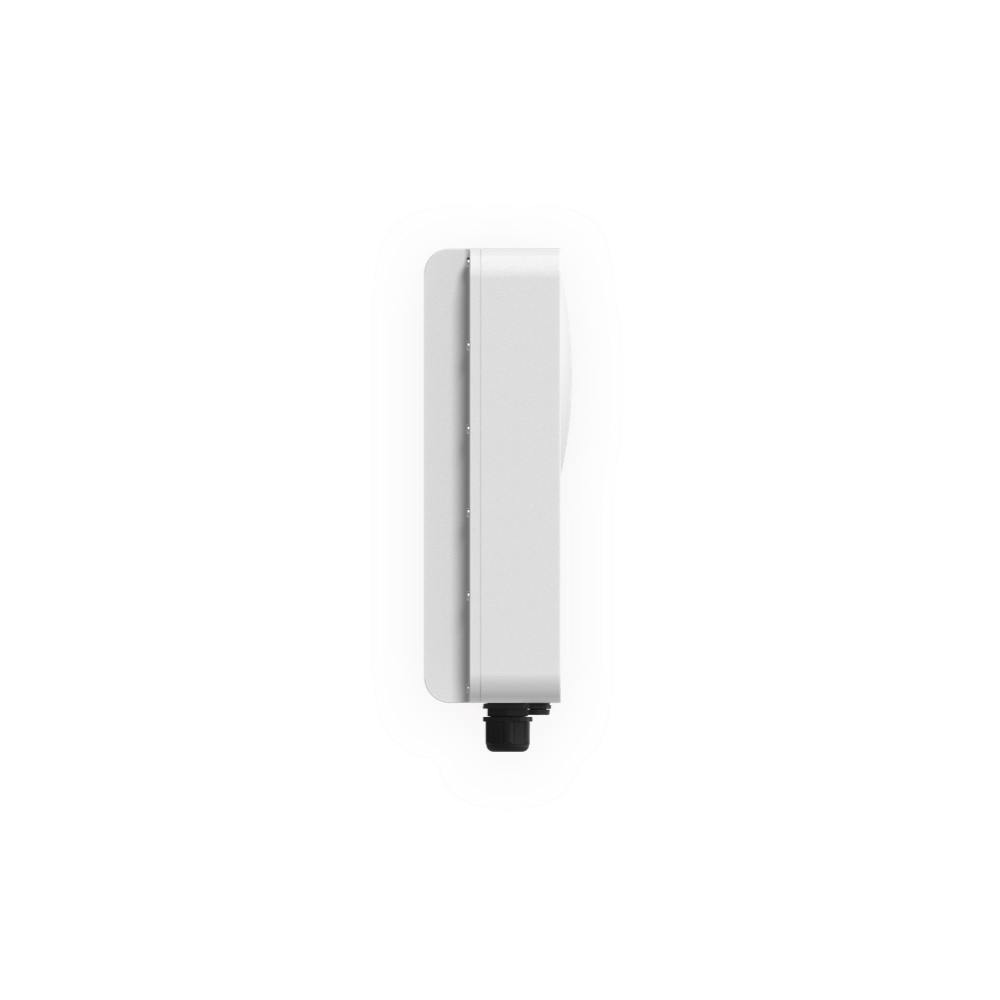

Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router
Whether you â„¢re looking to provide gigabit-speed internet connectivity to a residence, commercial business, or large business office, the Wavemaker 5G outdoor CPE FW2010 series are the high-performance 5G mmWave fixed wireless access solutions you â„¢ve been waiting for.
The FW2010 series outdoor CPEs use high-power mmWave antennas to extend the reach of 5G mmWave and bring high-bandwidth, low-latency connectivity to new use cases and experiences. It also supports 5G sub-6 GHz and Cat 22 LTE, making it great for a wide range of locations with varying network coverage.
The FW2010 series is accompanied by the Inseego Mobile app which helps installers find the optimal location and orientation to mount the device and provides easy access to remotely manage devices settings. The IP67-rated FW2010 series is designed to stand up to harsh weather conditions and temperature extremes while protecting your network with enterprise-grade security.
FW2010 Features
- Rugged IP67 Rated
- Ultra-fast 5G mmWave (Coverage upto 4,35 miles)
- Extended network coverage
- Advanced networking and security
- Device management + Inseego Connect
- Inseego Mobile app
Request a Quote
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
United States
Antenna Connectors
mmWave Antennas • QTM527-1/2 • 64-element phased array • 44-45dBm Min Peak EIRP & LTE/Sub6 Antennas • 3-4dBi, 3.3GHz - 3.8GHz • 2-3dBi, 1.7GHz - 2.7GHz • 0-4dBi, 600MHz – 960MHz
Approvals / Certifications
FCC/GCF/CE/RCM-ACMA • PTCRB/ISED/MIC** • Bluetooth SIG
Box Content
FW2010 Outdoor Router PoE injector (included) SIM tool (included) J-arm mount (optional, sold separately) Wall mount (optional, sold separately) Pole mount (optional, sold separately)
Cellular Connectivity
5G sub-6 GHz and mmWave 4G LTE Cat 22 2X2 MIMO mmWave 4x4 MIMO sub-6 GHz 4X4 MIMO LTE
Certifications
RoHS, WEEE, REACH
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
300mm x 200mm x 90mm, (11.8†x 7.9†x 3.5â€)
Ethernet Ports
(1) 5Gbps Ethernet LAN port
Frequency Bands
5G mmW: n257, n258, n260, n261 • 5G Sub6: n1, n2, n3, n5, n7, n12, n20, n25, n28, n38, n40, n41, n46, n48, n66, n71, n77, n78 • 4G LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Housing Colour
Grey
Management/Troubleshooting Tools
Convenient remote device management capabilities for a single device included, plus tiered upgrade options for advanced device management, monitoring and diagnostics for multiple devices from a single dashboard
Operating Temperature
Minus 20°C to 60°C (-4°F to 140°F)
Power
Power over Ethernet (PoE)
Security Features
3rd party cybersecurity penetration testing verified Security hardened web interface Password hash Anti-CSRF Session timeout Incorrect password lockout
SIM Slots
Nano 4FF SIM slot
Web UI
Systems Supported:- Windows 7, 8, 10 Mac OSX 10.10 or higher Linux Ubuntu 14.04 or higher
WI-FI Clients
Connects up to 128 Wi-Fi Connections
The Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the FW2010 is commonly used:
Industrial and Manufacturing, Outdoor and Mobile Computing, Public Safety and Emergency Services, Transport and Logistics
These examples highlight the versatility of the Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this 5G IoT Router, Rugged Router fits your specific needs, please contact us.
The Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router, must be presented to RUGGED in the United Kingdom.
For more information about the Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Inseego Wavemaker 5G IP67 Outdoor CPE FW2010 Router or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Inseego FW2010 or need a custom 5G IoT Router solution designed specifically for you, our team of technical experts are ready to assist you.
