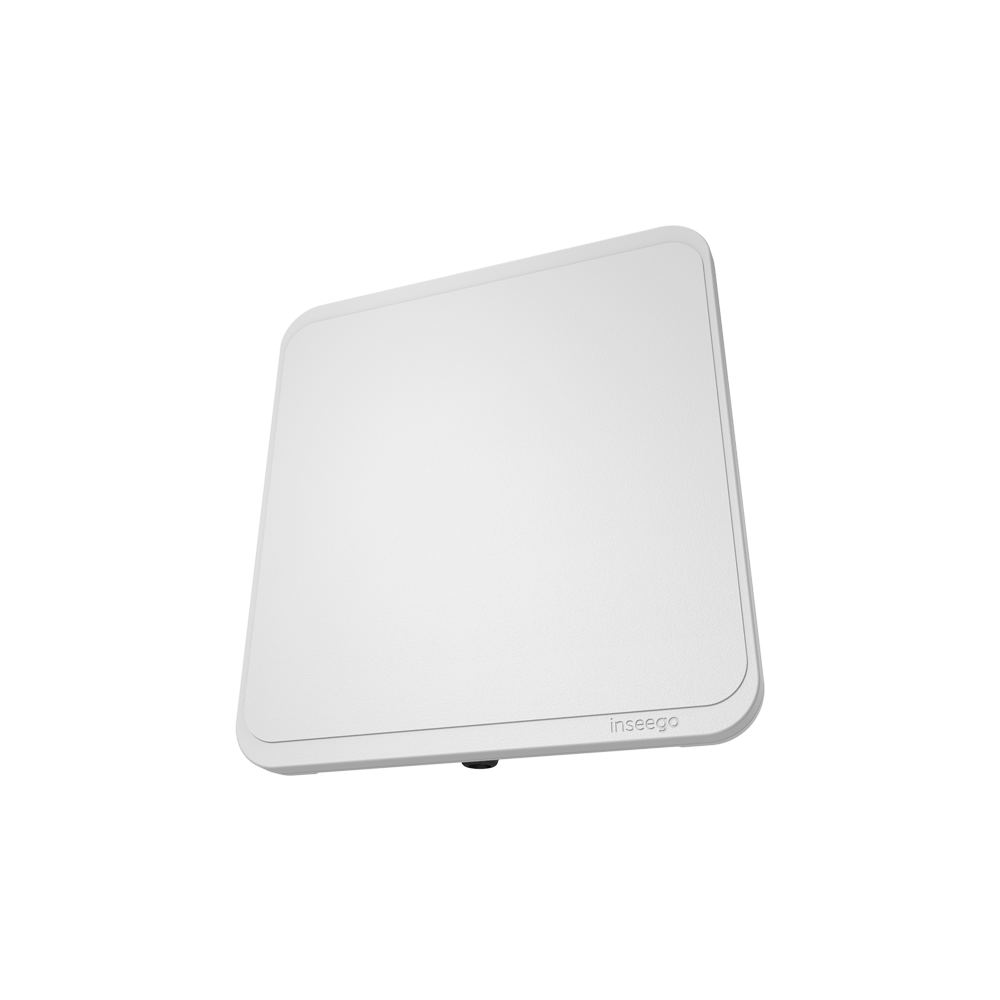

Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router
Designed for outdoor and remote deployments, the Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router delivers field-ready fixed wireless access with robust 5G sub-6 GHz and 4G LTE Cat 22 fallback capabilities. Its Qualcomm Snapdragon SDX55 processor supports extensive connectivity, while the sealed IP67 enclosure protects against dust and water ingress, ensuring reliable operation across a broad temperature range from -30°C to 70°C. Dual SIM slots enable automatic carrier switching to maintain network access in varied environments.
The router includes high-gain directional antennas and supports Power over Ethernet (PoE 802.3bt) for simplified installation. Security features are comprehensive, including verified third-party penetration testing, a hardened web interface, firewall configuration, and session controls. Suitable for industrial and extended outdoor use, the FW2000E is built to maintain consistent wireless access at the network edge, accommodating up to 128 Wi-Fi connections for multiple client devices.
FW2000E Features
- Rugged IP67 Rated
- High gain antennas
- Daul Sim Fast 5G connectivity
- Advanced networking and security
- Device management + Inseego Connect
- Inseego Mobile app
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Country Of Manufacture
United States
Antenna Connectors
14dBi: 3.3GHz - 4.2GHz • 12dBi: 1.7GHz - 2.7GHz • 5dBi: 1.5GHz • 0-4dBi: 600MHz - 1.0GHz
Application Processor
Qualcomm Snapdragon SDX55
Box Content
FW2000E PoE injector (included) SIM tool (included) • J-arm mount (optional, sold separately) • Wall mount (optional, sold separately) • Pole mount (optional, sold separately)
Cellular Connectivity
5G sub-6 GHz 4G LTE Cat 22 4x4 MIMO sub-6 GHz 256 QAM sub-6 GHz
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
430mm x 400mm x 71.7mm (16.9” x 15.75” x 2.8” )
Ethernet
Power over Ethernet (PoE) - 802.3bt Type 3
Frequency Bands
5G NR: n1/n2/n3/n5/n7/n12/n20/n25/n28/n38/n40/n41/n46/n48/n66/n71/n77/n78 4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 Band support varies by regional SKU
Housing Colour
Grey
Operating Temperature
Minus 30°C to 70°C (-22 to 158°F)
Security Features
3rd Party cybersecurity penetration testing verified Security hardened web interface Password hash Anti-CSRF Session timeout Incorrect password lockout IP passthrough Firewall with adjustable settings and rules Port filtering, port forwarding, MAC filtering
SIM Slots
Dual SIM, (2) Nano 4FF SIM slots - Multi-carrier support with auto-switching
Status LED
Power and status LED
Web UI
Systems Supported:- Windows 10 and later MacOS 10.14 and later Linux® Ubuntu 18.04 LTS and later
WI-FI Clients
Connects up to 128 Wi-Fi Connections
The Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router is designed and engineered for use in demanding environments where reliability, durability are essential. The FW2000E supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Rail And Transport, Security And Surveillance.
Across these sectors, the FW2000E is typically used in applications such as Emergency Dispatch And Incident Management, Field Data Capture And Reporting, Mobile Workforce Operations, SCADA And Control-Room Access, Secure Communications And Command-And-Control, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the FW2000E across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the FW2000E is appropriate for your specific application, please contact us.
The Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router, must be presented to RUGGED in the United Kingdom.
For more information about the Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Inseego Wavemaker Pro 5G IP67 Outdoor FW2000E Router, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Inseego FW2000E or need a custom 266 solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
FG2000
- Global 5G sub-6 GHz connectivity
- Wi-Fi 6 with 4x4 MU-MIMO
- AES 256 encryption and VPN support
- Industrial-grade housing with 0°C to 45°C operation

FG2000E
- Dual SIM slots for automatic carrier switching
- Wi-Fi 6 with 4x4 MU-MIMO dual-band
- Industrial-grade sealed housing
- Comprehensive VPN support including IPsec and OpenVPN

FX2000
- 5G sub-6 GHz and 4G LTE Cat 22 radios
- Wi-Fi 6 with 2x2 MU-MIMO supporting 32 devices
- Dual SIM slots for automatic failover
- Reinforced antenna connectors with dust-sealed housing

FW2000E
- IP67 sealed enclosure
- -30°C to 70°C operating temperature
- Dual SIM slots with auto carrier switching
- Power over Ethernet 802.3bt support

Having trouble finding what you're looking for?
Selecting the correct solution for your specific application and operating environment requires careful consideration.
At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.
With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.
Frequently Asked Questions
RUGGED offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team
A VPN router establishes a Virtual Private Network (VPN) connection directly from the router itself, rather than from individual devices. This means that all devices connected to the router, whether via Wi-Fi or Ethernet, automatically benefit from the VPN’s security and privacy features without needing individual VPN client software installed.
This centralisation of the VPN connection simplifies network security, ensuring that all data traffic originating from your network is encrypted and routed through the VPN server. It offers a robust solution for maintaining privacy and securing data transmissions for multiple devices simultaneously, making it an ideal choice for both businesses and individuals seeking comprehensive network protection. Rugged Limited offers a range of rugged routers, engineered for reliable performance in demanding environments, which can be configured to operate as VPN routers, providing secure and stable connectivity.
A VPN router serves to provide a secure and encrypted connection for all devices connected to the network it manages. Instead of installing VPN software on each individual device, a VPN router establishes a single, protected connection for every device, including those that might not support VPN clients natively, such as smart TVs, gaming consoles, or IoT devices. This ensures that all internet traffic leaving your network is encrypted, safeguarding your online activities from potential threats and enhancing your digital privacy.
Rugged Limited offers a range of rugged routers, some of which are designed to support VPN functionalities, providing robust and reliable solutions for secure network deployments in various demanding environments.
In industrial environments, the need for secure and reliable communication is paramount. VPN routers provide a crucial layer of security, safeguarding data transmission across various industrial applications. These devices are designed to operate in challenging conditions, making them ideal for deployments in factories, remote monitoring stations, and other harsh industrial settings.
A key advantage of using a VPN router in an industrial context is its ability to create secure tunnels for data. This is essential for protecting intellectual property, operational data, and confidential communications from cyber threats. Rugged Limited understands these unique requirements and offers robust solutions tailored for such demanding applications.
The integration of a VPN router ensures that industrial control systems, SCADA networks, and remote access points are protected, allowing for secure remote management and data exchange without compromising the integrity or availability of critical infrastructure.
Yes, many of our VPN routers at Rugged Limited are engineered to support cellular connectivity, providing robust and flexible internet access, especially in remote or challenging environments where traditional wired connections may be unreliable or unavailable. This feature allows a VPN router to utilise 4G or 5G networks to establish an internet connection, which can then be secured with VPN technology.
Our solutions cater to diverse operational needs, ensuring that secure network access is maintained regardless of location. For example, our industrial-grade VPN routers are often equipped with multiple SIM card slots and support for various cellular bands, ensuring high availability and seamless failover capabilities. This makes them ideal for applications requiring continuous, secure connectivity, such as mobile command centres, remote monitoring, or temporary site deployments. Explore our range of rugged routers designed for demanding applications.
VPN routers significantly enhance network security by creating an encrypted tunnel for all data traffic leaving your network. This means that every device connected to the VPN router, including those that cannot typically run VPN software themselves, benefits from the security and anonymity of a Virtual Private Network.
Rugged routers often include advanced security features such as firewalls, intrusion prevention, and content filtering, which further protect against cyber threats. The encryption provided by a VPN router safeguards your online activities from eavesdropping, data interception, and other malicious attacks, making it a secure choice for protecting your digital footprint. Our range of secure rugged routers provides robust connectivity with integrated security.
Remote management is a key feature for many VPN router models offered by Rugged Limited, enabling convenient oversight and control from any location. This capability allows administrators to manage network settings, monitor performance, and troubleshoot issues without needing to be physically present at the router’s location.
For instance, some of Rugged Limited’s VPN router solutions support centralized management platforms, which streamline the deployment and maintenance of multiple devices across various sites. This is especially beneficial for large-scale operations or distributed networks. Our range of rugged routers, often equipped with VPN functionalities, are built to support such advanced management features, ensuring reliable and secure remote access for ongoing operations.
A VPN Router offers significant advantages for Internet of Things (IoT) deployments, particularly when it comes to security and centralized management. By routing all IoT device traffic through an encrypted tunnel, a VPN router protects against unauthorised access and cyber threats, which is crucial given the often-limited security features of individual IoT devices.
Furthermore, a VPN Router simplifies network management for IoT ecosystems. Instead of configuring each device individually, all devices connected to the router automatically benefit from the VPN’s security protocols. This ensures consistent protection and allows for secure remote access to IoT devices, which is vital for monitoring and control in various applications.
A VPN router enhances your internet connection by encrypting all traffic flowing through it, offering a secure and flexible network. However, it’s important to understand that a VPN router primarily adds a layer of security and privacy on top of an existing internet connection. It doesn’t inherently provide the internet connection itself in the way fixed broadband does.
For situations where fixed broadband is unavailable or unreliable, solutions such as 4G and 5G routers can act as primary internet sources, providing robust cellular connectivity. When combined with the capabilities of a VPN, such as those offered by a Rugged VPN-enabled router, you gain both internet access and enhanced security for all connected devices. This setup is particularly beneficial for remote sites, mobile deployments, or as a failover for traditional broadband.
Therefore, while a VPN router is crucial for securing your network, its ability to replace fixed broadband depends on whether it’s integrated with a cellular modem or used in conjunction with a separate internet access method.
Inseego is a US manufacturer focused on 5G fixed-wireless access and mobile broadband, and its range on rugged.co.uk centres on the Wavemaker 5G family of routers and gateways plus the Skyus line of rugged cellular USB modems. The Wavemaker portfolio includes indoor routers such as the FG2000, FX2000 and FX2000E, IP67-rated outdoor CPE like the FW2010 and FW2010E, and the S2000E industrial gateway. The Skyus range covers compact LTE and 3G USB modems including the Skyus DS2 and Skyus SC, along with the Skyus 160 IoT gateway. The emphasis is on high-throughput 5G connectivity with cloud-based remote management. Band support, ingress ratings and throughput vary considerably by model, so confirm the specification on the relevant product page.
Yes. Inseego’s Wavemaker range covers both 5G Sub-6 GHz and, on several models, 5G mmWave for the highest throughput. The FW2010 outdoor CPE supports 5G mmWave bands n257, n258, n260 and n261 alongside Sub-6 GHz, using a phased-array mmWave antenna and 4×4 MIMO on Sub-6, with 4G LTE Cat 22 fallback. The S2000E industrial gateway offers Sub-6 GHz only or Sub-6 plus mmWave with up to 200 MHz of bandwidth, dynamic spectrum sharing and LTE Cat 22 fallback. Indoor units such as the FX2000 focus on Sub-6 GHz with Wi-Fi 6. Because mmWave support, band lists and antenna configurations are strictly model-dependent, confirm whether a given Wavemaker model includes mmWave on its product page before ordering.
Several Inseego products are built for outdoor and rugged use, though ratings vary by model. The FW2010 Wavemaker outdoor CPE carries an IP67-rated enclosure with MIL-STD-810G compliance for shock, vibration and temperature extremes, operating from -20 C to 60 C with PoE for simplified installation. The S2000E industrial gateway is rated fully rugged with a vibration-tolerant housing and a -30 C to 65 C operating range. The Skyus DS2 and Skyus SC modems use aluminium and aircraft-grade aluminium casings respectively, with the Skyus SC rated for continuous 24/7 operation from -40 C to 85 C. By contrast, indoor routers such as the FX2000 are rated for milder conditions. Always confirm the ingress rating, temperature range and MIL-STD compliance on the specific product page.
The Inseego Skyus range provides rugged cellular USB modems for adding LTE or 3G connectivity to industrial hosts, edge devices and remote equipment. The Skyus DS2 offers wide-band LTE with dual SMA connectors for cellular MIMO, 300 Mbps download and 50 Mbps upload, an aluminium case and a -40 C to 80 C operating range, connecting over a USB Mini-B interface. The Skyus SC uses an aircraft-grade aluminium enclosure, supports US carrier bands for Verizon and AT&T, and is designed for continuous 24/7 operation with a stated mean time between failures exceeding eight years. Both integrate with the Inseego IoT Connect cloud platform for remote management. There is also the Skyus 160 LTE IoT gateway. As band and carrier support differ by model, confirm coverage on the product page.
Inseego supports its connectivity hardware with cloud-based remote management, branded as Inseego IoT Connect for the Skyus modem range, which provides remote monitoring, configuration and connectivity management for deployed devices. The Skyus SC also includes an onboard connection manager with watchdog functionality to maintain link stability without intervention. Across the Wavemaker router and gateway range, remote device management is provided for single devices, with tiered upgrade options for advanced management, monitoring and diagnostics of multiple devices from a single dashboard. This lets operators run distributed 5G and LTE estates with reduced site visits. Security features on devices such as the S2000E include a cybersecurity agent, encrypted cloud agent and hardened management interface. As the management tier and features depend on the model, confirm details on the relevant product page.
Inseego uses model prefixes to indicate form factor and use case within the Wavemaker range. FX and FG models, such as the FX2000 and FG2000, are indoor 5G routers focused on enterprise and remote-office connectivity, typically pairing Sub-6 GHz 5G with Wi-Fi 6 and dual SIM failover. FW models, including the FW2000E, FW2010 and FW2010E, are IP67-rated outdoor CPE built for external mounting with PoE and MIL-STD-810G durability, several supporting mmWave. The S-series, represented by the S2000E, is a fully rugged industrial 5G gateway with 4×4 MU-MIMO, dual nano-SIM and extensive I/O. Choosing between them comes down to indoor versus outdoor siting and the level of ruggedness required. Confirm bands, ports and ratings on the specific product page.
Inseego devices on rugged.co.uk recur across energy and utilities, industrial manufacturing, logistics and supply chain, rail and transport, marine and offshore, oil and gas, construction, defence, public sector, retail and hospitality. Typical applications include fixed-wireless access, mobile workforce operations, secure communications, field data capture, emergency dispatch, digital signage and temporary or mobile command deployments. The split tends to follow form factor: indoor Wavemaker routers such as the FX2000 suit enterprise and retail sites; IP67 outdoor CPE like the FW2010 serves utilities, surveying and remote infrastructure; the S2000E gateway targets heavy industrial use; and Skyus modems add cellular to vehicles, edge devices and field equipment. As ruggedness and certifications differ by model, match the device to its environment and confirm the rating on the product page.
