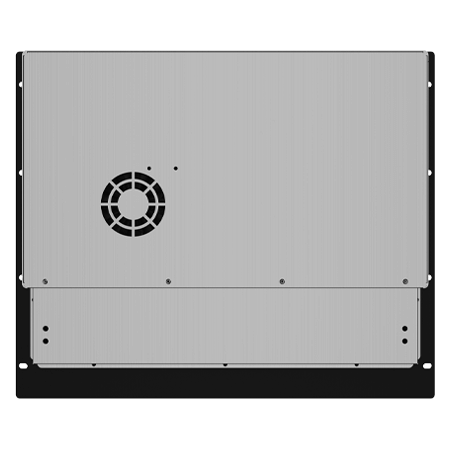

Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC
For teams working across industrial control and data centre environments, the Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC offers a robust solution built for rack installation. Its metal chassis and fan-cooled design ensure reliable heat dissipation and long-life stability under continuous operation. Equipped with Intel Alder Lake S series processors up to Core i9, this model supports intensive processing while maintaining resistance to vibration and shock, suitable for 24/7 deployment. The rack mount format fits standard 7U racks to simplify integration into existing setups without sacrificing ruggedness.
The system’s dust-sealed and ingress-protected enclosure complies with CE and FCC standards, reflecting suitability for demanding industrial conditions. Connectivity is extensive with dual 2.5 Gigabit Ethernet ports and multiple USB 3.2 interfaces, facilitating flexible network and peripheral connections. Security is maintained through TPM 2.0, with compatibility for Windows IoT Enterprise or Linux operating systems. Scalable memory and storage options support sustained performance with minimal maintenance in continuous-use scenarios.
R19IAD7T-RKA1 Features
- 19” 1280 x 1024 Resolution Rack Mount Panel PC
- 12th Gen Intel® Core™ Alder Lake S i9 / i7/ i5 / i3 processor
- 2 x SODIMM, DDR5 4800MHz, support up to 64GB (Max. 32GB for each slot)
- Integrated Dual 2.5 Gigabit Ethernet
- Multi display supports DP 1.4a / HDMI 2.0b (Optional)
- Multiple I/Os, 4 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
19.0 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1280x1024
Panel Brightness
250.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Active Area
376.32x301.06 mm
Processor
Intel® Core™ i5-12500TE(up to 4.3GHz) Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional) Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional) Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional)
Chipset
Intel® R680E
Memory
2 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional) 64GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5" SSD/HDD (Only R680E/Q670E version support)(RAID support) (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
482 x 399 x 89 mm
Weight
6.9 kg
Mounting
VESA mount Rack mount (7U) (Optional)
Enclosure
Metal Housing
Cooling System
Fan Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen2x1 (10Gbps- TypeA) (R680E/Q670E version) 4 x USB 3.2 Gen1x1 (5Gbps- TypeA) (H610E version)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x DP1.4a DP++ - Max resolution up to 4096x2160@60Hz 1 x HDMI 2.0b - Max resolution up to 4096x2160@60Hz (Optional)
Audio
Mic in Line out
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Power Input
1 x 12V DC- Din4 pin connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 220W"
The Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R19IAD7T-RKA1 supports a wide range of industries and operational applications.
Common deployment industries include: Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Public Sector, Rail And Transport, Security And Surveillance.
Across these sectors, the R19IAD7T-RKA1 is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Security And Surveillance Operations, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the R19IAD7T-RKA1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R19IAD7T-RKA1 is appropriate for your specific application, please contact us.
The Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R19IAD7T-RKA1 19 Inch Rack Mount Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R19IAD7T-RKA1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
