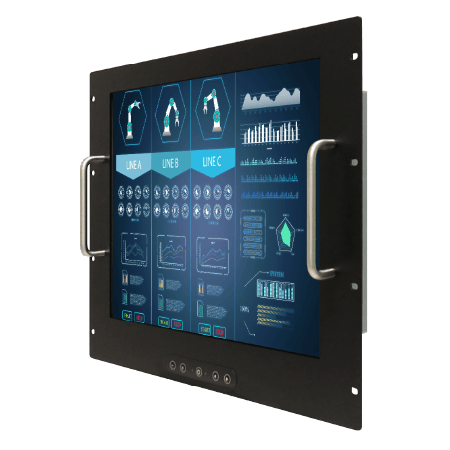

Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor
Winmate R19L300-RKM1 is a 19-inch industrial touch screen monitor built for rugged environments such as control rooms and server installations. It features a metal housing with an aluminium bezel that provides solid mechanical protection while maintaining accurate resistive and surface acoustic wave touch functions suitable for industrial automation. The monitor is sealed against dust ingress and cooled by a fanless system, reducing maintenance demands and enhancing durability during continuous operation in temperatures from 0 aC to 50 aC. Its resolution of 1280×1024 with 250 nits brightness and 1000:1 contrast ratio provides clear visuals, supported by wide viewing angles and accurate display colours.
Connectivity includes USB for touch input, VGA, and optional HDMI or DVI ports, facilitating integration across various industrial workflows. The metal enclosure meets MIL-STD standards, and the device complies with CE and FCC certifications, ensuring reliable electromagnetic compatibility. Operating humidity tolerance from 10% to 90% RH non-condensing further supports deployment in demanding industrial settings.
R19L300-RKM1 Features
- 1280 x 1024 , 19 inch industrial touch screen monitor
- VGA and HDMI input
- Rack mount monitor
- VESA mount
- Rackmount touchscreen monitor
- Rack Console with 19 in LCD
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
19.0 inches
Touch / Glass
Resistive Touch Screen Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional)
Resolution
1280x1024
Panel Brightness
250.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Display Color
16.7M Colors
Active Area
376.32x301.06 mm
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
1 x USB for Touch Screen
Video
1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional)
Audio
Audio line in (3.5mm) (Optional) 2 x Speaker (Optional)
Dimension
482.6 x 399 x 61 mm
Mounting
VESA Mount/Rack Mount
Enclosure
Metal Housing with Aluminum Bezel
Cooling System
Fanless Design
Accessory
1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product)
Optional Accessory
Remote Controller (Optional-Varies by product)
Power Rating
12V DC in 24V DC in (optional)
Button
5 Keys: - - + - Power - Esc - Enter
The Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor is designed and engineered for use in demanding environments where reliability, durability are essential. The R19L300-RKM1 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas, Public Sector.
Across these sectors, the R19L300-RKM1 is typically used in applications such as Construction Site Supervision And Reporting, Environmental Monitoring And Data Logging, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Communications And Command-And-Control.
These examples demonstrate the versatility of the R19L300-RKM1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R19L300-RKM1 is appropriate for your specific application, please contact us.
The Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R19L300-RKM1 19 Inch Industrial Touch Screen Monitor, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R19L300-RKM1 or need a custom Rugged Display solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.

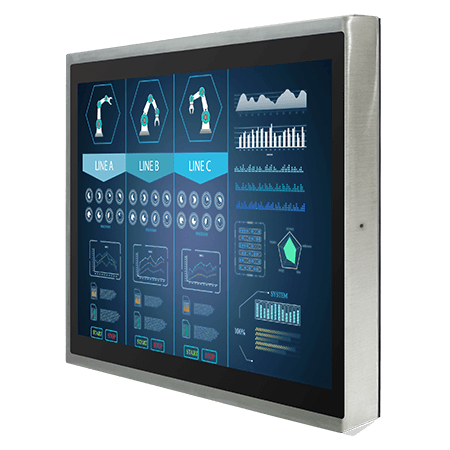

R19L100-SPM169
