RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display
The RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display is built around an IP65-rated front panel, supporting industrial and marine environments where dust and water resistance are essential. Its panel mount design integrates neatly into control systems and machinery, delivering consistent visual output with a 640 x 480 resolution and 400 cd/m2 brightness.
This display offers reliable operation at temperatures from 0C to 40C, enhanced by a vibration-tolerant, impact-resistant structure that suits continuous-duty industrial use. The LED backlight lasts up to 50,000 hours, providing long-term visibility without frequent maintenance. It supports 90 to 260VAC power input, allowing flexible installation across various industrial setups. Connectivity includes a 15-pin D-Sub PC signal input and stereo headphone jack, useful for audio-visual applications within control environments. With a response time under 25 ms and wide viewing angles, this field-ready display ensures clear and real-time monitoring under diverse operational conditions.
RD-0651-IPM Features
- Water-Dust Proof: IP65 Front Side Sealed For Water-Dust Proof
- Integrated Control Panel
- OSD With Multi-Language Support
- Wall Mount VESA Compliant ( 75 X 75 mm)
- Integrated Stereo Speakers
Request a Quote
Product Type
Format
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, UL
Dimensions
245 (W) x 195(H) x 53.2 (D )
Display Accessories Included
AC/DC Power Adapter
Active Display Area
132.48 (H) x 99.36 (V)
Aspect Ratio
0.16875
Backlight Life
50,000 hours (typ)
Connectivity
PC Signal 15 Pin female D-Sub x 1, PC Audio Stereo headphone jack x 1, Power Plug DC Jack x 1
Contrast Ratio
20.83402778
Display Backlight
LED backlight
Display Brightness
400 cd/m2
Display Resolution
640 x 480
Frequency Range
Fh: 30 to 82Khz, Fv: 60 to 75Hz
Input Power
Universal/ Auto-sensing, 90 to 260VAC, 50/60 Hz
Osd Control
No
Pixel Dimension
0.207 (H) x 0.207 (V) mm
Power Consumption
Operation: 12 Watt ( Max ) Stand-by < 5 Watt
Response Time
< 25 ms
Screen Technology
LCD
Screensize
6.5"
Sync Signal
Separate Sync, Composite Sync, Sync on Green
Video Signal
Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Viewing Angle
140 degree in horizontal & 120 in vertical (typ)
Operating Temperature
OPERATING: 0C to +40C
Storage Temperature
STOREAGE: -20C to +60C
Temperature Rating
OPERATING: 0C to +40C / STOREAGE: -20C to +60C
The RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display is designed and engineered for use in demanding environments where reliability, durability are essential. The RD-0651-IPM supports a wide range of industries and operational applications.
Common deployment industries include: Aerospace, Defence And Military, Industrial Manufacturing, Marine And Offshore.
Across these sectors, the RD-0651-IPM is typically used in applications such as Aircraft Cockpit And Avionics Support Systems, Industrial HMI And Machine Interfacing, Marine Bridge And Vessel Control Systems, Medical Carts And Clinical Mobile Workstations, Process Control And Shop-Floor Monitoring, Robotics And Autonomous System Control, SCADA And Control-Room Access, Security And Surveillance Operations.
These examples demonstrate the versatility of the RD-0651-IPM across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the RD-0651-IPM is appropriate for your specific application, please contact us.
The RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display comes with a 1 Year RTB UK Warranty With Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display, must be presented to RUGGED in the United Kingdom.
For more information about the RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RUGGED RD-0651-IPM 6.5″ Industrial Rugged Display?
If you have any questions about the RUGGED RD-0651-IPM please get in touch today, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.
RD-1202-PM
- Panel mount with VESA 75 x 75 mm
- EMI-resistant design for interference-prone environments
- 50,000-hour backlight life for continuous use
- Certified CE and UL for industrial reliability
RD-1042D-S-C
- Dust-sealed impact-resistant chassis
- Wide 140° horizontal and 120° vertical viewing angles
- Long-life 50,000 hour LED backlight
- Wide 0°C to 40°C operating temperature range

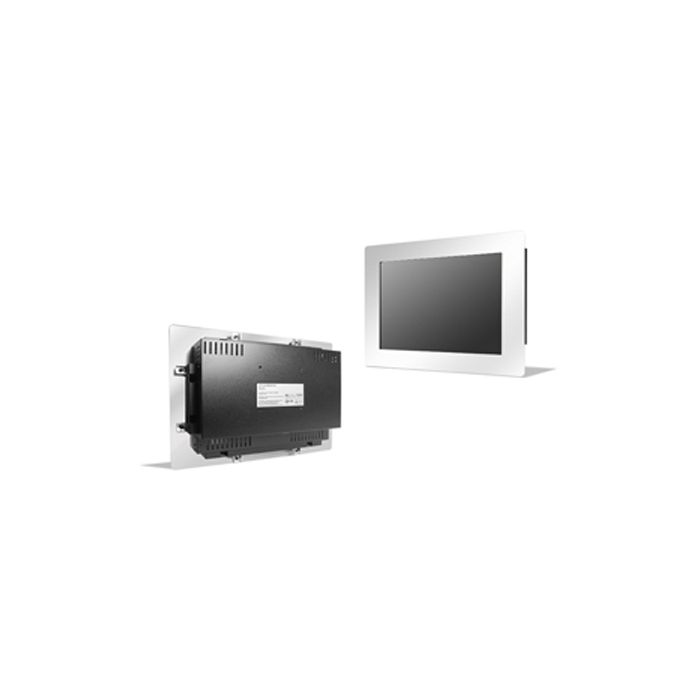

RD-21W2-SPM
- Reinforced stainless steel panel mount
- Sealed construction for dust and temperature resistance
- 35,000-hour LED backlight for continuous-duty use
- MIL-STD vibration and shock compliance

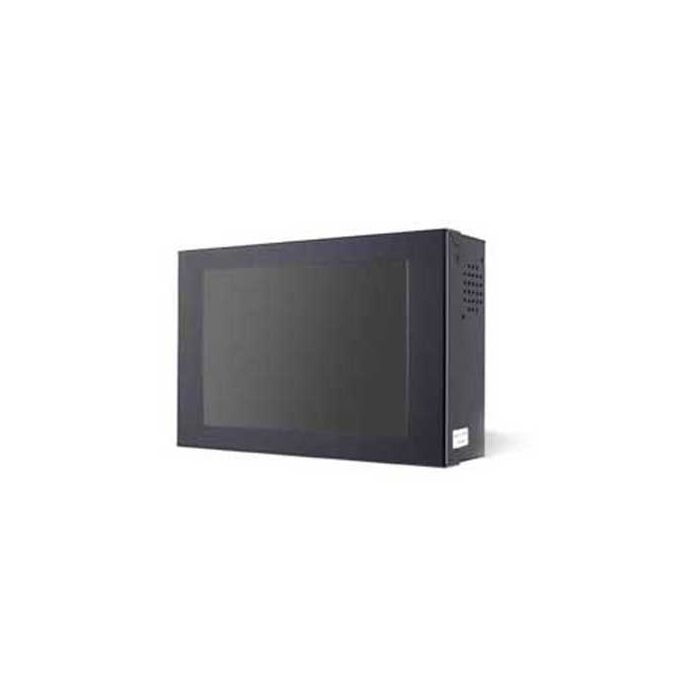

RD-1042-IC
