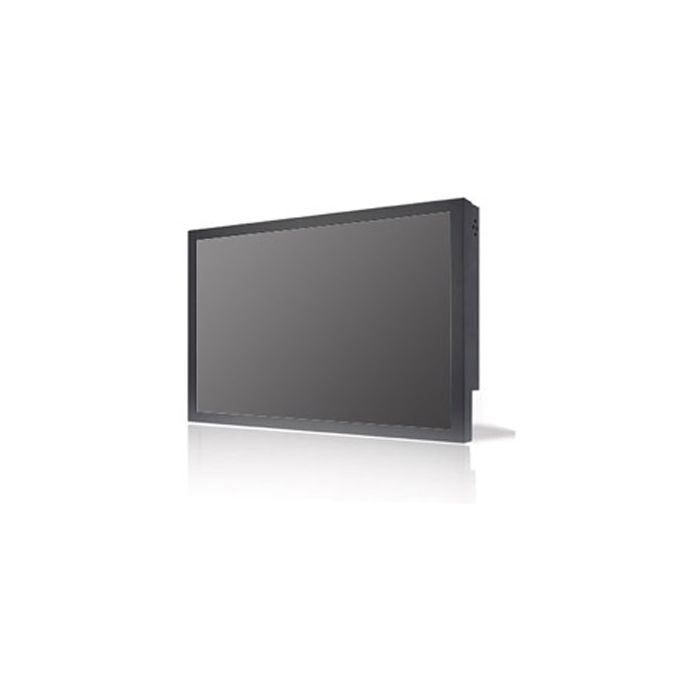

RD-07W2-SPM 7″ RUGGED Display
The RD-07W2-SPM 7″ Wide Stainless Panel Mount LCD Display has a host of features including Wall Mount ready (VESA 75 x 75 mm) ,, to name a few. Designed and built to survive harsh conditions and are perfectly suited for Aerospace , Commercial , Defence , Industrial Consoles , Marine Consoles , Medical Systems , Military , OEM , Radar Applications , System Integrators and other demanding applications. The typical lifetime of an RD-07W2-SPM 7″ Wide Stainless Panel Mount LCD Display is approximately 35,000 hrs (typ).
RD-07W2-SPM Features
- OSD Multi-Languages
- Wall Mount Ready (VESA 75 X 75 mm)
- Wall Mount VESA Compliant ( 75 X 75 mm)
- Integrated Stereo Speakers
- Integrated Stereo Speakers
Request for Quote (RFQ)
Product Type
Format
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Certifications
CE, UL
Dimensions
250.0 (W) x 180.0 (H) x 61.2 (D) mm
Display Accessories Included
AC/DC Power Adapter
Active Display Area
152.4 (H) x 91.44 (V)
Aspect Ratio
0.210416667
Backlight Life
35,000 hrs (typ)
Connectivity
22 Pin female D-Sub x 1, Stereo headphone jack x 1
Contrast Ratio
20.83402778
Display Backlight
LED BLU
Display Brightness
400 cd/m2
Display Resolution
800 x 480
Frequency Range
Fh: 30 to 82Khz, Fv: 50 to 75Hz
Input Power
External AC to 12VDC Adapter
Osd Control
No
Pixel Dimension
0.1905 (H) x 0.1905 (V)
Power Consumption
Operation 12 watt, / <= 2watt
Power Management
DPMS
Response Time
< / = 30ms (G to G)
Screen Technology
LCD
Screensize
7"
Sync Signal
Separate Sync, Composite Sync, Sync on Green
Video Signal
Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Viewing Angle
130 degree in horizontal/ 110 degress in Vertical
Operating Temperature
OPERATING: 0C to +40C
Storage Temperature
STOREAGE: -20C to +60C
Temperature Rating
OPERATING: 0C to +40C / STOREAGE: -20C to +60C
The RD-07W2-SPM 7″ RUGGED Display is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the RD-07W2-SPM is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the RD-07W2-SPM 7″ RUGGED Display across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Display fits your specific needs, please contact us.
The RD-07W2-SPM 7″ RUGGED Display comes with a 1 Years RTB Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, RD-07W2-SPM 7″ RUGGED Display, must be presented to RUGGED in the United Kingdom.
For more information about the RD-07W2-SPM 7″ RUGGED Display or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the RD-07W2-SPM 7″ RUGGED Display?
If you have any questions about the RUGGED RD-07W2-SPM please get in touch today, our team of technical experts are ready to assist you.
