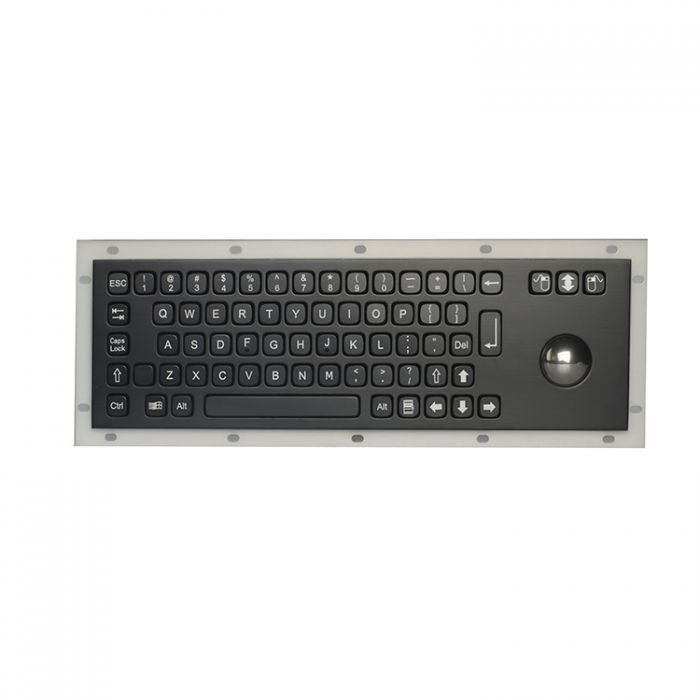

RUGGED RKB-A343TB-BT Industrial Rugged Keyboard

  • IP65 RATED
  • TRACKBALL
  • WIDE TEMPERATURE
  • CUSTOMISABLE
  • DUSTPROOF
  • WATER RESISTANCE
  • MECHANICAL KEYS
  • VANDAL RESISTANT

The RUGGED RKB-A343TB-BT Industrial Rugged Keyboard is built around stainless steel construction and carbon-on-gold key switch technology, supporting reliable input in industrial environments. It features a sealed design with a dust-resistant housing and a 38.0mm trackball that provides multiple sensitivity options from 400 to 1200 DPI, accommodating dynamic control in confined spaces. The keyboard is designed for continuous-duty use with over 10 million key actuations rated for consistent tactile feedback and low noise operation.

The reinforced aluminium mounting plate and silicone rubber seals ensure durability and secure installation within industrial cabinets. Certified to RoHS, CE, and FCC standards, and compliant with IEC 61000-4 electromagnetic compatibility, this keyboard withstands temperatures from -20 6C to +60 6C and humidity between 30-90%. The RKB-A343TB-BT offers an IP65 to IP68 ingress rating, making it suitable for field and factory deployments that require rugged and industrial-grade peripherals.

RKB-A343TB-BT Features

  • Black Industrial Keyboard
  • Rugged Construction
  • Can Be Customised / Modified
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

343.0mm x 105.0mm(front panel), 367.0mm x 129.0mm (back panel)

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Compatibility

All windows, Linux, Unix, Mac OSX

EMC

Compliance with the council IEC 61000-4-2:2008?IEC 61000-4-3:2006+AI:2007+A2:2010?IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 10 Million Actuations

Material (Bottom Plate)

Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

69

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

1.80KGs

Supply Current

appr. 20mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Length

290.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

STORAGE: -30C to +70C OPERATING: -20C to +60C

Width

145.0mm

The RUGGED RKB-A343TB-BT Industrial Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-A343TB-BT supports a wide range of industries and operational applications.

Common deployment industries include: Defence And Military, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Transportation, Warehousing.

Across these sectors, the RKB-A343TB-BT is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the RKB-A343TB-BT across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-A343TB-BT is appropriate for your specific application, please contact us.

The RUGGED RKB-A343TB-BT Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A343TB-BT Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A343TB-BT Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-A343TB-BT Industrial Rugged Keyboard, or would you like to discuss a customised solution?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-A343TB-BT or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
