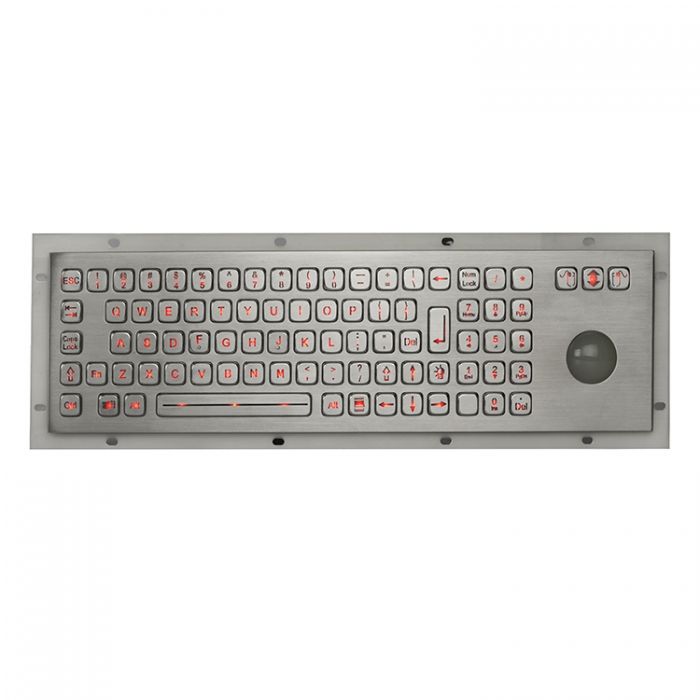

RUGGED RKB-A392-CTB-KP-BL Industrial Rugged Keyboard

RUGGED RKB-A392-CTB-KP-BL is an industrial rugged keyboard built around corrosion-resistant stainless steel construction, tailored for heavy-duty field use in harsh environments. Its brushed stainless steel keys with carbon-on-gold key switch technology provide a 2.0mm stroke for accurate tactile feedback, supported by an IP65 ingress protection rating to resist dust and moisture.

The integrated 38.1mm trackball with three-button functionality enables precise cursor control, enhancing operator efficiency in continuous-duty deployments. Designed to perform reliably between -20 0C and +60 0C, this keyboard withstands challenging conditions with compliance to MIL-STD mechanical standards and IEC 61000-4 series EMC immunity. It offers a lifecycle exceeding 50,000 hours and low-maintenance operation, suitable for industrial and field settings. Certifications including RoHS, CE, and FCC ensure safe integration. The epoxy-filled backlighting on keys supports usability in low-light environments, making it appropriate for control rooms or mobile workstations.

RKB-A392-CTB-KP-BL Features

  • Rugged Panel Mount Keyboard
  • Integrated Trackball
  • IP65 Rated
  • Stainless Steel Construction
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

RoHS Compliant, CE and FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

392.0mm x 110mm

Housing Colour

Stainless Steel

Humidity

30-90% Humidity Resistant

Ball Material

stainless steel

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

EMC

IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

EMI

EN 55022: 2010

EMS

EN 55024:2010

Frontplate Material

Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar

Key Switch

Carbon-on-Gold key Switch Technology

Lifespan

> 5 years

Material (Bottom Plate)

Brushed And Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

84

Operating Force

0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

2.0 KGs

Resolution

400DPI

Supply Current

appr. 30mA

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

2.0mm

Trackball Diameter

38.1mm (1.5’) diameter

Length

392.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C - Storage temperature: -30C to +70C

Width

110.0mm

The RUGGED RKB-A392-CTB-KP-BL Industrial Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-A392-CTB-KP-BL supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas.

Across these sectors, the RKB-A392-CTB-KP-BL is typically used in applications such as Fleet Management And Telematics, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Security And Surveillance Operations, Vehicle-Mounted Computing (MDTs / VMCs), Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the RKB-A392-CTB-KP-BL across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-A392-CTB-KP-BL is appropriate for your specific application, please contact us.

The RUGGED RKB-A392-CTB-KP-BL Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-A392-CTB-KP-BL Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-A392-CTB-KP-BL Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
