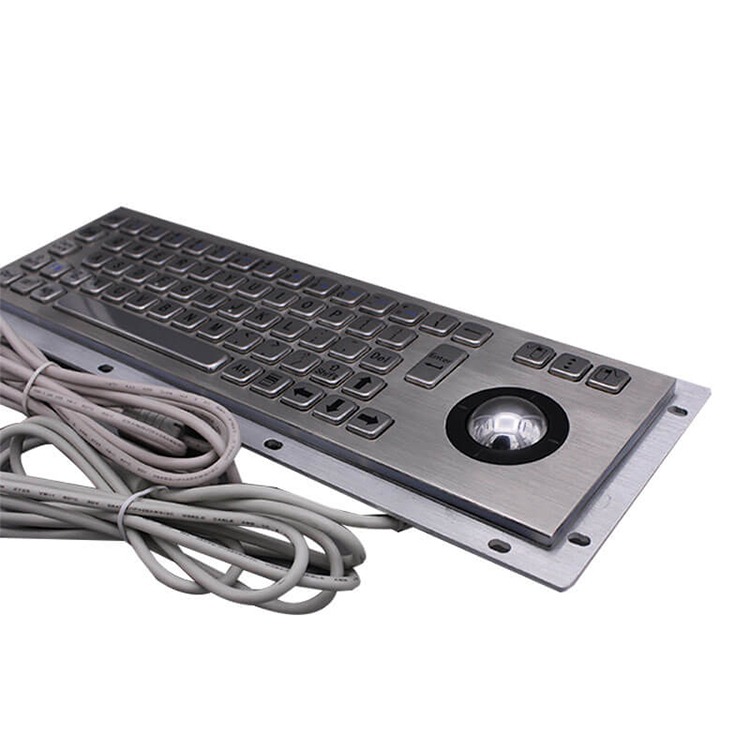

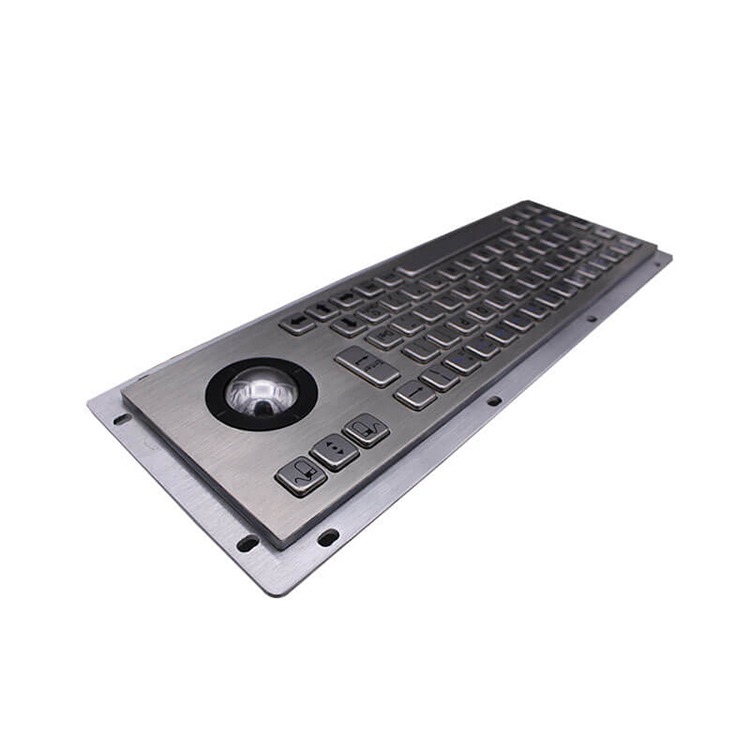

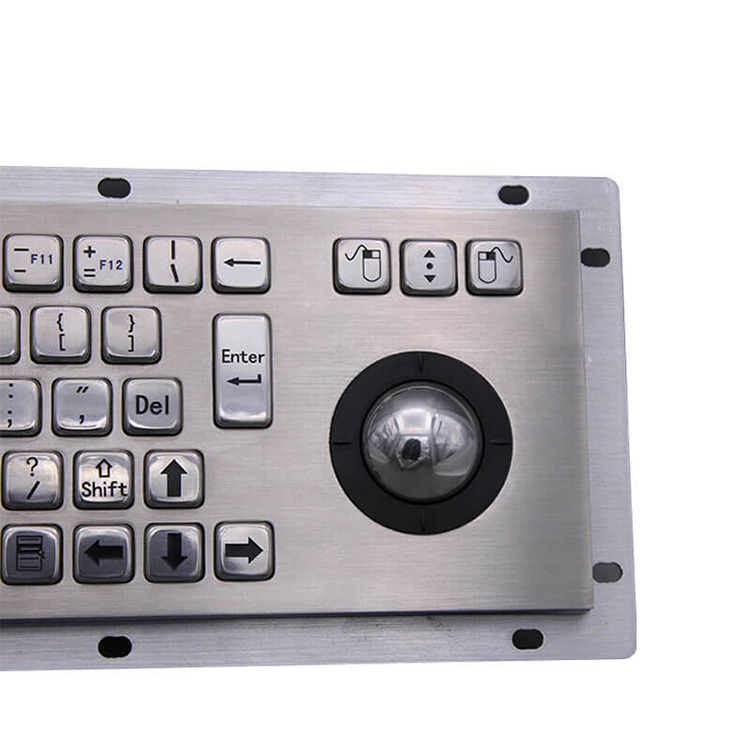

RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball

For industrial and military operators, the RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball provides a robust input solution for challenging environments. Constructed with industrial-grade stainless steel and an aluminium alloy base plate, it offers corrosion resistance and impact durability required in harsh conditions. The sealed design achieves IP65 ingress protection, defending against dust and moisture for dependable use in outdoor and industrial settings. Featuring a 38mm resin trackball integrated within the sealed front panel, the unit enables precise navigation without compromising enclosure integrity.

Designed for extended-duty operation, this panel mount keyboard withstands over 10 million key actuations and vibration frequencies from 20Hz to 2kHz. Its compatibility with USB and PS2 interfaces allows flexible integration across systems. The keyboard supports multiple operating systems including Windows, Linux, and Mac. Certified to CE, FCC, and RoHS standards and operating reliably from -40°C to +70°C, it suits a range of regulated and field-ready deployments needing continuous availability and rugged performance.

RKB-D-8635G Features

  • Industrial Grade Stainless Steel
  • IP65 Rated
  • Rear Panel Mount
  • Integrated Trackball
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

329.8 x 99.8mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Ball Material

Resin Trackball

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

329.8*99.8mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

rack mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

68

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Trackball Diameter

38mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8635G supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Oil and Gas, Transportation and Rail.

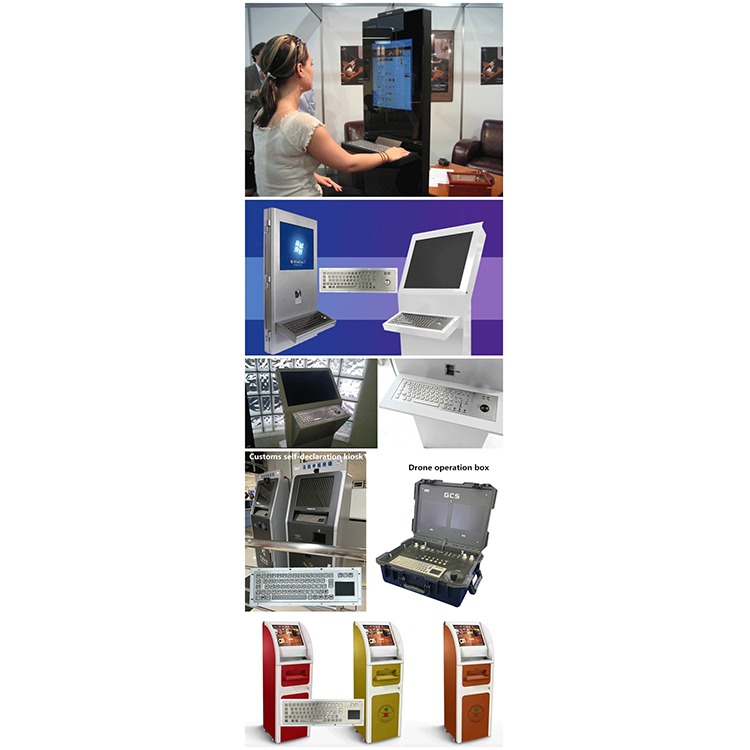

Across these sectors, the RKB-D-8635G is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the RKB-D-8635G across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8635G is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8635G Stainless Steel Keyboard With Trackball, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8635G or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Reinforced stainless steel construction
    • IP65 ingress protection
    • Carbon-on-gold switches with 2.0mm travel
    • MTBF over 50,000 hours
    • Sealed stainless steel housing
    • Trackball with multiple DPI modes
    • Carbon-on-gold keys with 10M actuations
    • IP65 to IP68 ingress protection
    • Stainless steel and aluminium alloy construction
    • IP65 sealed for dust and water resistance
    • MIL-STD vibration and shock tested
    • Over 10 million key actuations lifespan
    • IP65 dust and moisture protection
    • USB and PS2 connectivity
    • Integrated touchpad with 12 function keys
    • Operating range -40°C to +70°C
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    An Ingress Protection (IP) rating is a critical standard for rugged keyboards, specifying the degree of protection provided against dust, dirt, and water. This two-digit code is internationally recognised and helps users understand how well a device can withstand environmental factors.

    The first digit in an IP rating signifies protection against solid objects, ranging from 0 (no protection) to 6 (dust-tight). A higher number here means greater resistance to particles entering the device.

    The second digit indicates protection against liquids, ranging from 0 (no protection) to 9 (withstanding high-pressure, high-temperature jet sprays). This is particularly important for a rugged keyboard that might be exposed to spills, rain, or even submersion. Rugged Limited offers a range of peripherals engineered to meet these demanding standards.

    Rugged Limited specialises in providing industrial-grade solutions, and our rugged keyboards are engineered to withstand harsh operating conditions, including exposure to shocks and vibrations. This resilience is achieved through robust construction and the use of durable materials, ensuring reliable performance where standard keyboards would fail.

    Our selection includes a variety of rugged keyboard types, such as panel mount, desktop, and embedded options, all built with an emphasis on durability. They are designed to meet the rigorous demands of sectors requiring reliable human-machine interfaces that can endure constant motion, impacts, and other challenging environmental factors. Therefore, any rugged keyboard from Rugged Limited is an excellent choice for environments where shock and vibration resistance are critical considerations for uninterrupted operation and longevity.

    Industries such as manufacturing, logistics, military, and public safety frequently utilise rugged keyboards due to their ability to withstand harsh conditions. These keyboards are designed to operate reliably in environments that might involve exposure to dust, liquids, extreme temperatures, or frequent impacts. For example, in manufacturing facilities, a rugged keyboard can endure grease and grime, while in logistics, it can withstand bumps and spills that are common in warehouses and distribution centres.

    The military and public safety sectors also rely heavily on Rugged Limited’s durable input solutions, as their equipment must function flawlessly in critical and often unpredictable situations. Rugged keyboards provide the necessary resilience for field operations, emergency services, and vehicle integrations where standard keyboards would quickly fail. Their robust construction ensures continued performance, contributing to operational efficiency and safety in these challenging fields.

    Rugged Limited offers a range of durable keyboards, and while the exact level of environmental protection can vary by model, many of our rugged keyboards are engineered to withstand exposure to liquids.

    These robust input devices are often designed with features to prevent water ingress, making them suitable for industries where spills, splashes, or wash-downs are common. For specific details on the waterproof ratings of a particular rugged keyboard, it’s always best to consult the individual product specifications.

    Rugged keyboards are specifically engineered to withstand various forms of abuse, including vandalism. This resistance is achieved through robust construction using materials like stainless steel or industrial-grade silicone, which can endure impacts, sharp objects, and attempts at key removal.

    Features such as sealed casings protect internal components from dust, dirt, and liquids, which can often be part of vandalisation attempts. Additionally, some models incorporate reinforced keys and tamper-proof mounting options to deter and prevent damage. When looking for a durable input solution, a rugged keyboard offers significant protection against vandalism, making it ideal for public access terminals, industrial settings, and other environments where durability is paramount.

    Rugged Limited provides a range of these highly durable and vandal-resistant rugged keyboards designed for long-lasting performance in challenging conditions.

    Absolutely, rugged keyboards are engineered to be highly compatible and functional with kiosks and Human Machine Interfaces (HMIs). These environments often require input devices that can withstand continuous use, potential spills, dust, and even vandalism. Rugged Limited provides a range of rugged keyboard solutions that are purpose-built to meet these stringent demands.

    Our rugged keyboards feature durable construction, often including stainless steel or silicone, and are designed to offer protection against liquids and particulates. This makes them an ideal choice for public-access kiosks, industrial control panels, and other HMI applications where standard keyboards would quickly fail. The robust design ensures consistent performance and a long operational lifespan, reducing maintenance needs and improving user experience in challenging settings.

    Rugged Limited understands the importance of durability in demanding environments, which is why our rugged keyboards are often built with chemical resistance in mind. This feature is crucial for industries where keyboards are regularly exposed to harsh cleaning agents, disinfectants, or other industrial fluids.

    Our rugged keyboards are frequently constructed from materials and with designs that prevent the ingress of liquids and corrosive substances, ensuring continued functionality and longevity. This chemical resistance contributes to the overall robustness and reliability of the keyboard, making it suitable for sectors such as healthcare, manufacturing, and food processing, where hygiene and exposure to various chemicals are common.

    The ability of a rugged keyboard to withstand such exposure means less downtime for cleaning and maintenance, and a longer operational lifespan, providing excellent value for our customers.

    Rugged Limited specialises in providing industrial peripherals that are engineered to withstand harsh conditions, making a rugged keyboard an ideal companion for industrial PCs. These keyboards are built to offer durability and consistent functionality in environments where standard office equipment would quickly fail.

    Our rugged keyboards are developed for high compatibility and robust performance, ensuring they can stand up to the demands of various industrial settings. They are designed to prevent contamination from dust, dirt, and liquids, which are common in many industrial applications. Some models also feature backlight options, crucial for low-light conditions often found in industrial environments, and integrated pointing devices to streamline operations.

    The construction and features of a rugged keyboard from Rugged Limited are perfectly matched to the operational requirements of industrial PCs, providing a reliable and long-lasting input solution.
