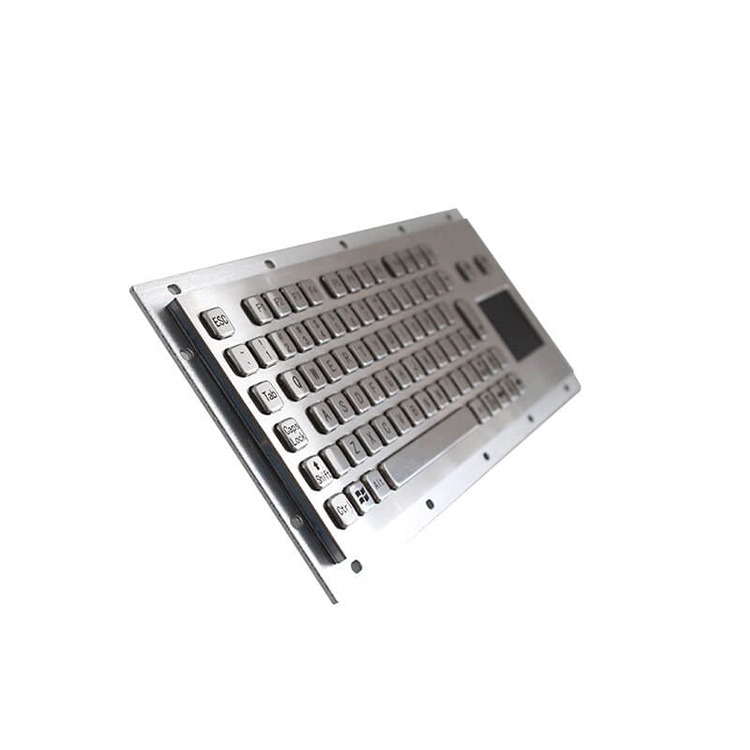

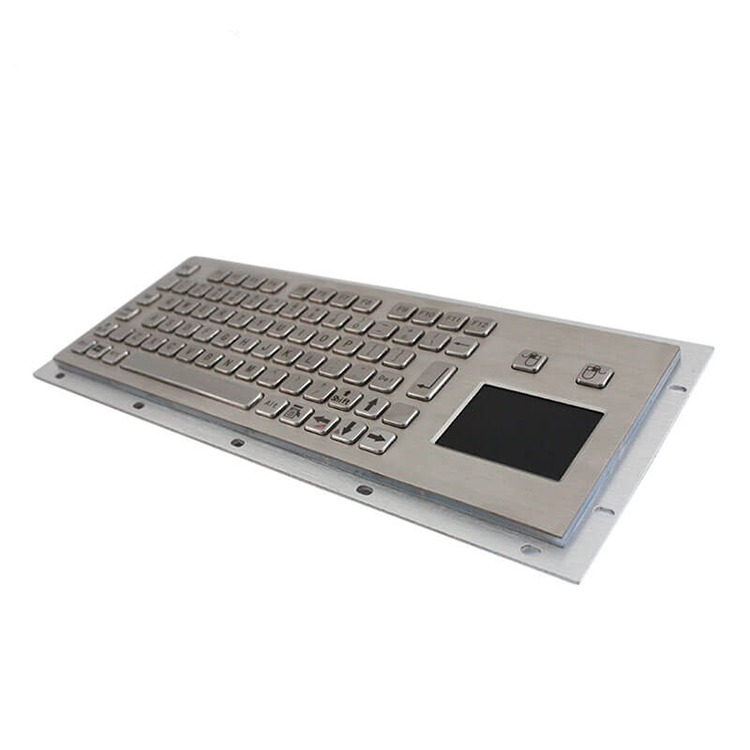

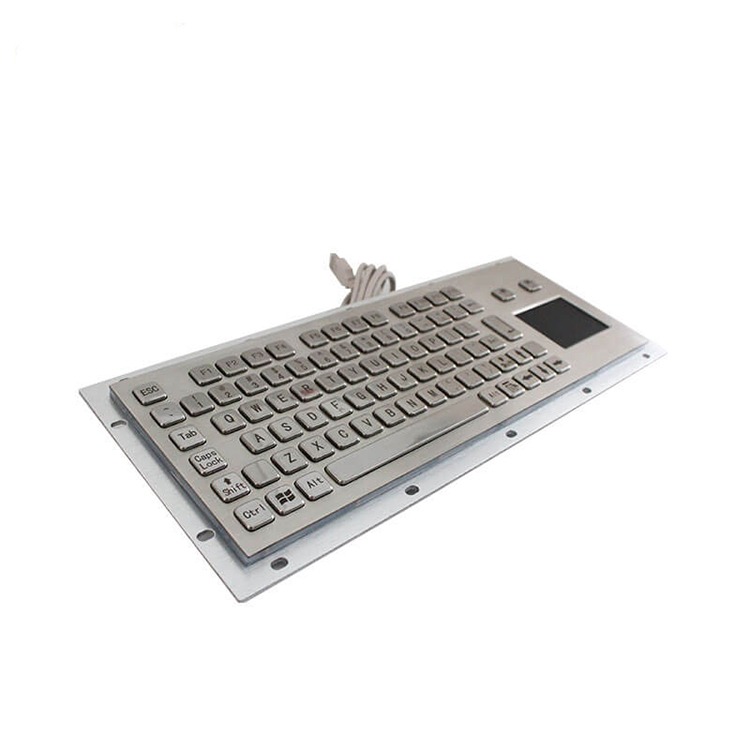

RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad

RUGGED RKB-D-8669 is an industrial metal keyboard designed for demanding environments where durability and reliability are essential. Its construction uses industrial-grade stainless steel and an aluminium alloy base plate to provide robust corrosion and wear resistance. The keyboard accommodates panel mounting, enabling secure installation in a wide range of industrial or transportation settings. It features a sealed touchpad integrated in an impact-resistant housing suitable for continuous-duty use in dusty or wet conditions.

This keyboard supports USB and PS/2 connectivity, compatible with multiple operating systems including Windows, Linux, and Mac, enhancing its adaptability. The RKB-D-8669 meets IP65 ingress protection, ensuring resilience against dust and water ingress. It also complies with CE, FCC, and RoHS standards for quality and environmental safety. Vibration tolerance testing confirms its performance under sustained mechanical shock and vibrations, supporting reliable operation in field and vehicle deployments operating over a temperature range from -40°C to +70°C.

RKB-D-8669 Features

  • Industrial Grade Stainless Steel
  • IP65 Rated
  • Rear Panel Mount
  • Suitable for Industrial & Public Environments
  • Various Keyboard and Language Layout Options
  • UK RTB Warranty

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Operating System

Country Of Manufacture

China

Case Material

Stainless Steel

Certifications

CE, FCC, RoHS Compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

343 x 125mm (front panel)

Extended Warranty

Available On Request

Function Keys

12 Keys

Housing Colour

Stainless Steel

Base plate Material

Aluminum Alloy

Case Material

Stainless Steel (front panel) and Aluminum Alloy

Certified European Standards

CE, FCC, RoHS Compliant

Colour

Stainless Steel

Compatibility

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10 Linux, Mac,etc

Connectivity

USB or PS2 (optional)

Dimensions

343*125mm (front panel)

Frontplate Material

Industrial Grade Stainless Steel

Function Keys

12

Key Switch

Carbon Contact Technology

Lifespan

>10 Million Actuations

Material (Bottom Plate)

Aluminum Alloy

Mounting Type

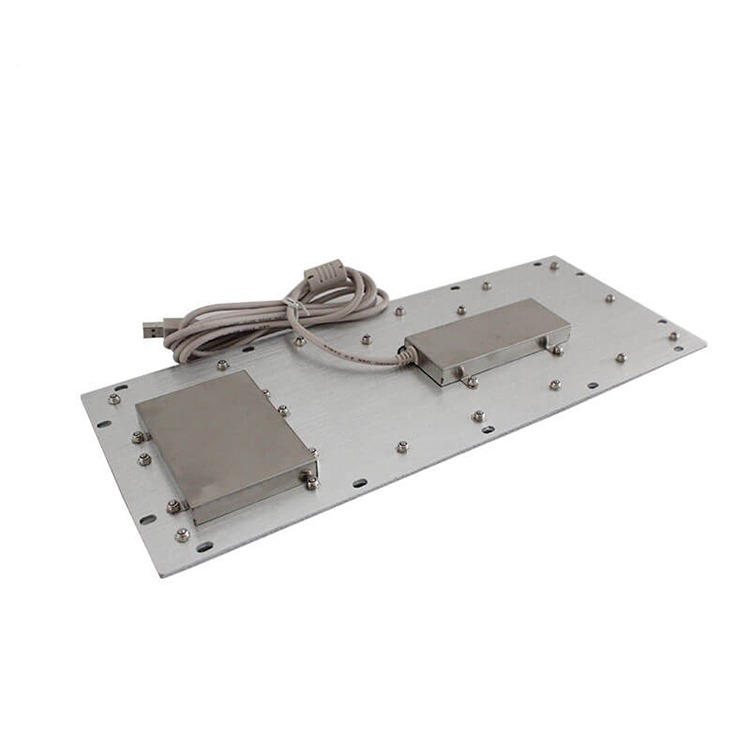

Rear Panel Mount

MTBF

>50000H

MTTR

<30min

No. Of Keys

79

Pointing Device

Touchpad

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Lifetime

Lifespan > 5 years

Operating System

IOS,Linux,Windows,Windows 10 IOT

Operating Temperature

OPERATING: -40C to +70C (-40F to +158F)

Storage Temperature

STORAGE: -50C to +80C

The RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D-8669 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.

Across these sectors, the RKB-D-8669 is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals.

These examples demonstrate the versatility of the RKB-D-8669 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D-8669 is appropriate for your specific application, please contact us.

The RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D-8669 Industrial Metal Keyboard With Touchpad, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D-8669 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
