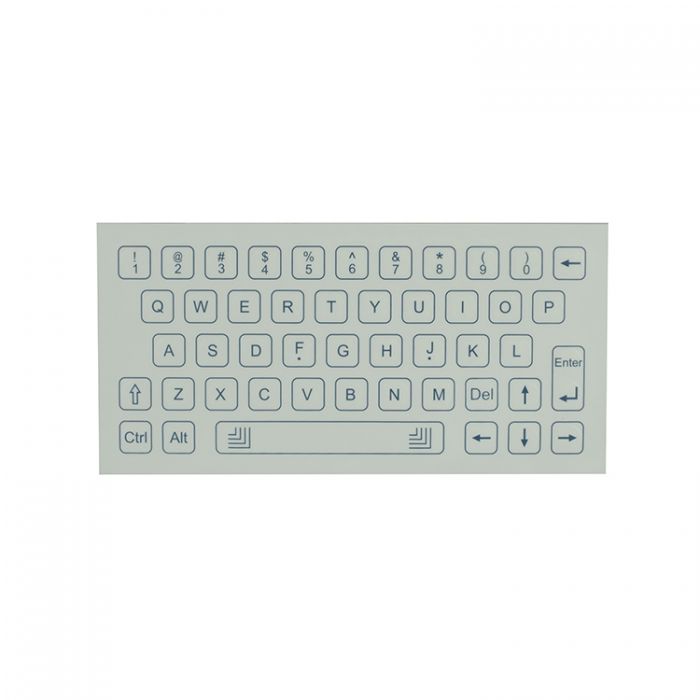

RUGGED RKB-D224 Industrial Rugged Keyboard

Designed for industrial environments, the RUGGED RKB-D224 Industrial Rugged Keyboard offers a sealed design with IP65 protection for washdown cleaning. The keyboard’s metal dome PCB with gold-on-gold switches guarantees tactile consistency and long life, suitable for intensive use in moist or contaminated conditions. Its corrosion-resistant aluminium backing plate resists scratching and chemical attack, ensuring durability over time. With a 47-key layout including a lockable clean mode, it supports ongoing maintenance without disconnection.

This keyboard operates reliably from -20°C to +60°C and meets EMC standards EN55022 and EN55024, preventing electromagnetic interference in industrial settings. The robust design achieves over 50,000 hours MTBF and enables rapid recovery under 30 minutes, reinforcing its suitability for continuous industrial operations. Compatibility spans all major operating systems, including Windows, Linux, and Mac OSX, powered by +5V DC for consistent performance. The stainless steel casing enhances physical protection against impacts and wear, making it a practical solution for harsh field conditions.

RKB-D224 Features

  • Rugged Panel Mount Keyboard
  • IP65 Rated
  • IP67 Rated
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

China

Case Material

Membrane

Certifications

RoHS , CE, FCC, ESD

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

224.0mm x 110.0mm

Housing Colour

Stainless Steel

Humidity

90% Humidity Resistant

Ball Material

stainless steel

Compatibility

All Windows, Linux, Unix, Mac OSX, Vxworks, Android

EMC

EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003

EMI

EN 50081-1

EMS

EN 50082-1

Frontplate Material

1.5mm Thickness Super Quality Brushed Stainless Steel

Key Material

Stainless Steel

Key Spacing

12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key

Key Switch

Gold-on-Gold key Switch Technology

Lifespan

> 3 years

Material (Bottom Plate)

3.0mm Thickness Brushed & Oxidized Aluminium

MTBF

>50000H

MTTR

<30min

No. Of Keys

47

Operating Force

2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Pointing Device

Trackball

Power

+5V DC +/-5% appr. 20mA

Product Weight

2.00KGs

Resolution

+400 DPI

Supply Current

20mA (non-backlight), 140mA (with backlight on)

Supply Voltage

+5V DC +/-5%

Switch / Key Travel

1.5mm

Trackball Diameter

38.0mm

Length

224.0mm

Operating Temperature

Operating temperature:-20C to +60C

Storage Temperature

Storage temperature: -30C to +70C

Temperature Rating

Operating temperature:-20C to +60C (industrial level)-40C to +85C Storage temperature: :-30C to +70C (industrial level)-55C to +150C

Width

110.0mm

The RUGGED RKB-D224 Industrial Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The RKB-D224 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Offshore Operations, Oil and Gas.

Across these sectors, the RKB-D224 is typically used in applications such as ATEX And Hazardous-Area Data Capture, Cold-Chain Compliance Monitoring, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access.

These examples demonstrate the versatility of the RKB-D224 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the RKB-D224 is appropriate for your specific application, please contact us.

The RUGGED RKB-D224 Industrial Rugged Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, RUGGED RKB-D224 Industrial Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the RUGGED RKB-D224 Industrial Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the RUGGED RKB-D224 Industrial Rugged Keyboard, or would you like to discuss a customised solution?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the RUGGED RKB-D224 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
