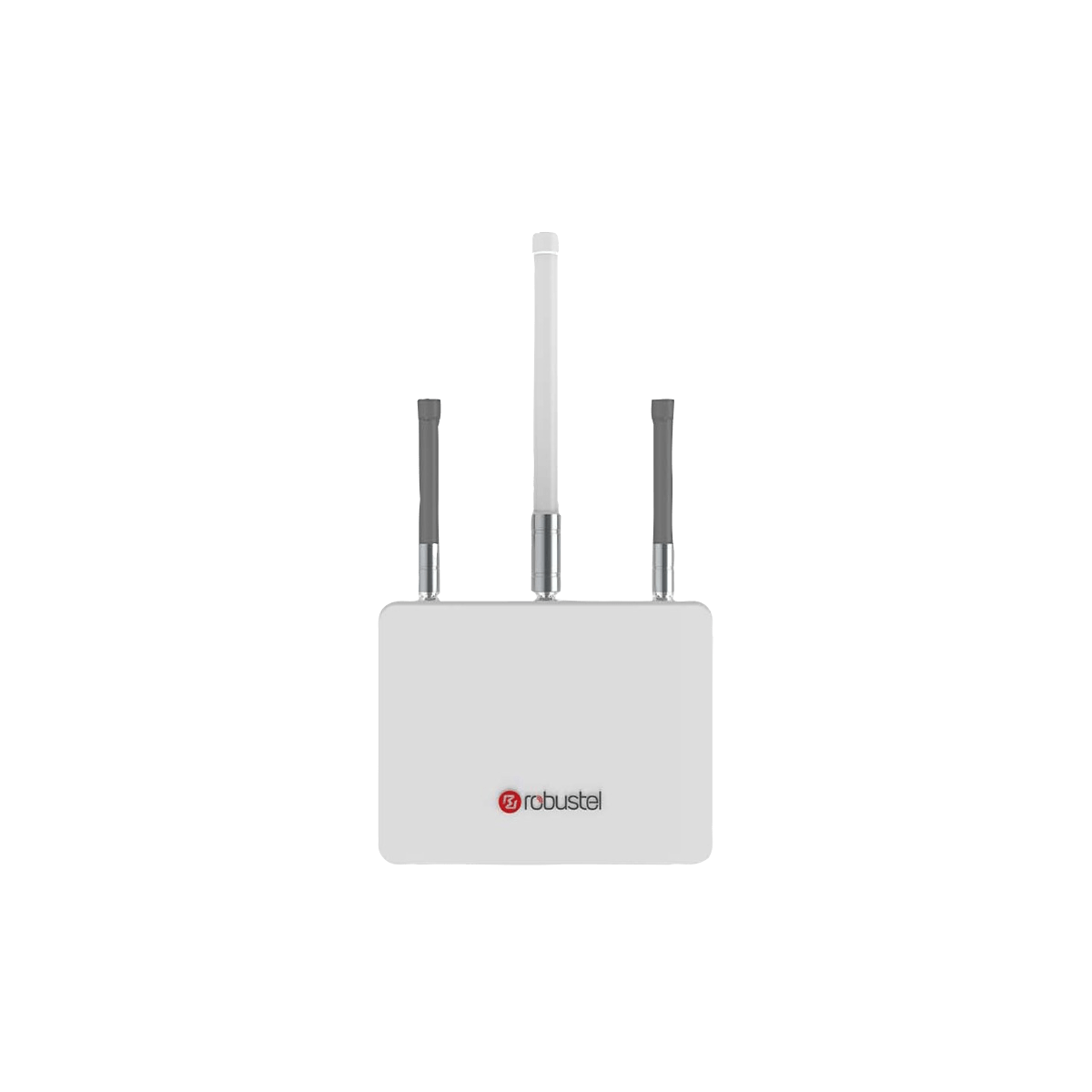

Robustel R3000 IP67 Outdoor LoRaWAN Gateway
The Robustel R3000 IP67 Outdoor LoRaWAN Gateway is built around a rugged plastic housed design, supporting industrial and agricultural outdoor networks with robust durability and continuous operation. Its IP67-rated enclosure provides comprehensive protection against dust and moisture, reinforcing resilience in harsh weather conditions. The gateway features dual 4G LTE cellular connectivity with smart roaming and dual M12 Ethernet ports, enabling versatile network deployment and strong cellular backup. Compliance with CE, FCC, and RoHS standards along with MIL-STD-810G vibration resistance attest to its reliability under field stresses.
LoRaWAN protocols with extended reception capacity and a 15 km communication range support local network traffic management, assisted by a built-in LoRaWAN Network Server to reduce external bandwidth needs. Power over Ethernet (PoE) compatibility ensures flexible installation options on site. Its multiple security protocols, including firewall and VPN tunnels, cater to industrial networking demands. Overall, the R3000 gateway combines field-ready sealing, reinforced construction, and smart connectivity for dependable long-term use in continuous-duty environments.
R3000LG-OG Features
- Supports global LoRaWAN ISM frequency bands
- Compatible with LoRaWAN and private protocols
- Compatible with any LoRaWAN Network Server
- Up to 8 channels supports receive data simultaneously
- RobustOS Operating System with extensive SDK
- Backhaul option supports 3G, 4G and Ethernet
- Supports dual SIM + Smart Roaming for high availability cellular Comms
- IP67 ingress protection withstanding water, dust and other extreme weather conditions
- PoE power – single cable installation
Request a Quote
Product Type
Manufacturer
Certifications & Standards
CE, FCC, IP67, MIL-STD-810G, RoHS
Ruggedness
IP Rating
Mounting Format
Country Of Manufacture
China
Antenna Connectors
2 (MAIN + AUX)
Approvals / Certifications
CE , RCM, FCC, RoHS 2.0, WEEE
Available Apps
lm_csq, Preferred PLMN, RCMS, LoRiot, L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language
Case Material
Rugged Plastic
Cellular Connectivity
2G/3G/4G
Cellular Connectors
M16, female
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
Dimensions
310 x 245 x 93.4 mm
Ethernet Ports
2 x 10/100 Mbps - M12, 4Pin&8Pin
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
GNSS Connector
SMA-K with 50 ohms impedance (inside)
GNSS Horizontal Position Accuracy
GPS: 5 m, Acquisition sensitivity GPS: greater than -148 dBm
GNSS No. of Antennas
1
Housing Colour
White
LoRa Antennas
1
LoRa Communication Range
15 km
LoRa Connector
M16, female
LoRa Max Sensitivity
-142 dBm
LoRa Max TX Power
+24.5 dBm
LoRa Reception Capacity
Supports 8 channels, and each channel can receive data simultaneously Supports 1 MHz bandwidth demodulation
LoRa Standards
863-870 MHz (Europe) 470-510 MHz (China) 915-927 MHz (Australia) 902-928 MHz (North America) 920-928 MHz (Japan)
Management/Troubleshooting Tools
Web, CLI, SMS
Power Consumption
Idle: 4W Data link: 12W (peak)
Power Input
PoE IEEE 802.3af/at Class A/B, 36V-48V
Protocols
LoRaWAN protocols V1.0 Class A/Class C and V1.0.2 Class A/Class C
SIM Slots
2 (3 V & 1.8 V)
Network Protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN Tunnel
IPsec, OpenVPN, GRE
The Robustel R3000 IP67 Outdoor LoRaWAN Gateway is designed and engineered for use in demanding environments where reliability, durability are essential. The R3000LG-OG supports a wide range of industries and operational applications.
Common deployment industries include: Agriculture, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Outdoor Operations.
Across these sectors, the R3000LG-OG is typically used in applications such as Environmental Monitoring And Data Logging, Field Data Capture And Reporting, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Communications And Command-And-Control.
These examples demonstrate the versatility of the R3000LG-OG across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R3000LG-OG is appropriate for your specific application, please contact us.
The Robustel R3000 IP67 Outdoor LoRaWAN Gateway comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R3000 IP67 Outdoor LoRaWAN Gateway, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R3000 IP67 Outdoor LoRaWAN Gateway or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R3000 IP67 Outdoor LoRaWAN Gateway, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Robustel R3000LG-OG or need a custom LoRaWAN Gateway solution designed specifically for you, our team of technical experts are ready to assist you.
