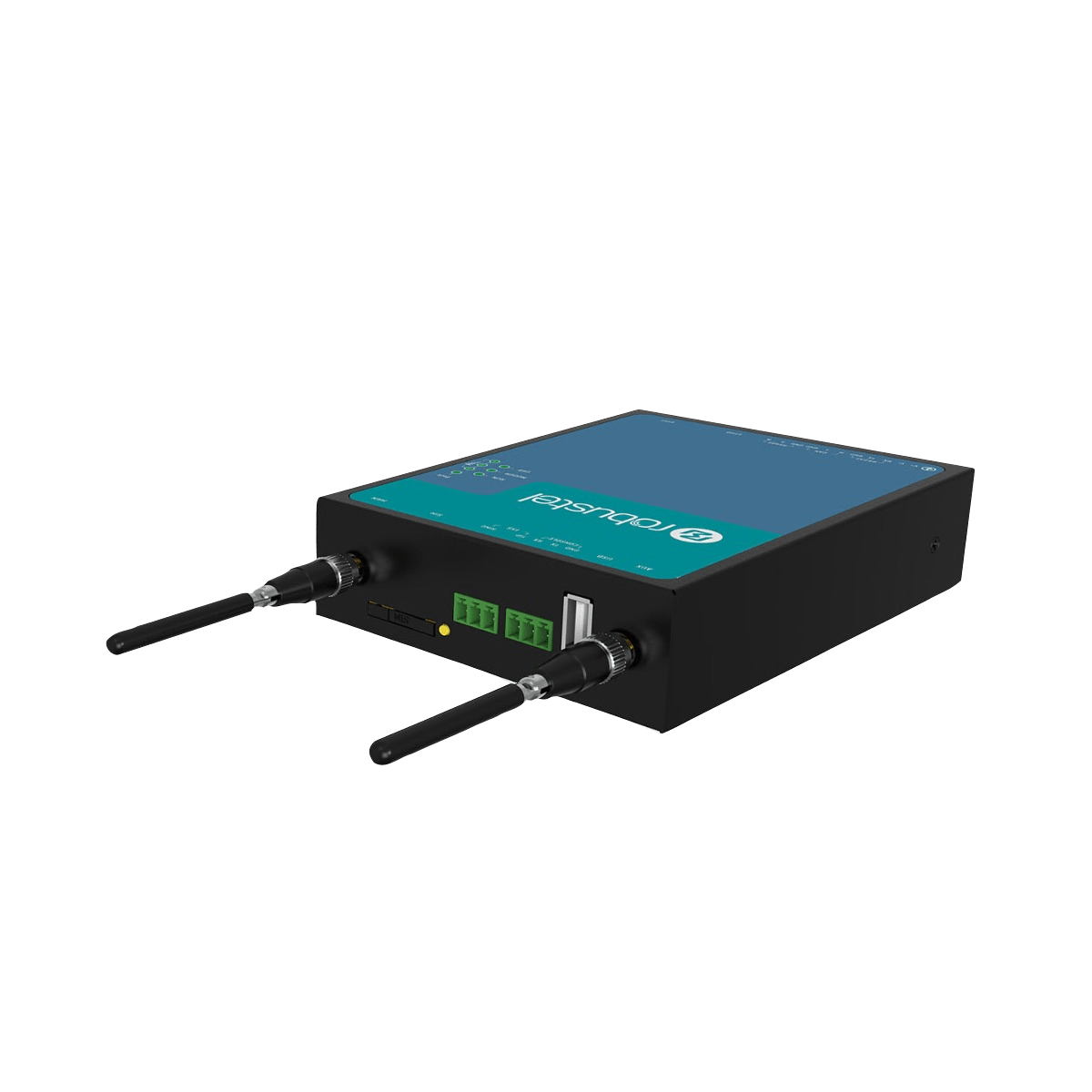

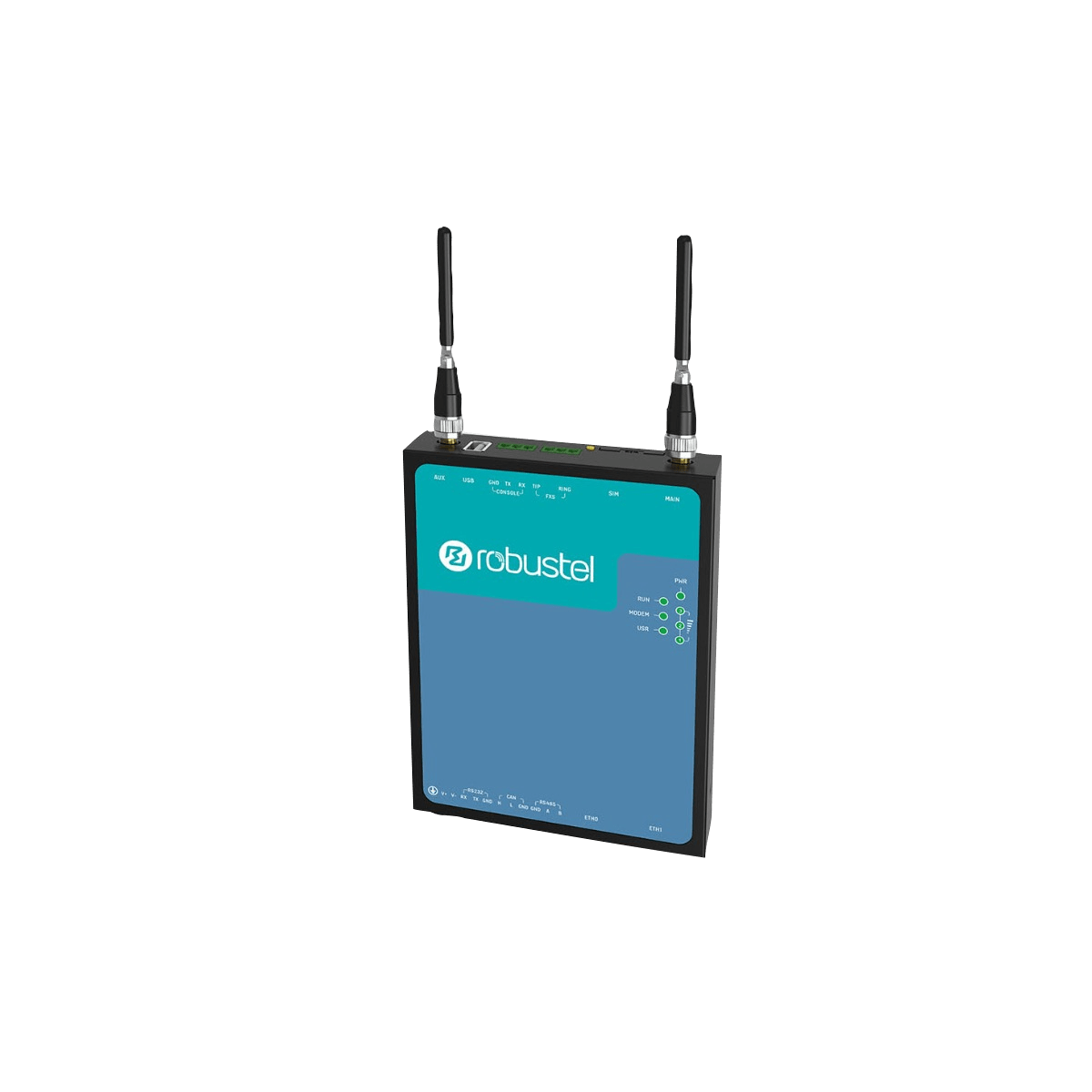

Robustel R3010 Industrial Gateway
R3010 Industrial Gateway is designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.
R3010 Features
- 2G/3G/4G cellular network Support
- Support always online and connect according to needs
- Various interfaces: RS232/CAN/RS485/Console/USB/Ethernet/FXS
- RS485 serial port supports BACnet protocol
- Support voice communication
R3010 is an industrial gateway designed for elevator monitoring and provides fast, reliable and stable Internet connectivity.
| Manufacturer or Brand | Robustel |
|---|---|
| Mounting Format | Desktop, Free Standing, Vehicle Mount, Wall Mount, Portable, DIN Rail |
| IP Rating | IP30 |
| Housing Colour | Black |
| Case Material | Metal |
| Cellular Connectivity | GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+/TD-SCDMA/CDMA (CDMA 1X/EVDO)/FDD LTE/TDD LTE |
| Cellular Region | EMEA, North America |
| Frequency Bands | EMEA CE North America Oceania For more information about frequency bands in different countries, please contact us |
| Cellular Connectors | SMA-K |
| Antenna Connectors | 2 (MAIN + AUX) |
| SIM Slots | 1 Mini SIM (2FF) |
| Ethernet Ports | 2 x 10/100 Mbps (ETH0 + ETH1) |
| Signal Definition | RS232: Tx, Rx, GND RS485: A (Data+), B (Data-), GND CAN: H, L, GND |
| Console Connectors | 3-pin 3.81 mm connector |
| Serial Port Software | Transparent, TCP Client/Server, UDP, Modbus RTU Gateway, BACnet |
| Device Interface Serial Port | 1 x RS232 + 1 x RS485 + 1 x CAN |
| Voice Interface Ports | 1 x FXS |
| Voice Interface Connector | 3-pin 3.81 mm connector |
| Voice Interface Standards | ITU Q.512 (SLIC), ITU K.20 (overcurrent and overvoltage protection) |
| SLIC | Ring voltage: 40 ~ 90 Vpk configurable Ring frequency: 20 ~ 25 Hz Ring waveform: sinusoidal Maximum ringer load: 5 ringer equivalence numbers (RENs) On-hook voltage (tip/ring): -46 ~ -56 V Off-hook current : 18 ~ 20 mA Terminating impedance: configurable |
| Network Protocols | PPP、PPPoE、TCP、UDP、DHCP、ICMP、NAT、HTTP、HTTPs、DNS、ARP、RIP、OSPF、NTP、SMTP、Telnet、VLAN、SSH2、IP Pass-through, etc. |
| Management/Troubleshooting Tools | Web, CLI, SMS |
| VPN Tunnel | IPsec, OpenVPN, GRE |
| Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| SDK Language | C, C++ |
| SDK Flash | 64 MB |
| SDK RAM | 64 MB |
| Available Apps | L2TP, PPTP, DMVPN, DDNS, RCMS, VRRP, QoS, SNMP, Language |
| Status LED | 1 x RUN, 1 x MODEM, 1 x USR, 3 x RSSI, 1 x PWR |
| Built-in | 1 x Console (GND, Tx, Rx), 1 x USB 2.0 host, up to 480 Mbps |
| Enclosure | Metal |
| Power Supply Connector | 2-pin 3.81mm connector |
| Power Input | 9 to 26 VDC |
| Power Consumption | 900 mA (MAX) @ 9 V, 600 mA (MAX) @ 12 V, 400 mA (MAX) @ 26 V |
| Approvals / Certifications | RoHS2.0, WEEE |
| Operating Temperature | Minus 40 degrees celsius to 75 degrees celsius |
| Storage Temperature | Minus 40 degrees celsius to 85 degrees celsius |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 134mm x 98mm x 32mm |
| Warranty | 2 Year Limited Warranty |
- 2G/3G/4G cellular network Support
- Support always online and connect according to needs
- Various interfaces: RS232/CAN/RS485/Console/USB/Ethernet/FXS
- RS485 serial port supports BACnet protocol
- Support voice communication
- Support IPSec, OpenVPN, PPTP, L2TP, GRE, DMVPN
- Support Modbus RTU/ASCII converts to TCP
- Built-in real time clock, software watchdog
- Support message, telephone and reboot at regular time
- Support e-mail and message event alert
The Robustel R3010
is used in a wide range of industries for a broad range of rugged applications. The most common applications for the Robustel R3010 Industrial IoT Gateway are listed below:-
These are just some of the applications for the Robustel R3010 Industrial IoT Gateway The potential applications extend further than those shown above. For further information about the Robustel R3010 Industrial IoT Gateway
or to check if the product is suitable for your application, please do not hesitate to contact us.
- Digital Signage
- Factory Floor
- Food Processing
- Industrial Automation
- IOT
- Manufacturing Plant
- Oil Rigs
- Public Information Systems
- Server Rooms
- Smart Factory
- Smart Office
- Warehousing
- Industry 4.0
- Green Technology
- Traffic Management
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the Robustel R3010 Industrial IoT Gateway to suit your requirements. These options include:
If your application requires unusual or individual modifications not listed above for the Robustel R3010 Industrial IoT Gateway, please contact us with your exact requirements and we will help create a custom solution to meet your needs.
- Custom Logo
- Case Colour
- Connections
- Conformal Coating
- Anti-Bacterial Coating
- Laser Etching
- Power Supply
- Mounting Options
The Robustel R3010 Industrial IoT Gateway has a 2 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)
To obtain service under this warranty, the warranty-eligible product, Robustel R3010 Industrial IoT Gateway, must be presented to us here in the UK.
For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
