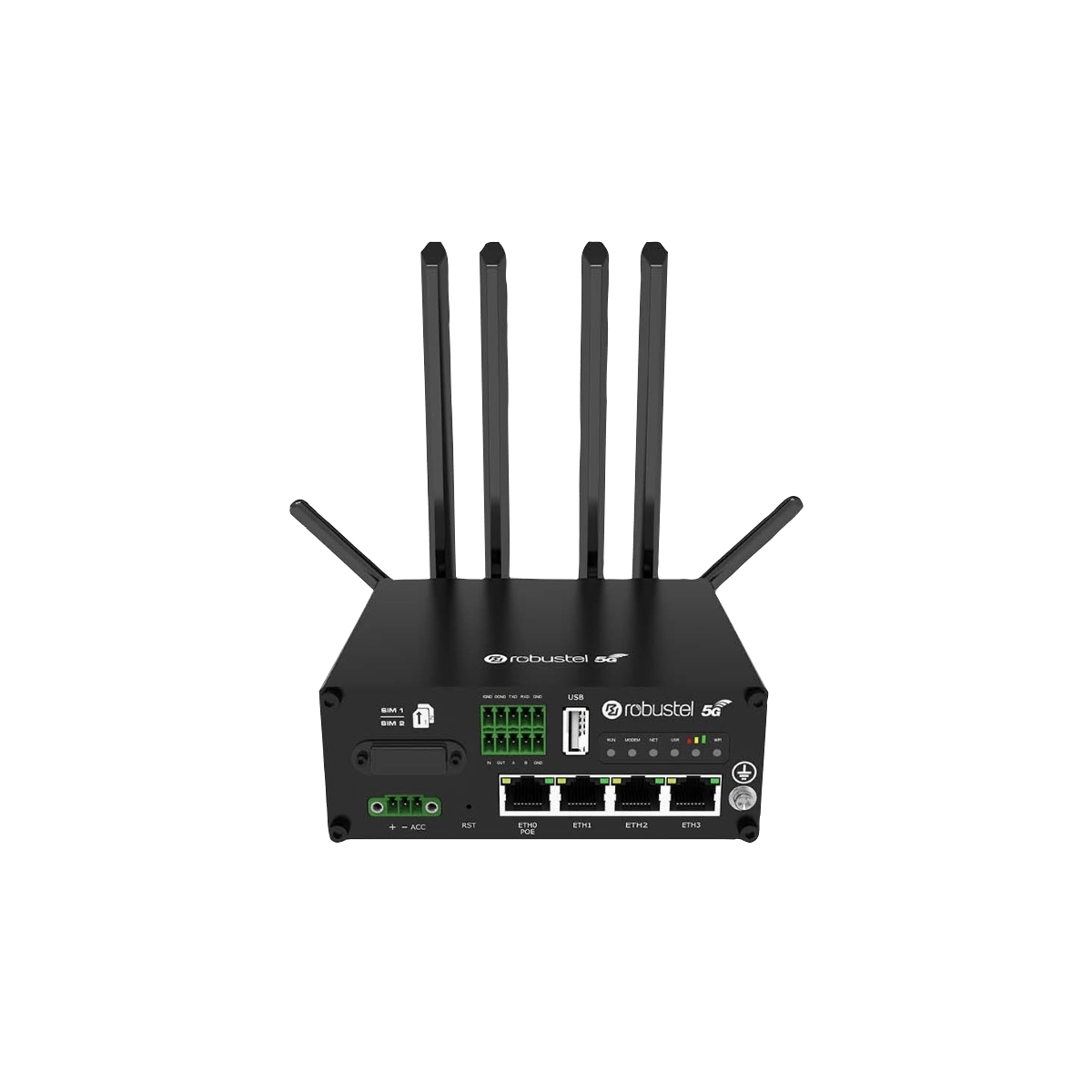

Robustel R5020 5G IoT Router

Designed for industrial IoT and vehicle applications, the Robustel R5020 5G IoT Router offers reliable cellular connectivity across global 5G, 4G, and 3G bands. Its rugged aluminium enclosure provides impact resistance and an IP30 dust-sealed build, suitable for harsh environments and in-vehicle deployments. Certified to E-Mark standards, it includes GNSS for positioning and features to manage vehicle power, such as ignition sensing to protect battery life.

The router supports Ethernet and Wi-Fi connections with automatic failover to cellular networks, supporting continuous operation. Industrial reliability is backed by MIL-STD-810 shock and vibration compliance, wide temperature range operation from -25 to 70°C, and resistance to electrical disturbances. Security features include advanced VPN protocols like IPsec and OpenVPN. With multiple Ethernet ports, dual SIM slots, and comprehensive network protocol support, the R5020 ensures field-ready, secure, and resilient connectivity for critical IoT implementations.

R5020 Features

  • Global 5G/4G/3G cellular connections
  • Supports Ethernet, Wifi and 4G/5G internet with auto-failover
  • Cost-effective industrial 5G router solution
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options available including DMVPN & IPSEC
  • GNSS, ignition sense & E-mark make R5020 ideal for vehicles
  • Free cloud management platform RCMS
  • Robust rugged metal enclosure with small footprint
  • DIN-rail + wall mount options

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Country Of Manufacture

China

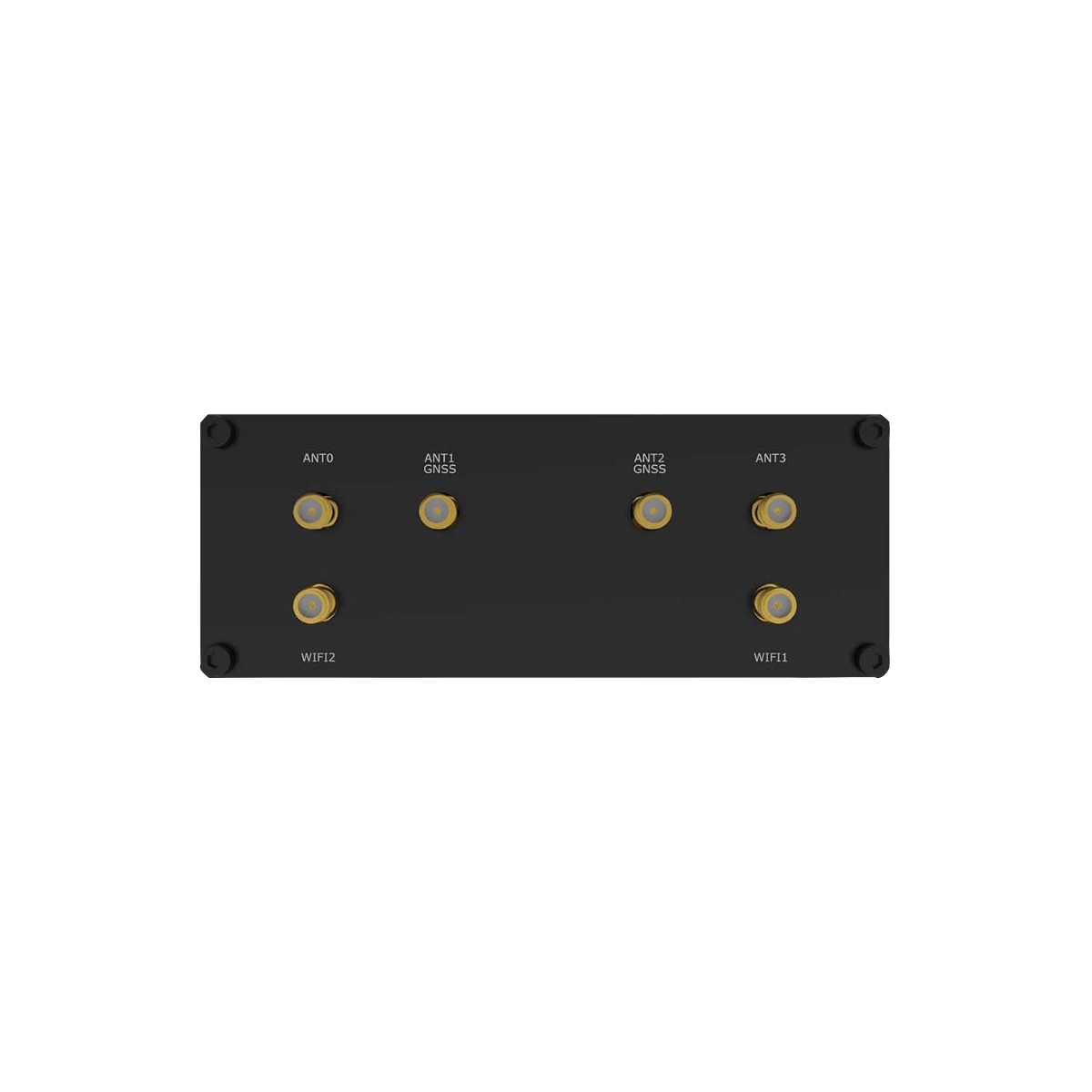

Antenna Connectors

4 (ANT0 + ANT1 + ANT2 + ANT3)

Approvals / Certifications

IP30

Available Apps

L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master

Case Material

Metal

Cellular Region

Global ,UK,EMEA,USA,Australia,China,Europe,India,Japan,New Zealand,North America,Oceania,South America

Certifications

E-Mark, CE, RCM, RoHS2.0, WEEE* (*in progress)

Console Connectors

2 x 5-pin 3.5 mm female socket

Custom Options Products

Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options

DI/DO Absolute MAX ADC

100 mA

DI/DO Absolute MAX VDC

“V+” +30V DC (DI), +30V DC (DO)

DI/DO Connector

2 x 5-pin 3.5 mm female socket

DI/DO Isolation

3.75KV DC (opto-isolator)

DI/DO Signal Definition

IN, OUT, IGND, OGND

DI/DO Type

1x DI + 1 x DO, wet contact

Dimensions

125 x 100 x 48 mm

Enclosure

Aluminum

Ethernet Ports

4 x 10/100/1000 Mbps, 4 LAN by default, can be configured as 1 WAN + 3 LAN Support 802.3at PD feature on ETH0 (optional)

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Frequency Bands

5G: NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/_x005F_x000D_ _x005F_x000D_ n40/n41/n48*/n66/n71/n77/n78/n79_x005F_x000D_ _x005F_x000D_ NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/_x005F_x000D_ _x005F_x000D_ n40/n41/n48*/n66/n71/n77/n78/n79_x005F_x000D_ _x005F_x000D_ 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/_x005F_x000D_ _x005F_x000D_ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71_x005F_x000D_ _x005F_x000D_ LTE TDD: B34/B38/B39/B40/B41/B42/B43/B48_x005F_x000D_ _x005F_x000D_ 3G: WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

GNSS Connector

SMA-K

GNSS Horizontal Position Accuracy

< 2m

GNSS No. of Antennas

2 (ANT1 + ANT2, Multiplexing cellular antenna interface)

GNSS Technology

GPS/GLONASS/BeiDou (Compass)/Galileo

Housing Colour

Black

Humidity

5% to 95% (non-condensing)

Magnet Isolation Protection

1 KV

Management/Troubleshooting Tools

Web, CLI, SMS

Operating Temperature

Minus 25 degrees celsius to 70 degrees celsius

Ordering Info

R5020 5G IoT Router

Others

Serial port - Transparent, TCP Client/Server, UDP, Modbus RTU to TCP. Smart Reboot, Data Guard, Smart Roaming, etc.

Power

Connector = 3-pin 3.5 mm female socket with lock

Power Consumption

Idle: 500 mA@12 V Data link: 1.2 A (peak) @12 V

Power Input

9 to 36V DC (POE-PD) 10 to 30V DC (ACC)

SDK Flash

5MB

SDK Language

C, C++

SDK RAM

256MB

Serial Baud Rate

300bps to 115200bps

Serial ESD Protection

±8 KV

Serial Ports

1 x RS232 + 1 x RS485

Signal Definition

RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND)

SIM Slots

2 Mini SIM (2FF)

Network Protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.

Status LED

1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI

Storage Temperature

Minus 40 degrees celsius to 85 degrees celsius

VPN Tunnel

IPsec, OpenVPN, GRE

WI-FI Antennas

2 (WiFi1 + WiFi2) - RP-SMA-K

WI-FI Authentication

WPA, WPA2, WEP

WI-FI Data Speed

5G: Up to 867Mbps 2.4G: Up to 300Mbps

WI-FI Encryption

AES, TKIP, WEP64

WI-FI Frequency Bands

2.412 2.472 GHz (2.4 GHz ISM band) 5.15 5.825 GHz (5 GHz ISM band)

WI-FI Standards

802.11b/g/n/ac 2*2 MIMO, supports AP and Client modes

The Robustel R5020 5G IoT Router is designed and engineered for use in demanding environments where reliability, durability are essential. The R5020 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.

Across these sectors, the R5020 is typically used in applications such as Digital Signage And Information Terminals, Emergency Dispatch And Incident Management, Fleet Management And Telematics, Mobile Workforce Operations, Proof Of Delivery And Last-Mile Logistics, Route Planning And Navigation, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the R5020 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the R5020 is appropriate for your specific application, please contact us.

The Robustel R5020 5G IoT Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, Robustel R5020 5G IoT Router, must be presented to RUGGED in the United Kingdom.

For more information about the Robustel R5020 5G IoT Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the Robustel R5020 5G IoT Router, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Robustel R5020 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.

  • Alternative Products

    Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.

    Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.

    Browse the related products below to identify the most suitable fit for your deployment.

    • Reinforced metal housing for durability
    • Dual Ethernet ports for flexible network setups
    • Advanced VPN with IPsec and OpenVPN support
    • Wide 9-36V DC input for continuous industrial use
    • Global LTE band support for worldwide deployment
    • Electrically hardened against EMI for stable signals
    • Wide operating temperature range from -25 to 70°C
    • Supports advanced VPN protocols and dual SIM slots
    • Industrial-grade aluminium enclosure
    • Dual Gigabit Ethernet ports with Wi-Fi
    • Supports IPsec and DMVPN protocols
    • Operates from -25°C to 70°C
    R5020 Lite 5G Router
    • Industrial-grade sealed metal case
    • Dual Mini SIM slots for network failover
    • IP30 ingress and wide temperature range
    • Supports multiple VPN protocols including IPsec and WireGuard
  • Having trouble finding what you're looking for?

    Selecting the correct solution for your specific application and operating environment requires careful consideration.

    At Rugged, our engineering and product specialists can advise on specifications, environmental suitability, mounting requirements, connectivity, and lifecycle planning to ensure the right fit for your deployment.

    With extensive industry experience and a focus on reliability and performance, we help you select a solution aligned with your operational requirements.

    Speak to a Product Specialist
  • Frequently Asked Questions

    • If you are unsure which product is best suited to your requirements, you can contact us directly for expert guidance. Share details such as your use case, environment, compatibility needs, and budget, and we will help you select the most appropriate solution.

    • RUGGED offers free technical support for the lifetime of products you purchase. This includes help with setup, troubleshooting, and integration. Support is available online or directly from the technical team

    The reliability of a cellular router connection is a key benefit, especially for applications where traditional wired connections are not feasible or robust enough. Rugged Limited’s cellular routers are engineered to provide dependable internet access in challenging conditions, making rugged routers a suitable choice for various industries. This high cellular router reliability is a result of their construction, which often includes features like redundant SIM card slots for automatic failover to another network if one experiences an outage.

    Furthermore, these devices are built to withstand extreme temperatures, vibrations, and shocks, contributing significantly to their uptime and overall performance. Such resilience ensures a stable connection, critical for continuous data transmission and operational efficiency.

    Understanding the cellular router vs modem difference is crucial for effective network setup. A cellular modem functions similarly to a traditional broadband modem, acting as a gateway to connect a single device to the internet via a cellular network. It modulates and demodulates signals, converting cellular data into a format that a computer or other device can understand, essentially providing raw internet access.

    A cellular router, on the other hand, builds upon the modem’s capabilities. It incorporates a cellular modem but adds routing functionalities. This means a cellular router can share the internet connection from the cellular network with multiple devices simultaneously, much like a wired router shares a broadband connection. Beyond simply sharing, cellular routers offer advanced networking features such as Wi-Fi broadcasting, multiple Ethernet ports, VPN support, firewall protection, and sometimes even failover capabilities, allowing for seamless switching between different internet sources if one fails. Therefore, while a modem provides the internet connection, a router manages and distributes that connection to an entire network of devices, offering greater versatility and control. When considering a cellular router vs modem, the router provides a more comprehensive networking solution for multiple users and devices.

    Rugged Limited’s cellular routers are designed with versatile Router Power Options to suit diverse industrial and remote applications. Many of our routers support a wide input voltage range, typically from 8V to 48V DC, making them adaptable to various power sources commonly found in vehicles, industrial sites, and off-grid locations.

    These flexible power inputs ensure reliable performance even with fluctuating power supplies. For example, some models can be powered via a direct connection to a DC power source, while others may include options for terminal block connections, enhancing their suitability for permanent installations. This broad compatibility with different power inputs is crucial for maintaining uninterrupted connectivity in challenging operational environments where standard AC outlets may not be readily available.

    Explore our range of rugged routers to find a solution that offers the ideal Router Power Options for your specific deployment needs.

    A cellular broadband router can indeed serve as a viable alternative to traditional fixed broadband connections, particularly where wired infrastructure is difficult to deploy or ongoing flexibility is required. These routers leverage cellular networks to provide internet access, making them ideal for remote locations, temporary setups, or mobile applications.

    Rugged Limited offers a range of rugged routers designed for demanding environments, ensuring reliable internet connectivity even in challenging conditions. The inherent mobility and rapid deployment capabilities of a cellular broadband router mean you can establish an internet connection quickly, without the need for extensive cabling or traditional landline installations.

    This approach provides significant advantages in terms of deployment speed and location independence, making it a compelling option for businesses and operations that require robust and adaptable network solutions.

    A vehicle cellular router is engineered to provide robust and reliable internet connectivity in mobile settings, such as cars, lorries, and public transport. These devices are built to tolerate wide temperature ranges, vibrations, and voltage fluctuations commonly encountered in vehicles, ensuring consistent performance on the move.

    Rugged Limited offers a range of industrial cellular routers that are well-suited for vehicular deployment. These routers often feature multiple WAN options, including cellular and Wi-Fi, allowing for seamless failover and load balancing to maintain an uninterrupted connection. Their compact design and flexible mounting options make them easy to integrate into diverse vehicle types.

    For more information on suitable router solutions, explore the options available for rugged routers engineered for demanding applications, including those in vehicles. The ability of a vehicle cellular router to establish highly secure connections through VPN tunnelling, combined with GPS functionality, makes them invaluable for fleet management, real-time tracking, and in-vehicle entertainment systems.

    Ensuring a

    Secure Cellular Router

    connection is a priority for Rugged Limited. Our cellular routers incorporate a hardened OpenWrt operating system, which is based on Linux and specifically designed to prevent unauthorised access and maintain network integrity. This operating system helps to protect against many common vulnerabilities, offering a strong foundation for your network security.

    Furthermore, our routers are equipped with advanced security protocols such as IPsec, OpenVPN, GRE, and WireGuard. These protocols create secure tunnels for data transmission, encrypting your data and safeguarding it from interception. The combination of a secure operating system and comprehensive VPN support makes Rugged Limited cellular routers a reliable choice for maintaining a robust and secure cellular router setup within various industrial and commercial applications.

    Cellular routers are essential for maintaining continuous connectivity in numerous sectors where traditional wired infrastructure may be impractical or unreliable. The Cellular Router Industries include, but are not limited to, public safety, transportation, utilities, and agriculture.

    For instance, in public safety, cellular routers enable first responders to access critical data and communicate effectively in emergency situations, often in remote or disaster-stricken areas. Within the transportation sector, they provide connectivity for fleet management, real-time tracking, and passenger Wi-Fi on buses and trains. Utility companies utilise these routers for smart grid management, remote monitoring of infrastructure, and data collection from distributed assets. In agriculture, cellular routers support precision farming techniques, connecting sensors and automated machinery to optimise operations and monitor crop health.

    Rugged Limited provides a range of robust and reliable rugged routers designed to meet the demands of these diverse applications, ensuring consistent performance even in harsh conditions. Our solutions cater to the specific needs of various Cellular Router Industries, offering secure and stable network access for mission-critical operations.

    Rugged Limited offers a range of high-performance cellular routers that are fully equipped to support 5G connectivity. Our 5G cellular routers are engineered to deliver robust and high-speed internet in diverse and challenging industrial settings.

    These advanced routers are designed to capitalise on the benefits of 5G, including significantly faster download and upload speeds, lower latency, and increased network capacity. This makes them ideal for applications requiring real-time data processing, remote monitoring, and high-bandwidth communication.

    For more information on our range of devices, you can explore our selection of rugged routers, where you’ll find various models that integrate seamlessly with current 5G networks, ensuring future-proofed connectivity solutions for your operations.
