Robustel R1510 Industrial Cellular VPN Router
Designed for industrial and field deployments, the Robustel R1510 Industrial Cellular VPN Router provides secure network connectivity within demanding environments. Its robust metal housing and ingress protection enable reliable operation amid harsh conditions, while dual Ethernet ports support flexible LAN and WAN setups tailored to various industrial sites. Advanced VPN protocols, including IPsec and OpenVPN, deliver encrypted communication, essential for maintaining network security on-site or remotely.
The R1510 accommodates multiple network standards such as DHCP, PPPoE, and VLAN, enhancing compatibility across deployments. It meets IEC 61000-4 series standards for EMI resistance, ensuring operational stability despite electrical disturbances common in industrial contexts. Certified to RoHS 2.0, WEEE, and EN 55032, the router incorporates low power consumption with an extended DC input range of 9 to 36V, suitable for continuous-duty applications. Compact and vibration-tolerant, it fits space-constrained installations while maintaining MIL-STD-level surge and electromagnetic protections.
R1510 Features
- Highly stable 2G/3G/4G cellular connections
- Ethernet, Wifi and 4G internet connection options with auto-failover
- Free cloud management platform RCMS
- Fully programmable Linux environment with excellent SDK Documentation
- Smart Reboot’ for enhanced roaming SIM management
- RobustVPN provides fixed IP address on ANY SIM card
- Full SMS control for diagnosis and recovery from data network problems
- Very small footprint for space-constrained applications
- Wall-mount and DIN-rail mounting options available
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Country Of Manufacture
China
Antenna Connectors
2 external antenna (MAIN + AUX)
Approvals / Certifications
RoHS 2.0, WEEE
Available Apps
L2TP, PPTP, DMVPN, VRRP, QoS, WLAN Multi AP, SNMP
Built-in
Watchdog, Timer
Case Material
Metal
Cellular Connectors
SMA-K
Custom Options Products
Custom Logo,Case Colour,Connections,Conformal Coating,Anti-Bacterial Coating,Laser Etching,Power Supply,Mounting Options
DI/DO Absolute MAX ADC
20mA
DI/DO Absolute MAX VDC
30V DC (DI/DO)
DI/DO Connector
3-pin 3.5 mm female socket
DI/DO Type
1 x DI (wet contact) + 1 x DO (wet contact)
Dimensions
91.5 x 91.5 x 30.8mm
EMI
EN 55032: 2012/AC: 2013 (CE & RE) Class A
EMS
IEC 61000-4-2 (ESD) Contact Level 2; IEC 61000-4-3 (RS) Level 2 IEC 61000-4-4 (EFT) Level 2 IEC 61000-4-5 (Surge) Level 2 IEC 61000-4-6 (CS) Level 2
Ethernet Ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Housing Colour
Black
Magnet Isolation Protection
1.5 KV
Management/Troubleshooting Tools
Web, CLI, SMS
Power Consumption
Idle: 100 mA@12 V Data link: 500 mA (peak) @12 V - UL 94 V-0, 5 VB
Power Input
9 to 36V DC
Power Supply Connector
2-pin 3.5 mm female socket
Reset Button
1 x RST
SDK Flash
4 MB
SDK Language
C, C++
SDK RAM
64 MB
SIM Slots
1 Mini SIM (2 FF)
Network Protocols
PPPoE, DHCP , NAT, DNS, NTP, SMTP, Telnet, VLAN,VLAN, VLAN, SSH2, DDNS, etc.
Status LED
1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x WiFi
VPN Tunnel
IPsec, OpenVPN, GRE
WI-FI Antennas
1 external antenna
WI-FI Connectors
RP-SMA-K (external antenna)
WI-FI Data Speed
2*2 MIMO, 300 Mbps
WI-FI Encryption
64/128 AES, TKIP
WI-FI Frequency Bands
2.4 GHz
WI-FI Security
WEP, WPA, WPA2
WI-FI Standards
802.11b/g/n, supports AP and Client modes
The Robustel R1510 Industrial Cellular VPN Router is designed and engineered for use in demanding environments where reliability, durability are essential. The R1510 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Defence And Military, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Natural Resources and Mining, Oil and Gas.
Across these sectors, the R1510 is typically used in applications such as Emergency Dispatch And Incident Management, Fleet Management And Telematics, Mobile Workforce Operations, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Route Planning And Navigation, SCADA And Control-Room Access, Secure Communications And Command-And-Control.
These examples demonstrate the versatility of the R1510 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R1510 is appropriate for your specific application, please contact us.
The Robustel R1510 Industrial Cellular VPN Router comes with a 2 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Robustel R1510 Industrial Cellular VPN Router, must be presented to RUGGED in the United Kingdom.
For more information about the Robustel R1510 Industrial Cellular VPN Router or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Robustel R1510 Industrial Cellular VPN Router, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Robustel R1510 or need a custom Industrial Cellular VPN Router solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
R1511P-DevKit
- Extended operating temperature range
- -40 to +85°C
- Dual SIM and eSIM slots
- Supports VPN and firewall features
- Industrial EMI and EMS compliance
R1511P
- Compact modular design
- Wide operating temperature range
- -40 to 85°C
- IEC 61000-series EMC certified
- Multi-WAN support including Ethernet and Wi-Fi
- Dual 4G LTE modules for redundancy
- Reinforced metal housing with sealed interfaces
- Secure VPN with IPsec and OpenVPN support
- Voice integration via RJ11 interface

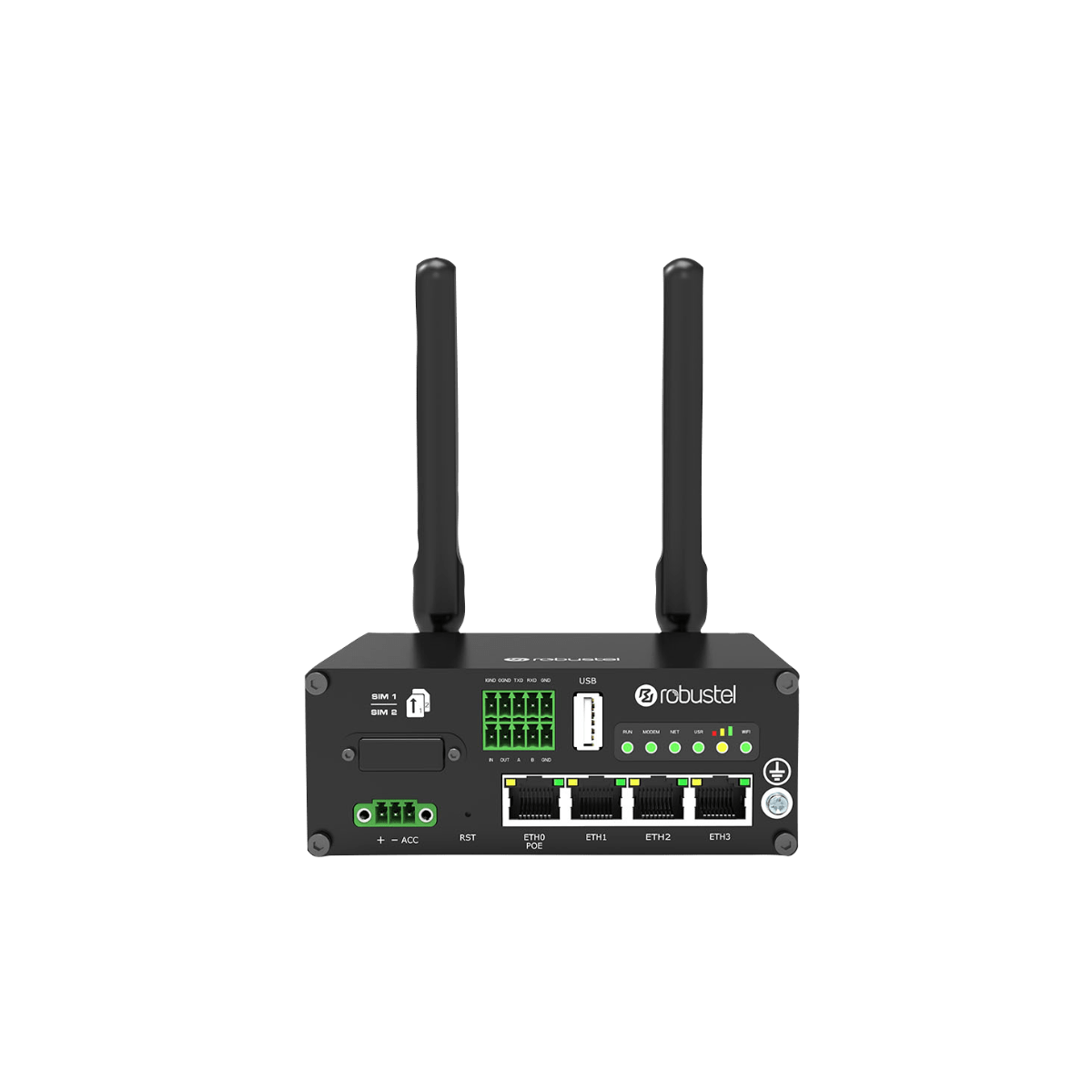

R2110
