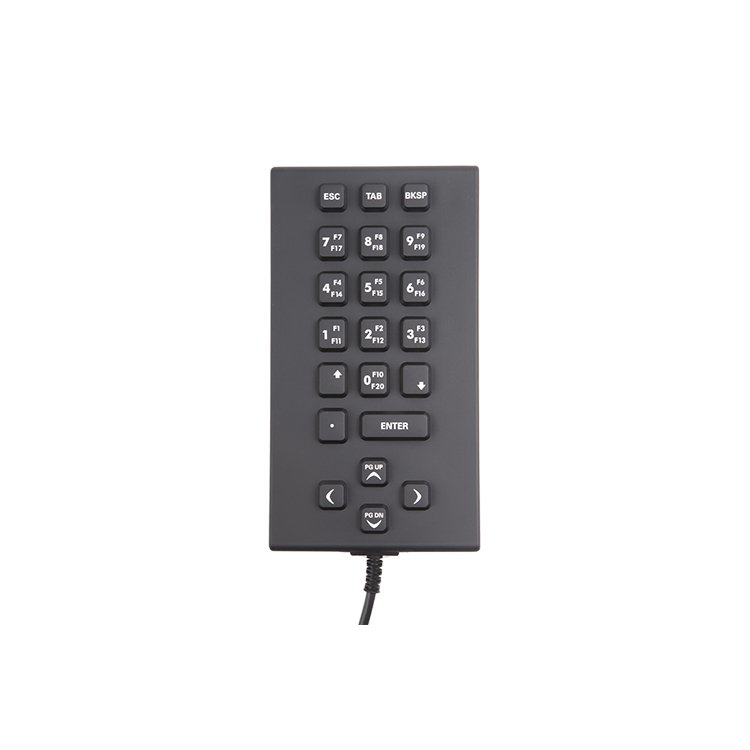

SIK-21-NUM PrehKeyTec Keypad

The SIK 21-Num rugged keypad has been designed to provide a turnkey high performance data entry solution for the most demanding applications.

SIK-21-NUM Features

  • Adjustable Key Illumination
  • IP65 & Resistant To Liquids
  • Keys Resistant To Abrasion
  • Designed To Meet MIL-STD 810G
  • Customisation Available On Request


SIK-21-NUM USB SIK-21-NUM PROGRAMMABLE SIK-21-NUM DUST-RESISTANCE SIK-21-NUM CUSTOMISABLE SIK-21-NUM VESA-COMPATIBLE SIK-21-NUM WIDE-TEMPERATURE SIK-21-NUM MIL-STD-810G SIK-21-NUM IP65-RATED

The SIK 21-Num rugged keypad has been designed to provide a turnkey high performance data entry solution for the most demanding applications.

The SIK 21-Num provides a numeric pad with special application function keys using a rugged silicone surface. Having been specifically designed for use in harsh environments, rugged applications, industrial automation, wet room applications and machine control.

Applications for the keypad include the military equipment control, equipment control and data input, food production/processing/wash down & catering and in other fields of activity where extreme environmental conditions require a reliable means of data input.

The rugged silicon surface protects against dust and liquids, and can provide additional resistance where corrosive fluids are present, the unit meets the IP65 rating against fluid ingress. The keypad technology and the design of the unit allows operators to work seamlessly even when the operators need to wear protective gloves. The key surface makes use of a special PU coating to provide additional abrasion protection. One special feature of this keypad is the use of red LED backlighting on each of the key buttons, providing users with enhanced operation in harsh and limited lighting conditions, which in turn reduces errors and aids fast data entry. The underside of the keyboard features integrated screw threads arranged in a 75mm VESA mounting arrangement for ease of integration and mounting.

Specification
Manufacturer or Brand PrehKeyTec
Mounting Format Car Mount, Desktop, Free Standing, Vehicle Mount, VESA Mount, Wall Mount
IP Rating IP65
Interface AT Serial, PS2, USB
Housing Colour Black
Certifications CE, RoHS compliant, Declaration of Conformity, EN 55022:2010, FCC Part 15 Subpart B Class A, EN 55024:2010, EN61000-4-2
Operating Temperature –30 C to + 50 C
Storage Temperature -30 C to 70 C
Warranty 1 Year Limited Warranty
Lifetime > 1 Million Operations Per Key
Backlight Key illumination can be adjusted in duration and intensity
Cable USB interface (<500 mA including lighting), others available on request
Colour Black (similar to RAL 9011)
Connectivity USB interface (<500 mA including lighting) , others available on request
Impact Protection Rate IP65
Interface USB - Other Interfaces available on request
Key Material Abrasion Resistant PU Coating
Key Spacing 18 mm key pitch
Power <500 mA including lighting
Programmable Custom Programmable - Contact Us
Shock

Vibration MIL-STD 810G; Method 514.6 – Functional

Mechanical Shock MIL STD 810G; Method 516.6, Procedure 1

Thermal Shock-40° F to +158° F/-40° C to +70° C

Supply Current <500 mA
Supply Voltage +5 Volts
  • Adjustable Key Illumination
  • IP65 & Resistant To Liquids
  • Keys Resistant To Abrasion
  • Designed To Meet MIL-STD 810G
  • Customisation Available On Request
The PrehKeyTec SIK-21-NUM is used in a wide range of industries for a broad range of rugged applications. The most common applications for the PrehKeyTec SIK-21-NUM Keypad are listed below:-

  • Access Control
  • Factory Floor
  • Food Processing
  • Forklift Vehicle
  • In Vehicle
  • Industrial Automation
  • Manufacturing Plant
  • Military
  • Oil Rigs
  • Warehousing

These are just some of the applications for the PrehKeyTec SIK-21-NUM Keypad The potential applications extend further than those shown above. For further information about the PrehKeyTec SIK-21-NUM Keypad or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the PrehKeyTec SIK-21-NUM Keypad to suit your requirements. These options include:

  • Cable Type
  • Cable Length
  • Interface
  • Keypad Layout
  • Custom Macro
  • Epoxy Coating
  • PU Coating

If your application requires unusual or individual modifications not listed above for the PrehKeyTec SIK-21-NUM Keypad, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The PrehKeyTec SIK-21-NUM Keypad has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, PrehKeyTec SIK-21-NUM Keypad, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
