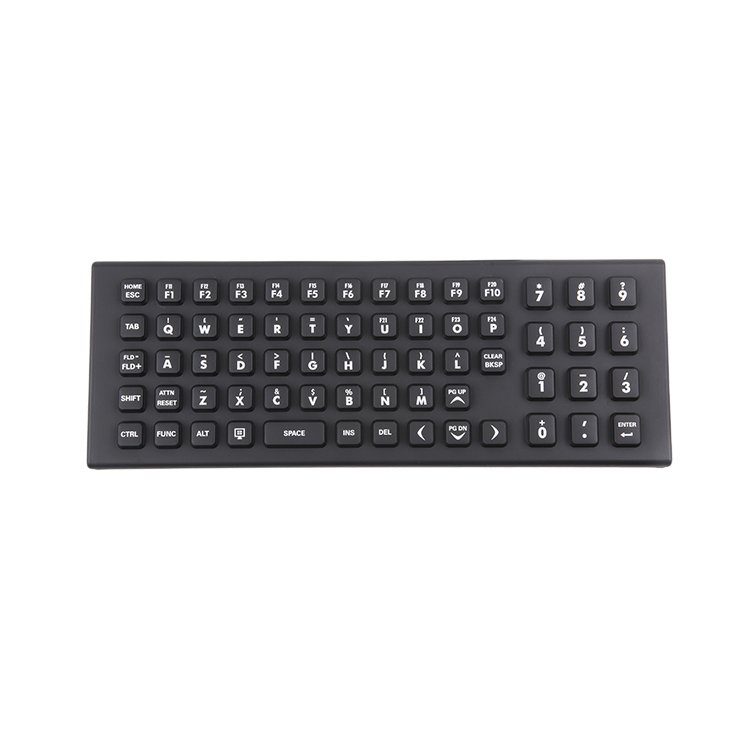

SIK-65-Alpha PrehKeyTec Keyboard

The SIK 65-Alpha rugged keyboard has been designed to provide a turnkey high performance data entry solution for the most demanding applications.

SIK-65-Alpha Features

  • Adjustable Key Illumination
  • IP65 & Resistant To Liquids
  • Keys Resistant To Abrasion
  • Designed To Meet MIL-STD 810G
  • Customisation Available On Request


The SIK 65-Alpha rugged keyboard has been designed to provide a turnkey high performance data entry solution for the most demanding applications.

The SIK 65 is an alphanumeric keyboard with a rugged silicone surface, having been specifically designed for use in harsh environments, rugged applications, wet rooms applications and machine control.

Applications for this keyboard include military and emergency services, cold store, logistics/fork lift trucks, food production/catering, Industrial equipment control and in other fields of activity where ex-treme environmental conditions are present.

The special silicon surface protects against dust and liquids, the hermetic seal allows use of the entire keyboard and the unit meets the IP65 rating for protection. This new keypad technology and the design of the unit allows operators to work seamlessly even when the operators need to wear protective gloves. The key surface makes use of a special PU coating to provide additional abrasion protection. One special feature of this keyboard/keypad is the use of backlighting on each of the key buttons, providing users with enhanced operation in harsh and limited lighting conditions. The under side of the solution features integrated screw threads for VESA mounting. Alternative fixing methods could be provided if required.

Possible options include:- Custom key graphics and product branding, epoxy coating, subject to quantity requirements.

Specification
Manufacturer or Brand PrehKeyTec
Mounting Format Car Mount, Desktop, Free Standing, Vehicle Mount, VESA Mount, Wall Mount
IP Rating IP65
Interface AT Serial, PS2, USB
Housing Colour Black
Function Keys 10 Keys
Certifications CE, RoHS compliant, Declaration of Conformity, EN 55022:2010, FCC Part 15 Subpart B Class A, EN 55024:2010, EN61000-4-2
Operating Temperature –30 C to + 50 C
Storage Temperature -30 C to 70 C
Warranty 1 Year Limited Warranty
Lifetime > 1 Million Operations Per Key
Backlight Key illumination can be adjusted in duration and intensity
Cable USB interface (<500 mA including lighting), others available on request
Colour Black (similar to RAL 9011)
Connectivity USB interface (<500 mA including lighting) , others available on request
Impact Protection Rate IP65
Interface USB - Other Interfaces available on request
Key Material Abrasion Resistant PU Coating
Key Spacing 18 mm key pitch
Power <500 mA including lighting
Programmable Custom Programmable - Contact Us
Shock

Vibration MIL-STD 810G; Method 514.6 – Functional

Mechanical Shock MIL STD 810G; Method 516.6, Procedure 1

Thermal Shock-40° F to +158° F/-40° C to +70° C

Supply Current <500 mA
Supply Voltage +5 Volts
Vibration MIL-STD 810G; Method 514.6 – Functional
  • Adjustable Key Illumination
  • IP65 & Resistant To Liquids
  • Keys Resistant To Abrasion
  • Designed To Meet MIL-STD 810G
  • Customisation Available On Request
The PrehKeyTec SIK-65-Alpha is used in a wide range of industries for a broad range of rugged applications. The most common applications for the PrehKeyTec SIK-65-Alpha Keyboard are listed below:-

  • Access Control
  • Factory Floor
  • Food Processing
  • Forklift Vehicle
  • In Vehicle
  • Industrial Automation
  • Manufacturing Plant
  • Military
  • Oil Rigs
  • Warehousing

These are just some of the applications for the PrehKeyTec SIK-65-Alpha Keyboard The potential applications extend further than those shown above. For further information about the PrehKeyTec SIK-65-Alpha Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the PrehKeyTec SIK-65-Alpha Keyboard to suit your requirements. These options include:

  • Cable Type
  • Cable Length
  • Interface
  • Keypad Layout
  • Custom Logo
  • Custom Macro
  • Epoxy Coating

If your application requires unusual or individual modifications not listed above for the PrehKeyTec SIK-65-Alpha Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The PrehKeyTec SIK-65-Alpha Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, PrehKeyTec SIK-65-Alpha Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
