iKey-SL-75-OEM-Keyboard

SL-75-OEM iKey Keyboard

iKey-SL-81-OEM-Keyboard

SL-81-OEM iKey Keyboard

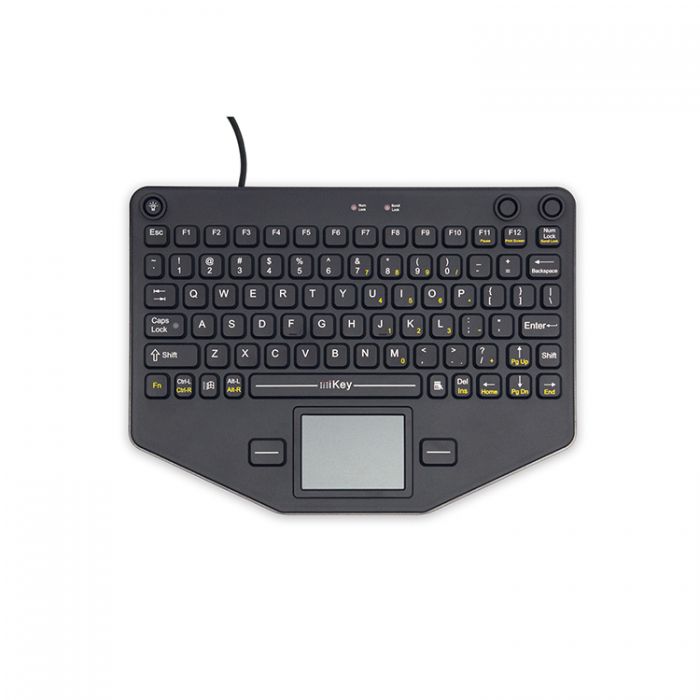

SL-80-TP iKey Keyboard

iKey introduces the SL-80-TP, a compact, lightweight, and fully-rugged mobile keyboard. This fully-sealed keyboard is designed to meet NEMA 4X specifications, meaning it is resistant to dirt, dust, water, ice and corrosives. Built with an industrial silicone rubber keypad and a rugged ABS polycarbonate case, the SL-80-TP is submersible and easy to clean with disinfectants

SL-80-TP Features

  • Rugged Construction
  • Three Levels of Red LED Backlight
  • VESA Mount Pattern
  • 12 Function Keys
  • Integrated Touchpad

SL-80-TP Keyboard Options



iKey introduces the SL-80-TP, a compact, lightweight, and fully-rugged mobile keyboard. This fully-sealed keyboard is designed to meet NEMA 4X specifications, meaning it is resistant to dirt, dust, water, ice and corrosives. Built with an industrial silicone rubber keypad and a rugged ABS polycarbonate case, the SL-80-TP is submersible and easy to clean with disinfectants.

The SL-80-TP has an integrated touchpad and a small footprint design ideal for mobile application where space is a premium. In addition, its red LED backlighting is ideal for night-time or ambient-light use. It is an ideal fit for public safety, mobile, material handling, food and beverage processing, medical, and other environments where rugged flexibility is a necessity.

Specification
Manufacturer or Brand iKey
Mounting Format Desktop, Free Standing, Mobile, Vehicle Mount, VESA, VESA Mount
IP Rating IP66
Interface PS2, USB
Case Material ABS Polycarbonate
Housing Colour Black
Backlight Red
Certifications CE, RoHS compliant
Temperature Rating STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F)
Humidity 100% Humidity Resistant
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 10.04" x 7.41" x .78"
Warranty 1 Year Limited Warranty
Compatibility USB: All Windows and Macintosh OS
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Function Keys 12 Keys
Key Feedback Tactile with Mechanical Snap
Key Material Industrial Silicone Rubber
Key Switch MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055" ACTUATION FORCE: 6.35 oz +/- 1.06 oz (180g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Lifespan >10 Million Actuations
Mounting Filter Desktop
No. Of Keys 80
Pointing Device Touchpad
Product Weight 1.0 +/- 0.10 lbs (0.45kg +/- 0.05kg)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force 200g (+/- 30g)
Switch / Key Travel 0.055 in (1.4mm)
Vibration POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE:20Hz-2Khz DURATION OS TESTS PER AXIS: 3 hours
  • Rugged Construction
  • Three Levels of Red LED Backlight
  • VESA Mount Pattern
  • 12 Function Keys
  • Integrated Touchpad
The iKey SL-80-TP is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey SL-80-TP Keyboard are listed below:-

  • Accident and Emergency
  • Clinical Engineering
  • Dental Surgeries
  • Factory Floor
  • Field Service
  • Hospitals
  • In Vehicle
  • Industrial Automation
  • Medical Carts
  • Mobile Worker
  • Pharmacy
  • Radiology
  • Smart Factory
  • Theatres
  • Vehicle Diagnostic
  • Veterinary Hospitals
  • Ward Areas
  • Doctors Surgeries
  • Industry 4.0

These are just some of the applications for the iKey SL-80-TP Keyboard The potential applications extend further than those shown above. For further information about the iKey SL-80-TP Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey SL-80-TP Keyboard to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the iKey SL-80-TP Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iKey SL-80-TP Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iKey SL-80-TP Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
