KYB-170-OEM iKey Keyboard
Designed for integration into wearable technology, the KYB-170-OEM is a ruggedized alphanumeric keypad built for exceptional EMI performance.
This 17-key, ultra-compact keypad utilizes sequential key presses to access both alphabetic and numeric characters – similar to the texting function of a cell phone. In addition, it includes an integrated Force Sensing Resistor (FSR) pointing device and multiple levels of backlighting that are available in almost any LED colour, including NVIS Green B.
Built for use in harsh areas, the KYB-170-OEM is sealed to NEMA 4X specifications when properly sealed and is designed to meet MIL-STD-461E requirements for radiated susceptibility.
KYB-170-OEM Features
- Integrated LED Backlighting
- Integrated Fsr Pointing Device
- Slim, Compact Design
- USBconfigurations Available
- Various Keyboard and Language Layout Options
- Customisation Available On Request
Request for Quote (RFQ)
Product Type
Format
IP Rating
Manufacturer
Country Of Manufacture
United States
Backlight
Red
Case Material
No Case
Certifications
IP Rated, NEMA 4X; UL60950 FCC Part 15 Class B; CE
Custom Options Products
Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface
Dimensions
2.55" x 2.75" x 0.22" (w-h-d) 64.77mm x 69.85mm x 5.59mm
Housing Colour
Black
Humidity
100% Humidity Resistant (when properly installed)
Cable
DESIGN: Single Cable USB
Compatibility
USB: All Windows and Macintosh OS
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys
24 Keys
Key Feedback
Tactile with Mechanical Snap
Key Material
Industrial Silicone Rubber
Key Switch
MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 230 g (+/-30 g) FEEDBACK: Tactile with Mechanical Snap
Lifespan
>10 Million Actuations
No. Of Keys
17
Pointing Device
Force Sensing Resistor
Power
USB: 170mA@5V (from CPU port)
Product Weight
0.10 lbs (0.034 kg)
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force
230 g (+/-30 g)
Switch / Key Travel
0.055 in (1.4mm)
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Shock
3 x 11 ms Pulses of 50g on each of 3 Axes
Temperature Rating
STORAGE: -35C to +85C OPERATING: -20C to +55C
The KYB-170-OEM iKey Keyboard is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the KYB-170-OEM is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the KYB-170-OEM iKey Keyboard across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Keyboard fits your specific needs, please contact us.
The KYB-170-OEM iKey Keyboard comes with a 90 Day Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, KYB-170-OEM iKey Keyboard, must be presented to RUGGED in the United Kingdom.
For more information about the KYB-170-OEM iKey Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the KYB-170-OEM iKey Keyboard or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey KYB-170-OEM or need a custom Keyboard solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Discover a range of alternatives that offer comparable features and quality to the product you’re viewing.
Our selection of similar items provides diverse options, allowing you to explore different designs, functionalities, and styles tailored to your preferences. Each product has been carefully chosen to ensure it meets the high standards you expect, enabling you to make a well-informed decision based on your unique requirements.
Browse through our related products and find the perfect match that complements your choice seamlessly.

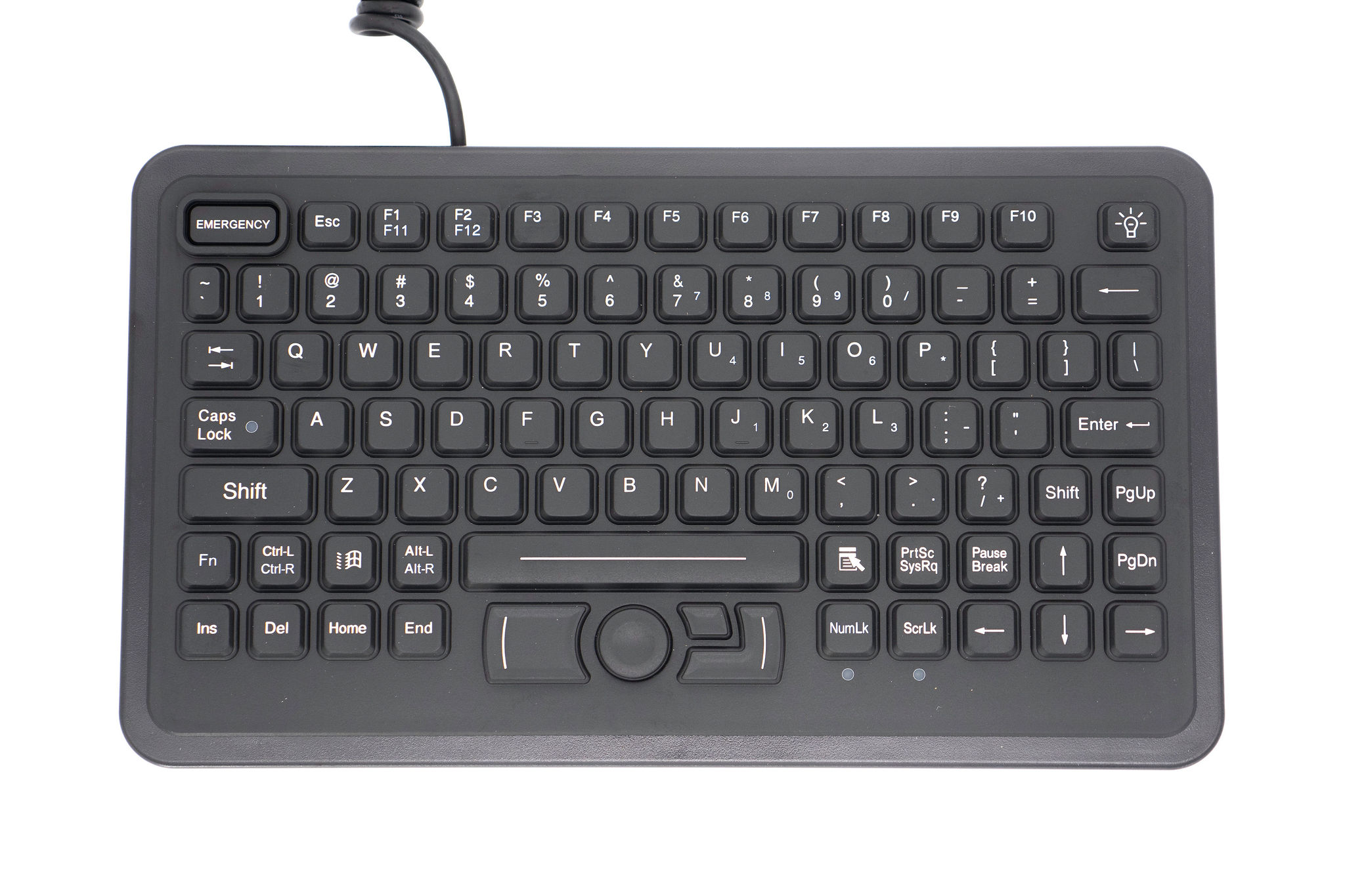

- Non-Incendive For Hazardous Environments
