SLK-880-FSR-OEM USB SLK-880-FSR-OEM PS2 SLK-880-FSR-OEM FORCE-SENSING-RESISTOR SLK-880-FSR-OEM DUSTPROOF SLK-880-FSR-OEM CUSTOMISABLE SLK-880-FSR-OEM CUSTOMISABLE

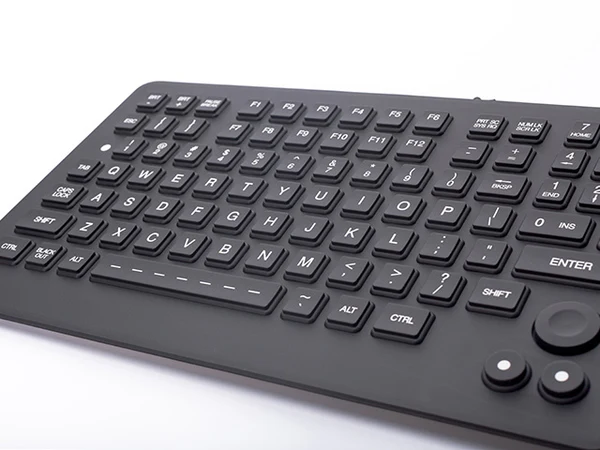

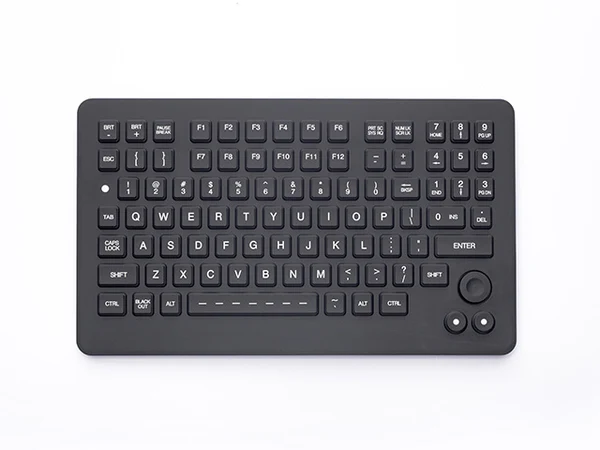

SLK-880-FSR iKey Keyboard

SLK-880-FSR iKey Keyboard

SLK-880-FSR-USB-H iKey Keyboard

SLK-880-FSR-USB-H iKey Keyboard

SLK-880-FSR-OEM iKey Keyboard

The SLK-880-FSR-OEM exceeds NEMA 4X requirements when properly installed and is fully-submersible, meeting IP68 specifications.

SLK-880-FSR-OEM Features

  • Adjustable LED Backlighting
  • Integrated Fsr Pointing Device
  • Optional NVIS Compliant Green B Backlighting
  • Meets NEMA 4X (IP66) Specifications
  • Various Keyboard and Language Layout Options

SLK-880-FSR-OEM Keyboard Options



The SLK-880-FSR-OEM exceeds NEMA 4X requirements when properly installed and is fully-submersible, meeting IP68 specifications. Unique features of the SLK-880-FSR-OEM include a conductive plastic case, adjustable green backlighting that is also available in a night vision (NVIS) compatible configuration, and an integrated Interlink Electronics Force Sensing Resistor (FSR) pointing device.

Specification
Manufacturer or Brand iKey
Mounting Format OEM
IP Rating IP66
Interface PS2, USB
Case Material No Case
Backlight Red
Certifications UL60950
Temperature Rating STORAGE: -40F to +167F (-40C to +75C) OPERATING: -40F to +158F (-40C to +70C)
Humidity 100% Humidity Resistant (when properly installed)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Dimensions 11.23" x 6.62" x 0.17" (w-h-d) 285.2mm x 168.1mm x 4.3 mm
Warranty 1 Year Limited Warranty
Cable 6 ft. straight (1.8 m)
Compatibility USB: All Windows and Macintosh OS
Flammability PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO
Function Keys 12 Keys
Key Feedback Tactile with Mechanical Snap
Key Material Industrial Silicone Rubber
Key Switch MATERIAL: Industrial Silicone Rubber LIFE: Greater Than 10 Million Cycles TRAVEL: 0.055 in. ACTUATION FORCE: 6.35 oz. +/- 0.71 oz (180g +/- 20g) FEEDBACK: Tactile with Mechanical Snap
Lifespan >10 Million Actuations
Mounting Filter Desktop
No. Of Keys 88
Pointing Device Force Sensing Resistor
Power USB: 300mA@5V (from CPU port)
Product Weight 1.75 lbs +/- 0.10 lbs (0.79 kg +/- 0.05 kg)
Shock 3 x 11 ms Pulses of 50g on each of 3 Axes
Switch Force (180g +/- 20g)
Switch / Key Travel 0.055 in (1.4mm)
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
  • Adjustable LED Backlighting
  • Integrated Fsr Pointing Device
  • Optional NVIS Compliant Green B Backlighting
  • Meets NEMA 4X (IP66) Specifications
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request
The iKey SLK-880-FSR-OEM is used in a wide range of industries for a broad range of rugged applications. The most common applications for the iKey SLK-880-FSR-OEM Keyboard are listed below:-

  • Broadcast Consoles
  • Factory Floor
  • Food Processing
  • Helicopter Consoles
  • Industrial Automation
  • Marine Consoles
  • Smart Factory
  • Industry 4.0

These are just some of the applications for the iKey SLK-880-FSR-OEM Keyboard The potential applications extend further than those shown above. For further information about the iKey SLK-880-FSR-OEM Keyboard or to check if the product is suitable for your application, please do not hesitate to contact us.
We take pride in our highly skilled in-house technical team and our strong relationships with manufacturers. Together, we are well-equipped to provide you with an array of options and configurations for the iKey SLK-880-FSR-OEM Keyboard to suit your requirements. These options include:

  • Keyboard Layout
  • Keyboard Language
  • Cable Type
  • Cable Length
  • Interface

If your application requires unusual or individual modifications not listed above for the iKey SLK-880-FSR-OEM Keyboard, please contact us with your exact requirements and we will help create a custom solution to meet your needs.

The iKey SLK-880-FSR-OEM Keyboard has a 1 Year Limited Warranty against defects in workmanship and materials from the date of shipment, (unless otherwise agreed in writing)

To obtain service under this warranty, the warranty-eligible product, iKey SLK-880-FSR-OEM Keyboard, must be presented to us here in the UK.

For further information on the above or for repairs and service outside the the scope of warranty, please visit the warranty section of our webiste.
