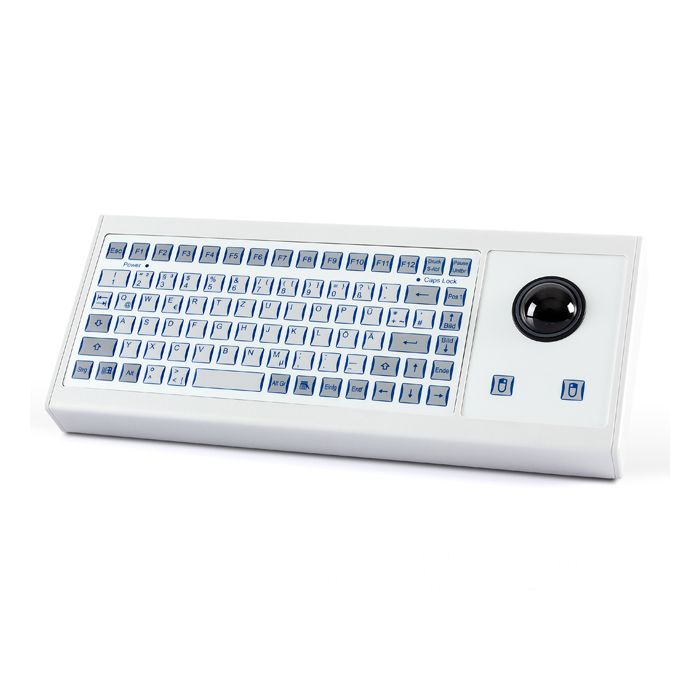

InduKey TKF-085a-TB38-KGEH Industrial Keyboard

  • IP65 RATED
  • SHOCK
  • WINDOWS OS
  • BACKLIGHT
  • TRACKBALL
  • MECHANICAL KEYS
  • PRECISION INPUT
  • USB

Designed for industrial and field environments, the InduKey TKF-085a-TB38-KGEH Industrial Keyboard offers a sealed, robust interface to endure continuous use and exposure to moisture. Featuring a plastic casing and silicone overlay resistant to 100% humidity, it is suited for wet or variable conditions typical in industrial settings. The integrated 38 mm mechanical trackball and gold-plated domes deliver accurate tactile feedback, supporting precise control in demanding scenarios. Its keys sustain over 10 million actuations, backed by vibration tolerance and shock resistance compliant with rigorous testing including 3x 50g shock pulses on multiple axes.

The keyboard functions effectively across a temperature range of 0°C to +70°C and supports Windows and Macintosh systems via PS/2 or USB interfaces. Meeting RoHS and CE certifications, the TKF-085a-TB38-KGEH combines field-ready sealing with durable design and reliable longevity for continuous-duty applications where consistent input quality is necessary.

TKF-085a-TB38-KGEH Features

  • Key Full-Embossing Frame
  • With Foil-Edge-Protection
  • Integrated 38 mm Trackball
  • Resistant Foil Surface
  • Resistant Against Dirt, Dust and Liquids (IP65)
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

Germany

Backlight

Red

Case Material

Plastic

Certifications

RoHS Compliant, CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

350 x 138 x 49 mm

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

LENGTH: 4 ft coiled (1.2m) DESIGN: PS/2 or USB Cable

Compatibility

All Windows and Macintosh Operating Systems

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

24 Keys

Input

Pin Header 2 x 17-pole 2.54 (2-row)

Interface Connector

MICS/SMD4

Key Feedback

Tactile with Mechanical Snap

Key Material

Aluminium

Key Switch

Gold Plated Domes

Layers

2

Lifespan

>10 Million Actuations

No. Of Keys

85

Operating Force

3.0 N

Operating Principle

mechanical

Pointing Device

Trackball

Pointing Device Operating Principle

Mechanical

Power

PS/2: KEYBOARD: 200mA@5V (from Keyboard port) USB: 200mA@5V (from CPU port)

Product Weight

900 g

Programmable

Programmable

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Supply Current

10 mA

Supply Voltage

5 V DC

Switch Force

200g (+/- 20g)

Switch / Key Travel

0.6 mm

Switching Cycles

approx. 1 mill. (per key

Trackball Diameter

38 mm

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -25C to +80C OPERATING:0C to +70C

The InduKey TKF-085a-TB38-KGEH Industrial Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The TKF-085a-TB38-KGEH supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defense and Military, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Oil and Gas.

Across these sectors, the TKF-085a-TB38-KGEH is typically used in applications such as Asset Tracking And Management, Industrial HMI And Machine Interfacing, Process Control And Shop-Floor Monitoring, Secure Access, Authentication, And Control Terminals, Vehicle-Mounted Computing (MDTs / VMCs), Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the TKF-085a-TB38-KGEH across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the TKF-085a-TB38-KGEH is appropriate for your specific application, please contact us.

The InduKey TKF-085a-TB38-KGEH Industrial Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, InduKey TKF-085a-TB38-KGEH Industrial Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the InduKey TKF-085a-TB38-KGEH Industrial Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the InduKey TKF-085a-TB38-KGEH Industrial Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the InduKey TKF-085a-TB38-KGEH or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
