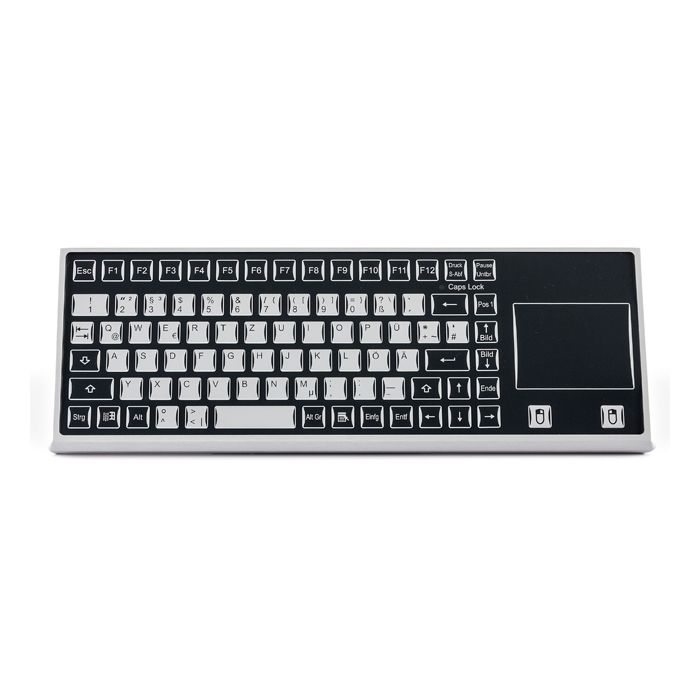

InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard

Designed for industrial environments, the InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard offers a compact and durable input solution resistant to dust, grease, and frequent cleaning. Its aluminium enclosure ensures robust protection, supported by an IP65 rating that safeguards against dust and water ingress. The keyboard includes a capacitive touchpad that functions reliably even when wearing gloves, eliminating the need for additional pointing devices.

Its membrane surface is low-maintenance and suitable for disinfection, meeting hygiene demands. The device endures approximately one million keystrokes, supporting continuous-duty use across a temperature range of 0 to 70 degrees Celsius. Mounting is secure via front panel threaded bolts, providing stable installation. RoHS and CE certifications confirm its compliance with safety and environmental standards, making it a dependable choice for fixed industrial deployments where reliable input is essential.

TKF-085c-TOUCH-MGEH Features

  • Key Full-Embossing Frame
  • Integrated Capacitive Touchpad
  • Rugged Construction For Reliable Functionality
  • Resistant Foil Surface
  • Resistant Against Dirt, Dust and Liquids (IP65)

Request a Quote

Manufacturer

Certifications & Standards

Ruggedness

IP Rating

Mounting Format

Country Of Manufacture

Germany

Case Material

Plastic

Certifications

RoHS Compliant, CE

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

335.5 x 116 x 15.5 mm

Active Area

59 x 42 mm

Ball Material

phenolic resin

Compatibility

All Windows and Macintosh Operating Systems

Key Material

Aluminium

Key Switch

Gold Plated Domes

Mounting Type

front panel with threaded bolts

No. Of Keys

85

Operating Force

3.0 N

Operating Principle

capacitive

Pointing Device

Touchpad

Pointing Device Operating Principle

Capacitive

Product Weight

1000 g

Resolution

100 -300 dp

Switch / Key Travel

0.6 mm

Switching Cycles

approx. 1 mill. (per key

Trackball Diameter

38 mm

Temperature Rating

STORAGE: -25C to +80C OPERATING:0C to +70C

The InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The TKF-085c-TOUCH-MGEH supports a wide range of industries and operational applications.

Common deployment industries include: Energy and Utilities, Food And Beverage Processing, Healthcare And Medical, Industrial Manufacturing, Logistics And Supply Chain, Pharmaceutical, Public Sector, Retail.

Across these sectors, the TKF-085c-TOUCH-MGEH is typically used in applications such as Cold-Store And Freezer Operations, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Warehouse Picking And Put-Away.

These examples demonstrate the versatility of the TKF-085c-TOUCH-MGEH across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the TKF-085c-TOUCH-MGEH is appropriate for your specific application, please contact us.

The InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard comes with a 1 Year Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the InduKey TKF-085c-TOUCH-MGEH Industrial Keyboard, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the InduKey TKF-085c-TOUCH-MGEH or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
