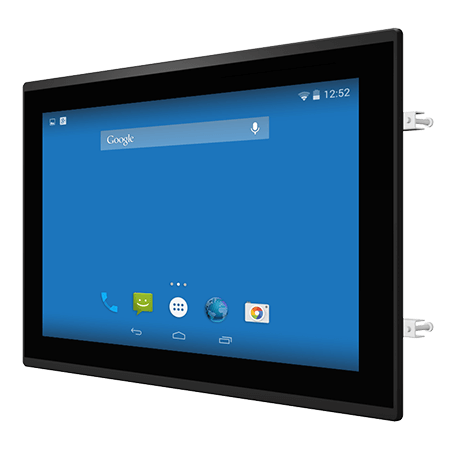

Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC
Designed for industrial automation, the Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC provides a durable interface for factory control and process monitoring. It features a high-definition 15.6 inch projected capacitive touchscreen enclosed in a front IP65-rated metal housing, protecting against dust and water exposure. The fanless metal chassis supports reliable continuous operation between 0°C and 50°C, while its vibration and shock resistance meet MIL-STD requirements for mechanical durability.
Powered by an NXP i.MX6 dual-core processor and running Android 6.0, this panel PC integrates efficiently with industrial networks using USB, LAN RJ45, and RS485 connectivity. Its low power consumption and fanless design enhance thermal stability. Certifications such as CE and FCC confirm compliance with industrial standards. The 1920×1080 resolution display offers clear visuals with 300 nits brightness and 800:1 contrast ratio, making it suitable for diverse automation tasks. This unit supports VESA panel mounting and weighs 2.2 kg, making installation practical in control room or equipment panel settings.
W15FA3S-ELA4 Features
- 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- NXP i.MX6 Dual Core 1GHz, Android HMI Panel PC
- Fanless cooling system and Ultra-low power consumption
- Front IP65 Water and Dust Proof
- 1 x USB; 1 x RS485; 1 x USB OTG; 1 x RJ45/LAN
Request a Quote
Product Type
IP Rating
Screen Size
Manufacturer
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1920x1080
Panel Brightness
300.0 nits
Contrast Ratio
800:1
View Angles
85-85-85-85
Active Area
344.16x193.59 mm
Processor
NXP i.MX6 Dual Core- 1.0GHz
Memory
1GB 2GB (Optional)
Storage
eMMC: Onboard 8 GB
Operating System
Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional)
Dimension
387.6 x 257.7 x 52.5 mm
Cut out
371.6 x 223.5 mm
Weight
2.2 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
1 x USB2.0 (Type-A) 1 x USB OTG
Serial Port
1 x RS485- 3pin Terminal block
LAN
1 x LAN RJ45 Connector
Indicator
1 x LED Indicator for storage
Power Input
1 x 12~24V DC- 3-Pin Terminal Block
Button
1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Mounting clips VESA screws
Power Rating
12V~24V with isolation- 3-Pin Terminal Block
Adapter
12V 50W
The Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15FA3S-ELA4 supports a wide range of industries and operational applications.
Common deployment industries include: Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Marine And Offshore, Offshore Operations, Oil and Gas, Pharmaceutical.
Across these sectors, the W15FA3S-ELA4 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access.
These examples demonstrate the versatility of the W15FA3S-ELA4 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15FA3S-ELA4 is appropriate for your specific application, please contact us.
The Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15FA3S-ELA4 15.6 Inch Android HMI Panel PC or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15FA3S-ELA4 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
