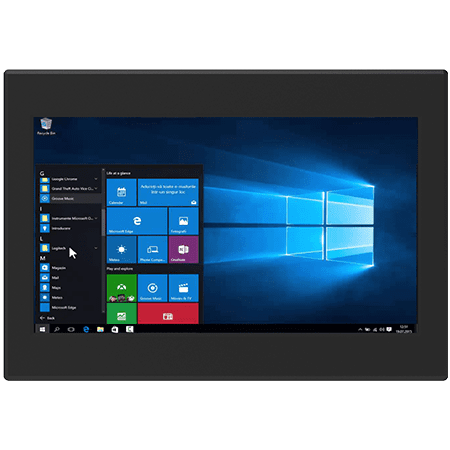

Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC
This product has reached End of Life (EOL) status and is no longer in production. Manufacturer support, updates, and spare parts may be discontinued.
All information is provided for reference only. Availability cannot be guaranteed.
Please contact us to discuss current alternatives or recommended replacement models.
For industrial automation and control, the Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC offers a robust field-ready solution. This panel PC integrates a metal housing with an IP65-rated front bezel to protect against dust and water ingress, ideal for secure mounting within industrial control panels. Its fanless design supports reliable continuous-duty operation in ambient temperatures up to 50°C, reducing maintenance needs.
Powered by an Intel Core i5-1235U processor, the W15IAD3S-PMA2 balances dependable performance with energy efficiency, suitable for monitoring and control tasks. It features dual Intel 2.5 Giga LAN controllers for network reliability and multiple industrial-standard serial ports (RS232/422/485) enabling integration with various industrial devices. The panel supports resistive touch and optional Windows 11 IoT Enterprise or Linux Ubuntu 22.04 operating systems, alongside TPM 2.0 for hardware security. Its 15.6-inch display offers 1366×768 resolution and 400 nits brightness, suited to industrial environments. Certified to CE and FCC standards, it withstands industrial electromagnetic conditions and vibration. This combination of sealed construction, fanless cooling, and validated connectivity makes the W15IAD3S-PMA2 a reliable panel PC for demanding industrial deployments.
W15IAD3S-PMA2 Features
- 15.6” 1366 x 768 Resolution Panel Mount PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
15.6 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1366x768
Panel Brightness
400.0 nits
Contrast Ratio
500:1
View Angles
85-85-80-80
Active Area
344.232x195.536 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
400 x 280 x 74.5 mm
Cut out
368.3 x 232 mm
Weight
3.9 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W15IAD3S-PMA2 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Rail And Transport.
Across these sectors, the W15IAD3S-PMA2 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the W15IAD3S-PMA2 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W15IAD3S-PMA2 is appropriate for your specific application, please contact us.
The Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W15IAD3S-PMA2 15.6 Inch Panel Mount Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W15IAD3S-PMA2 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
