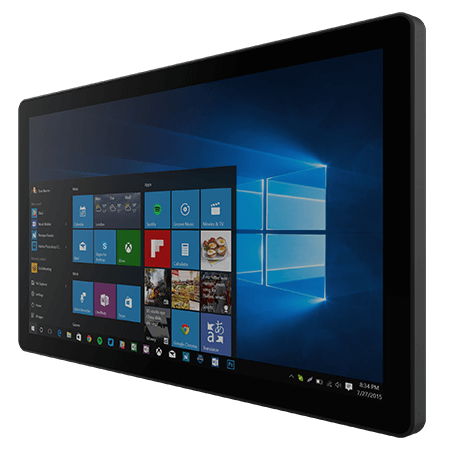

Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC
For teams working across industrial automation, the Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC offers a robust human-machine interface designed for continuous operation in demanding environments. It features an Intel Core i5-1135G7 processor within a fanless casing and dust-sealed front panel rated to IP65, supporting reliable performance despite exposure to dust and water splashes. The 21.5-inch projected capacitive multi-touch screen includes optional anti-glare coating, delivering clear visibility in varied lighting.
This panel PC supports various industrial operating systems including Windows 11 IoT and Ubuntu 22.04, and includes TPM 2.0 security for enhanced data protection. Equipped with dual Intel Ethernet controllers, USB 3.2 ports, and an RS232/422/485 serial port, it integrates well within diverse network architectures. Operating within temperatures from 0 C to 50 C and humidity levels of 10% to 90% non-condensing, it suits a wide range of factory and outdoor conditions.
W22IT3S-PTA3 Features
- Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) Processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
21.5 inches
Touch / Glass
Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional)
Resolution
1920x1080
Panel Brightness
250.0 nits
Contrast Ratio
3000:1
View Angles
89-89-89-89
Active Area
476.64x268.11 mm
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory
1 x SO-DIMM- DDR4 3200 MHz- 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
*Note：Only Windows 11 support Wake on touch Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
Dimension
530 x 322 x 56 mm
Mounting
VESA Mount
Enclosure
Plastic
Cooling System
Fanless Design
USB Port
2 x USB 3.2
Serial Port
1 x RS232/422/485 (Default RS232)
LAN
2 x RJ45
Video
1 x HDMI (Optional)
Audio
2 x Speaker
Power Rating
12V DC
Button
1 x Power Button 1 x Reset Button"
The Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The W22IT3S-PTA3 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Offshore Operations, Oil and Gas, Public Sector.
Across these sectors, the W22IT3S-PTA3 is typically used in applications such as Construction Site Supervision And Reporting, Industrial HMI And Machine Interfacing, Inventory Management And Stock Control, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Warehouse Picking And Put-Away.
These examples demonstrate the versatility of the W22IT3S-PTA3 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the W22IT3S-PTA3 is appropriate for your specific application, please contact us.
The Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate W22IT3S-PTA3 21.5 Inch PT Series HMI Touch Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate W22IT3S-PTA3 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
