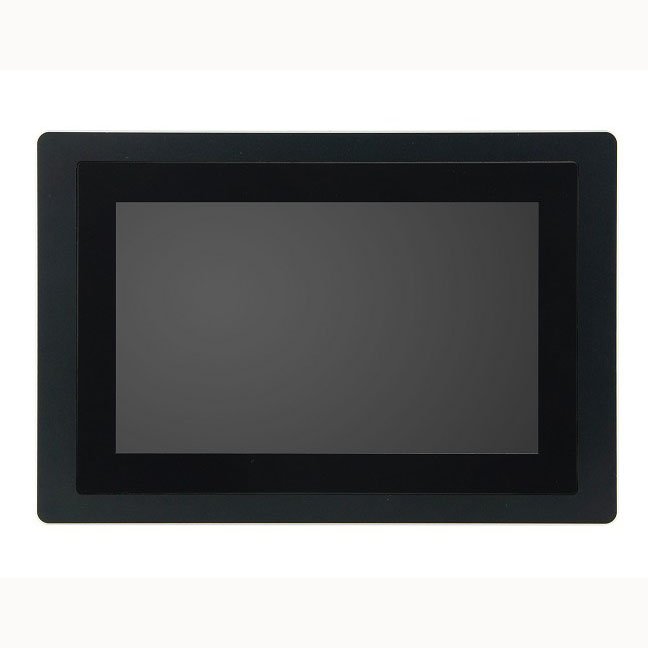

iBASE BYARM-W071-PC Panel PC
Designed for industrial and field deployments, the iBASE BYARM-W071-PC Panel PC provides reliable computing in tough conditions. It features a robust aluminium chassis with a hairline-finished front bezel, supporting impact resistance and long-term durability. The 7-inch widescreen display is equipped with a projected capacitive touch panel, sealed against dust and moisture for consistent operation in harsh environments.
This fanless unit is powered by a Freescale i.MX6 Dual-Core Cortex A9 processor, enabling silent running and reduced maintenance. It can operate comfortably within a temperature range from -20°C to 60°C, aided by a built-in aluminium heat sink and weatherproof construction. Connectivity options include HDMI, Gigabit Ethernet LAN, multiple serial ports, and USB 2.0 interfaces. Optional Wi-Fi and Bluetooth expand wireless capabilities, enhancing deployment flexibility.
The BYARM-W071-PC supports installation in varied industrial settings such as manufacturing and logistics, with VESA and panel mounting options. Its CE and RoHS certifications confirm compliance with industry standards, while shock and vibration tolerance reinforce its continuous-duty suitability. The device runs on Android 4.x and offers onboard memory and expansion slots for adaptable integration.
BYARM-W071-PC Features
- Projected Capacitive Touch
- Aluminum Front Bezel, IP65 Rated
- Supports Android 4.4
- Compact Design
- With Panel Mounting and VESA Mounting
- 12V To 24V DC ( 20%) Wide-Range Power Input
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Processor
Operating System
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
211.5mm x 143.5mm x 45.8mm 8.33 x 5.65 x 1.8
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
-20C~ 60C (-4CF~140CF)
Ordering Info
BYARM-W071-PC RISC 7ï¾€ï¾ Panel PC with projected capacitive touch, I.MX6 Cortex A9 Dual CPU, 1GB DDR3 on board, supports Android, w/ 60W power adaptor/Android 4.3x
Additional Graphics
None
Audio
2x speaker
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
2x Speaker
Chassis Material
Aluminum sliver with front bezel hairline
Construction
Aluminum front bezel and white steel back cover with aluminum heat-sink
Contrast
33.334027777778
Digital I/O
1x D-SUB9 connector at left side for 3in/3out/VCC/G/G
Display Interface
1x HDMI
Display Type
7ï¾€ï¾ TFT-LCD
Expansion Slot
None
HDD
None/Onboard eMMC 4GB
Internal Expansion Bus
1x Mini PCI-E half/full size 1x Mini PCI-E half size
Interface
USB
Keyboard/Mouse
None
LAN
1x RJ45 GbE LAN
Light Transmission (%)
0.85
Luminance (cd/m2)
500 cd/m2
Max. Color
16.7M
Max. Resolution
1024 x 600
Membrane Control
None
Memory
1 GB DDR3L on board
Mounting
Panel mount, VESA 50x50 mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E(x1) [Full/half-sized]
Operating System Support
Android 4.X
Point of touch
2
Power
1x power jack 1x power reset button
Power Button
Rock switch
Power Input
12V ~24V DC input
Power Input Range
12V~24V DC
Processor, Chipset
Freescale i.MX6 Dual Core @ 800MHz
Removable Slot
1x SD slot, supports up to 32GB
RS-232
1
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
1x D-SUB9 RS-232/422/485 COM1 1x COM2
Thermal Design
Fanless
Touch Type
Projected capacitive touch
Touch Type Filter
Capacitive
USB
1x USB 2.0 Type A flag type 1x mini USB OTG support
USB 2.0
0
USB 3.0
3
View Angle (H/V)
160ï¾°/160ï¾°
Wireless
Optional Wi-Fi/BT
Processor
i.MX6
Storage Temperature
Rating: -20C ~ 80C (-4CF~176CF)
The iBASE BYARM-W071-PC Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The BYARM-W071-PC supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Warehousing.
Across these sectors, the BYARM-W071-PC is typically used in applications such as Industrial HMI And Machine Interfacing, Predictive Maintenance And Condition Monitoring, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the BYARM-W071-PC across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the BYARM-W071-PC is appropriate for your specific application, please contact us.
The iBASE BYARM-W071-PC Panel PC comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE BYARM-W071-PC Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE BYARM-W071-PC Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
