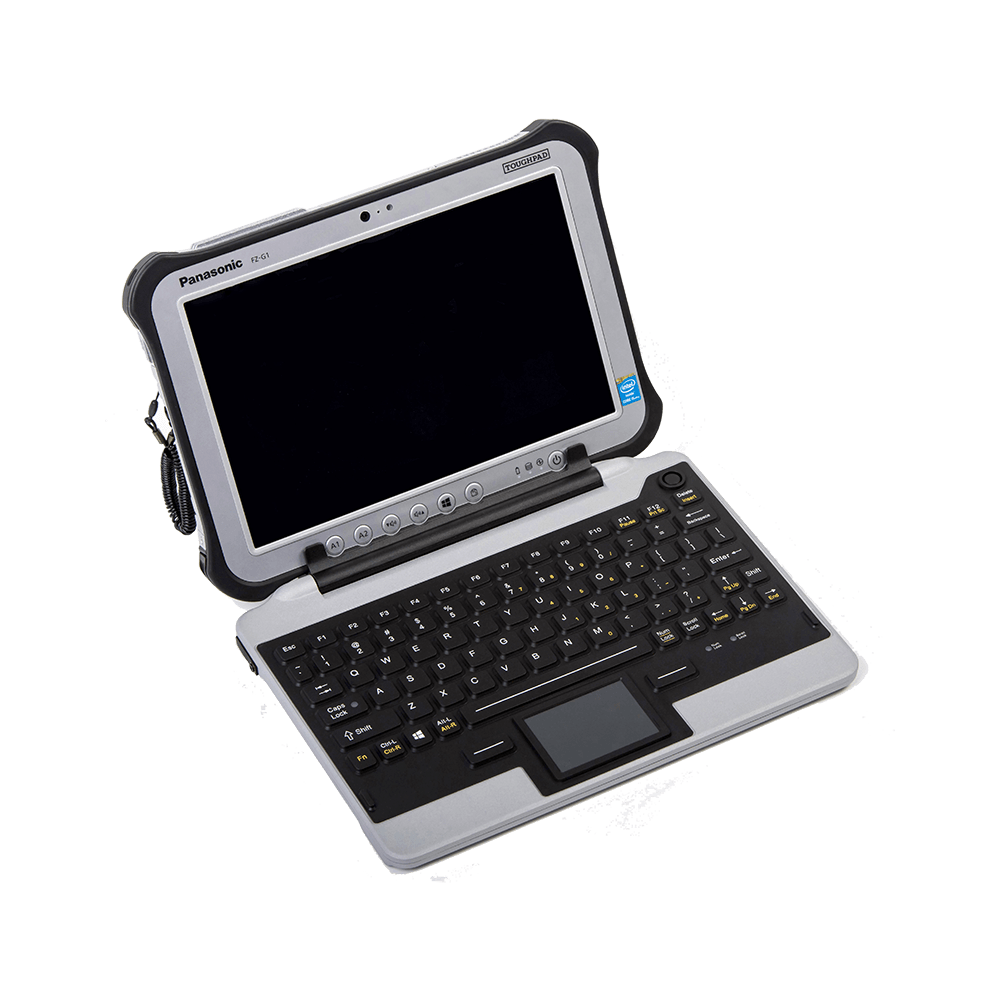

iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard

The iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard is designed for Panasonic FZ-G1 tablet users who need a durable mobile input device in industrial or field environments. Its robust metal case and industrial silicone rubber keys provide resistance to mechanical shocks and vibration, supporting operation across temperatures from -20C to 60C. This keyboard securely snaps onto the Panasonic FZ-G1, shielding the display while delivering tactile feedback through carbon contact technology rated for over 10 million actuations. The clip-on design ensures the screen remains protected during use, while the sealed construction guards against dust and spills.

A touchpad with mechanical snap complements the keyboard for precise pointer control, and MIL-STD-810 certifications confirm its ability to tolerate harsh handling, including 50g shock pulses and sustained vibration. Without backlighting or USB ports, this field-ready device focuses on reliability and practical usability in continuous-duty deployments. CE and RoHS certifications underpin its compliance for industrial use, making it suitable for Panasonic FZ-G1 users requiring a reinforced and sealed input solution that withstands demanding operational settings.

IK-PAN-FZG1-NB-V5 Features

  • Snap on keyboard for Panasonic FZ-G1 tablet
  • Fully Rugged Keyboard
  • Provides Screen Protection for FZ-G1 Tablet
  • Improved Latching Mechanism
  • Resistant to Dirt, Dust, and Spills

Request a Quote

Format

IP Rating

Manufacturer

Country Of Manufacture

United States

Case Material

Magniusm Alloy

Certifications

CE, RoHS compliant

Custom Options Products

Keyboard Layout,Keyboard Language,Keypad Layout,Backlight Colour,Custom Logo,Epoxy Coating,PU Coating

Dimensions

277.88 x 231.90 x 42.93 mm (10.94 x 9.13 x 1.69 inches)

Function Keys

12Keys

Housing Colour

Silver

Case Material

Robust Metal Case

Compatibility

FZG1Panasonic Tablet Only

Connectivity

Clip-On to Panasonic FZG1 Tablet

Function Keys

12 Function Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Spacing

18 mm

Key Switch

Carbon Contact Technology

LED Indicators

Num Lock, Scroll Lock, Caps Lock

Lifespan

>10 Million Actuations

Mounting Type

Panasonic FZ-G1 Clip On

No. Of Keys

88

Operating Force

Adjustable

Pointing Device

Touchpad

Product Weight

1.8 lbs +/- 0.10 lbs (0.90 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Vibration

POWER SPECTRAL DENSITY: .04g/HZ FREQUENCY RANGE: 20Hz-2Khz DURATION OF TEST PER AXIS: 3 hours

Operating Temperature

-20C to 60C (-4F to 140F)

Ordering Info

IK-PAN-FZG1-NB-V5-XX - XX = Keyboard Layout i.e. UK, US..

Shock

3 X 11 ms pulses of 50g on each of 3 axes

Storage Temperature

-40C to 75C (-40F to 167F)

The iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard is designed and engineered for use in demanding environments where reliability, durability are essential. The IK-PAN-FZG1-NB-V5 supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Rail And Transport.

Across these sectors, the IK-PAN-FZG1-NB-V5 is typically used in applications such as Construction Site Supervision And Reporting, Field Data Capture And Reporting, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Mobile Workforce Operations, Process Control And Shop-Floor Monitoring, Security And Surveillance Operations, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the IK-PAN-FZG1-NB-V5 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the IK-PAN-FZG1-NB-V5 is appropriate for your specific application, please contact us.

The iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard, must be presented to RUGGED in the United Kingdom.

For more information about the iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey IK-PAN-FZG1-NB-V5 Snap-On Panasonic Rugged Keyboard or require a custom solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey IK-PAN-FZG1-NB-V5 or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
