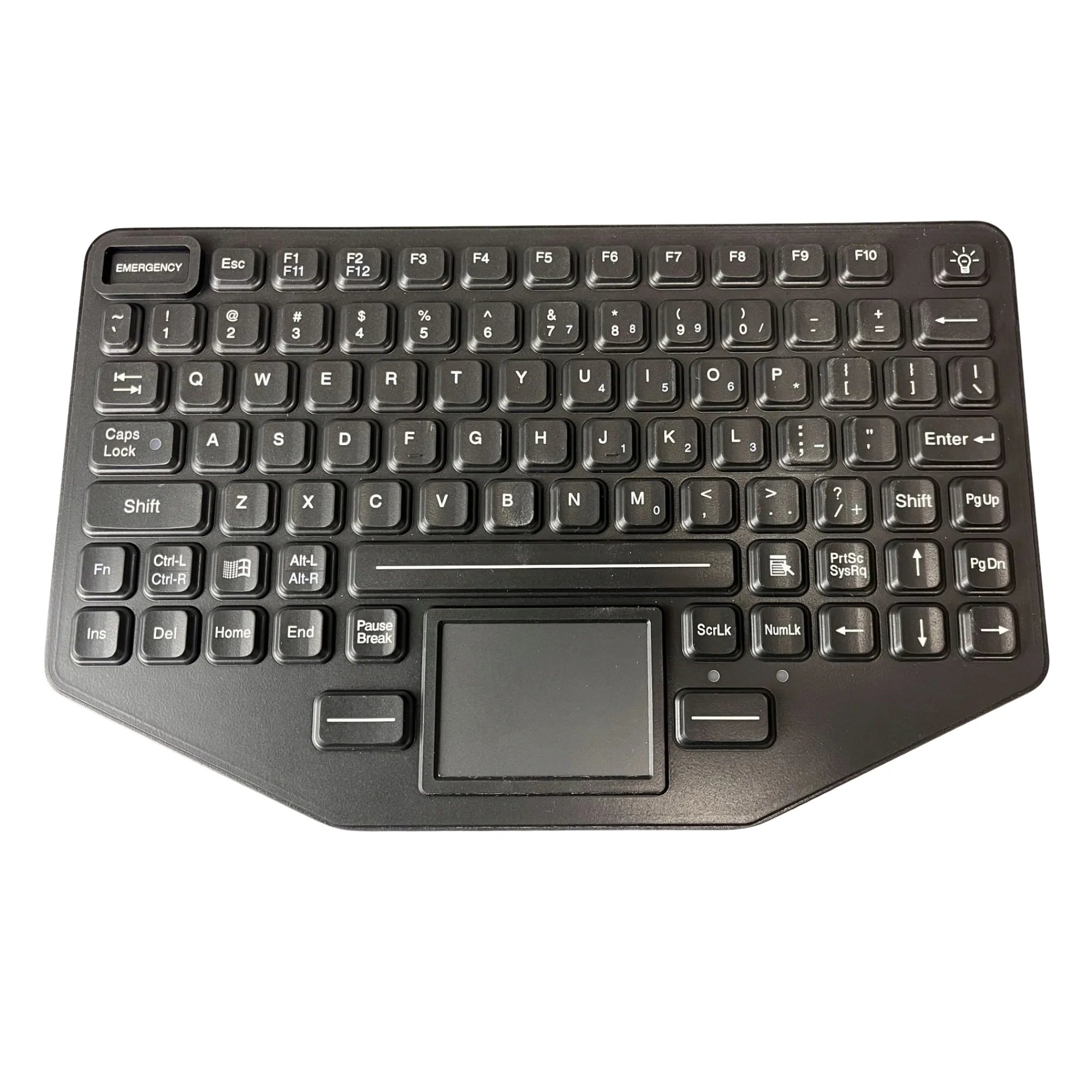

iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable

The iKey SL-86-911-TP-RC-SLIM rugged keyboard is designed for vehicle-based and mobile computing where reliability, compact design, and fast disconnection are critical. Built on the trusted SL-86-911 platform, this model features a slim enclosure and a removable USB-C cable, allowing users to disconnect the keyboard quickly without removing the full mounting system.

Engineered for harsh environments, the keyboard is fully sealed to NEMA 4X and IP65 standards, protecting against water, dust, and debris. This makes it well suited to public safety vehicles, transport fleets, utilities, and field service operations where equipment is exposed to demanding conditions.

The integrated touchpad removes the need for external pointing devices, supporting a cleaner and more efficient in-vehicle setup. Red backlit keys provide clear visibility in low-light conditions, while the 86-key layout with Fn functionality ensures full control in a compact footprint. A dedicated emergency key adds immediate access to critical commands when required.

As part of the iKey rugged range, the SL-86-911-TP-RC-SLIM delivers long-term durability and consistent performance, helping reduce downtime in mission-critical environments.

SL-86-911-TP-RC-SLIM Features

  • Designed For Vehicle Mount
  • One-Touch Emergency Key
  • Integrated Touchpad
  • USB -C
  • Various Keyboard and Language Layout Options
  • Customisation Available On Request

Request a Quote

Manufacturer

Certifications & Standards

IP Rating

Interface

Country Of Manufacture

United States

Backlight

Red

Case Material

ABS Polycarbonate

Certifications

IP Rated, NEMA 4X, CE UL60950, FCC Part 15 Class B

Custom Options Products

Keyboard Layout,Keyboard Language,Cable Type,Cable Length,Interface

Dimensions

11.193" x 7.09" x 1.024" (w-h-d)

Housing Colour

Black

Humidity

100% Humidity Resistant

Cable

Single-Cable USB-C

Compatibility

PS/2 KEYBOARD/TOUCHPAD: All Windows Operating Systems USB KEYBOARD/TOUCHPAD: All Windows and Macintosh OS

Flammability

PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB INTERFACE CABLE: 94 VO

Function Keys

10 Keys

Key Feedback

Tactile with Mechanical Snap

Key Material

Industrial Silicone Rubber

Key Switch

MATERIAL: Industrial Silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g) FEEDBACK: Tactile with mechanical snap

Lifespan

>10 Million Actuations

No. Of Keys

86

Pointing Device

Touchpad

Power

TOUCHPAD: 10mA@5V (from Mouse port) USB-C: 210mA@5V (from CPU port)

Product Weight

1.56 lbs +/- 0.10 lbs (0.7076 kg +/- 0.05 kg)

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Switch Force

200g (+/- 30g)

Switch / Key Travel

0.055 in (1.4mm)

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours

Shock

3 x 11 ms Pulses of 50g on each of 3 Axes

Temperature Rating

STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (4-0F to +158F)

The iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable is designed and engineered for use in demanding environments where reliability, durability are essential. The SL-86-911-TP-RC-SLIM supports a wide range of industries and operational applications.

Common deployment industries include: Construction, Defence And Military, Emergency Services, Energy and Utilities, Industrial Manufacturing, Marine And Offshore, Rail And Transport, Security And Surveillance.

Across these sectors, the SL-86-911-TP-RC-SLIM is typically used in applications such as Emergency Dispatch And Incident Management, Marine Bridge And Vessel Control Systems, Secure Communications And Command-And-Control, Vehicle-Mounted Computing (MDTs / VMCs).

These examples demonstrate the versatility of the SL-86-911-TP-RC-SLIM across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.

For further information, or to assess whether the SL-86-911-TP-RC-SLIM is appropriate for your specific application, please contact us.

The iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable comes with a 3 Years Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).

To receive service under this warranty, the eligible product, iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable, must be presented to RUGGED in the United Kingdom.

For more information about the iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.

Do you need further details about the iKey SL-86-911-TP-RC-SLIM Rugged Vehicle Keyboard with Removable Cable, or would you like to discuss a customised solution or demonstration?

At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iKey SL-86-911-TP-RC-SLIM or need a custom solution designed specifically for you, our team of technical experts are ready to assist you.
