INOSP-151-RE iBASE Panel PC
The INOSP-151-RE is a 15″ stainless steel panel PC that utilizes the dual-core 1.86GHz Intel Atom Processor D2550 and Intel NM10 chipset providing high computing performance and low power consumption.
INOSP-151-RE Features
- High PerformanCE, Low Power Consumption
- Resistive Touch Panel
- IP65 Rated
- Supports 24V DC (Default) Power Input, Optional 48V Dc, 72V DC & 110V Dc
- Front Panel IP65 Protection and IP54 (Whole Unit)
- Projected Capacitive Touch
- Optical Bonding
Request for Quote (RFQ)
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
425 x 330 x 60
Humidity
10-90% Humidity Resistant (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 50C(with SSD/CFast)/ 0C~ 40C(with HDD)
Ordering Info

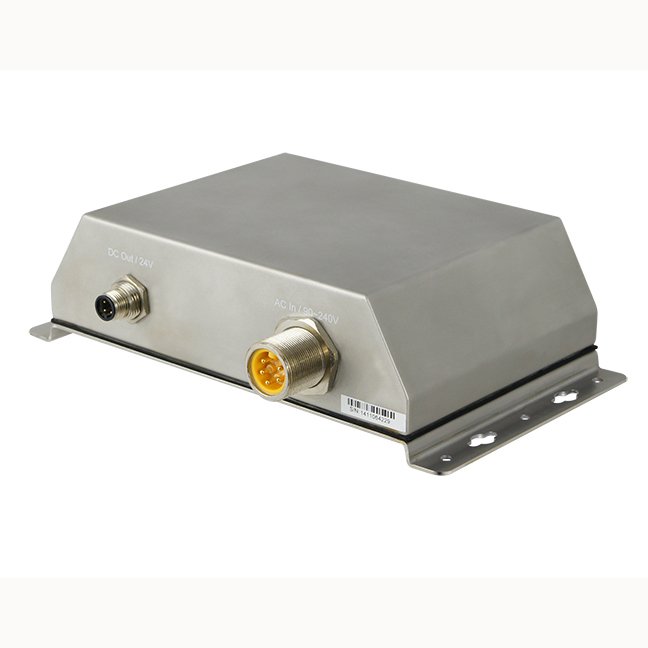

INOSP-151-RE 15ï¾€ï¾ Stainless Steel Panel PC, Intel Atom D2550 1.86GHz, 4GB DDR3 memory, 64G SSD, with resistive touch screen, w/o adaptor SSPA-24 90~240V AC input, 24VDC output IP56 stainless steel power adaptor 191B Cover IP65 I/O cover for INOSP, M12 connectors with LAN/USB2.0 x2/COM and power input, backward direction 191D Cover IP65 I/O cover for INOSP, M12 connectors with LAN/USB2.0 x2/COM and power input, downward direction Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Audio
1x speaker-out microjack 1x Mic-in microjack
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
225mm (W) x 156mm (D) x 35.8mm (H) 8.86"(W) x 6.14"(D) x 1.41"(H)
Chassis Material
1x DB-9 console connector on rear panel
Construction
304 stainless steel/ 316 stainless steel as option
Contrast
33.334027777778
Digital I/O
1x 6 pins terminal block 2in/2out/5VCC/Ground
Display Interface
None
Display Type
15" TFT-LCD
Expansion Slot
None
HDD
1x 2.5" SATA2
Internal Expansion Bus
1.5kg (3.307lbs)
Interface
Default RS-232, USB for option
Keyboard/Mouse
None
LAN
2x Gigabit LAN (RJ45)
Light Transmission (%)
80
Luminance (cd/m2)
500
Max. Color
16.2M
Max. Resolution
1024 x 768
Membrane Control
None
Memory
2x DDR3-1033 /1066 SO-DIMM, up to 4GB
Mounting
VESA mount, 100mm x 100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
1x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
24V (default) DC input Optinal 48V DC, 72V DC & 110V DC
Power
1x 3pin DC power connector 1x Power on/off rock switch
Power Button
1x 2.5" SATA HDD space, default 32G SSD
Power Input
12~36V DC input
Power Input Range
5~90%
Processor, Chipset
Intel Atom Processor D2550 (1M Cache, 1.86GHz)
Removable Slot
1x external CFast
Serial/Parallel
1x isolated RS-232/422/485, COM1 1x RS-232, COM3
Touch Type
Resistive touch
Touch Type Filter
Resistive
USB
2x USB 2.0 (USB Host. A-Type)
View Angle (H/V)
160ï¾°/160ï¾°
Processor
Intel
Storage Temperature
-20C~60C
The INOSP-151-RE iBASE Panel PC is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the INOSP-151-RE is commonly used:
These examples highlight the versatility of the INOSP-151-RE iBASE Panel PC across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Panel PC fits your specific needs, please contact us.
The INOSP-151-RE iBASE Panel PC comes with a Standard Manufacturers Limited Warranty + Option to Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, INOSP-151-RE iBASE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the INOSP-151-RE iBASE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the INOSP-151-RE iBASE Panel PC or require a custom solution?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iBASE INOSP-151-RE or need a custom Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
