iBASE IPPC17A9-RE Panel PC
The iBASE IPPC17A9-RE Panel PC is built around a robust aluminium front bezel and SGCC back cover with aluminium heat-sink, supporting durability in industrial settings such as manufacturing and retail. Its fanless design and solid-state components reduce mechanical wear, suitable for continuous 24/7 operation in environments exposed to vibration and dust. The 17″ TFT-LCD resistive touch screen offers flexible interaction, while dual GbE LAN ports and USB 3.0 connectivity support diverse industrial applications. Power input accommodates a wide DC range from 12V to 24V, enabling varied field and embedded deployments. It is certified CE and RoHS compliant with a sealed aluminium casing that operates reliably between 0 60 and 45 60C, storing safely from -20 60 to 80 60C.
Expansion options through PCI slots and Mini PCI-E enhance adaptability, and optional Wi-Fi/BT support adds wireless capability. Designed to deliver consistent performance with efficient thermal management, the IPPC17A9-RE is suited for industrial use requiring a rugged, sealed panel PC capable of long-term deployment.
IPPC17A9-RE Features
- Modularized Panel PC
- Intel 3rd Generation Core Processor
- IP65 Front Bezel
- Long Life Rtc Battery
Request a Quote
Product Type
Manufacturer
Ruggedness
IP Rating
Mounting Format
Processor
Operating System
Country Of Manufacture
Taiwan
Case Material
Aluminum
Certifications
CE, RoHS compliant
Custom Options Products
Interface,Processor,Memory,Storage,Connections,Operating System
Dimensions
430 x 365 x 109.5
Humidity
5%-90% @ 45C (non-condensing)
Operating System
Windows
Operating Temperature
0C~ 45C
Ordering Info
IPPC17A9-RE 17ï¾€ï¾ Modular Panel PC with resistive touch Intel Core i3-2340UE 1.3GHz CPU, 4GB DDR3-1333 SO-DIMM, 320G HDD, 12V-24V wide range DC input, w/o power adaptor Power adaptor AC 90~240V input, 12V DC output 84W power adaptor IBASE P/N: A005PS084W0050000P
Additional Graphics
VGA
Audio
1x Line-out micro jack 1x Mic-in micro jack
Backlight Lifetime(hrs)
50000
Built-in Speaker/MIC
None
Chassis Material
Aluminum front bezel and SGCC back cover with aluminum heat-sink
Construction
Aluminum & SPCC
Contrast
33.334027777778
Digital I/O
1x Digital I/O
Display Interface
1x DVI-I
Display Type
17" TFT-LCD
Expansion Slot
2x PCI slot
HDD
1x 2.5" SATA
Internal Expansion Bus
1x Mini PCI-E half/full size
Interface
USB
Keyboard/Mouse
None
LAN
2x RJ45 for GbE LAN
Light Transmission (%)
81
Luminance (cd/m2)
350
Max. Color
16.7M
Max. Resolution
1280 x 1024
Membrane Control
None
Memory
2x DDR3 1333 SO-DIMM up to 16GB
Mounting
Panel and VESA 75x75mm / 100x100mm
Mounting Type Filter
VESA, Panel Mount
Onboard Expansion Bus
2x Mini PCI-E half/full size
Operating System Support
Windows Embedded Standard 7, Windows 7 Pro for Embedded
Point of touch
1
Power
1x 3pin DC power connector
Power Button
Rock switch
Power Input
12~24V DC input
Power Input Range
12V DC
Processor, Chipset
Intel Core i3-2340UE 1.3 GHz
Removable Slot
1x CFAST slot
RS-232/422/485 Selectable under BIOS
1
Serial/Parallel
3x DB9 for COM1/2(RS-232/422/485), COM 3 (RS-232 only
Thermal Design
Fanless
Touch Type
Resistive
Touch Type Filter
Resistive
USB
4x USB connector; USB1/2 USB 2.0 only, USB3/4 USB 3.0
USB 2.0
4
USB 3.0
0
View Angle (H/V)
170ï¾°/170ï¾°
Wireless
Optional Wi-Fi/BT
Processor
Intel
Storage Temperature
-20C ~ 80C
The iBASE IPPC17A9-RE Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The IPPC17A9-RE supports a wide range of industries and operational applications.
Common deployment industries include: Industrial Manufacturing, Logistics And Supply Chain, Rail And Transport, Retail.
Across these sectors, the IPPC17A9-RE is typically used in applications such as Digital Signage And Information Terminals, Industrial HMI And Machine Interfacing, Medical Carts And Clinical Mobile Workstations, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, Secure Access, Authentication, And Control Terminals.
These examples demonstrate the versatility of the IPPC17A9-RE across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the IPPC17A9-RE is appropriate for your specific application, please contact us.
The iBASE IPPC17A9-RE Panel PC comes with a Standard Manufacturers Limited Warranty + Option To Extend against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, iBASE IPPC17A9-RE Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the iBASE IPPC17A9-RE Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the iBASE IPPC17A9-RE Panel PC, or would you like to discuss a customised solution?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the iBASE IPPC17A9-RE or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
IPPC17A7-RE
- Sealed aluminium and SGCC chassis
- Fanless and vibration-tolerant design
- 17" resistive touchscreen with 1280x1024 resolution
- Dual-core Intel Atom D2550 CPU with 2x GbE LAN
IPPC17B9-RE
- Robust aluminium and steel chassis
- Fanless thermal design for durability
- Dual GbE LAN and serial industrial interfaces
- Resistive 17-inch display suitable for glove use
ASTUT-W153-PC1S
- Reinforced aluminium chassis
- Wide 12-36V DC power range
- Fanless and vibration tolerant
- Dual GbE ports and expansion slots

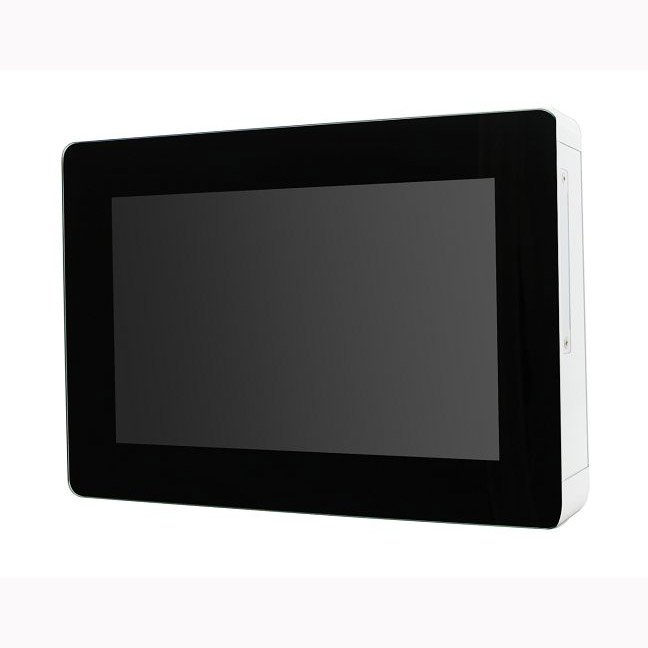

BYTEM-121-PC
