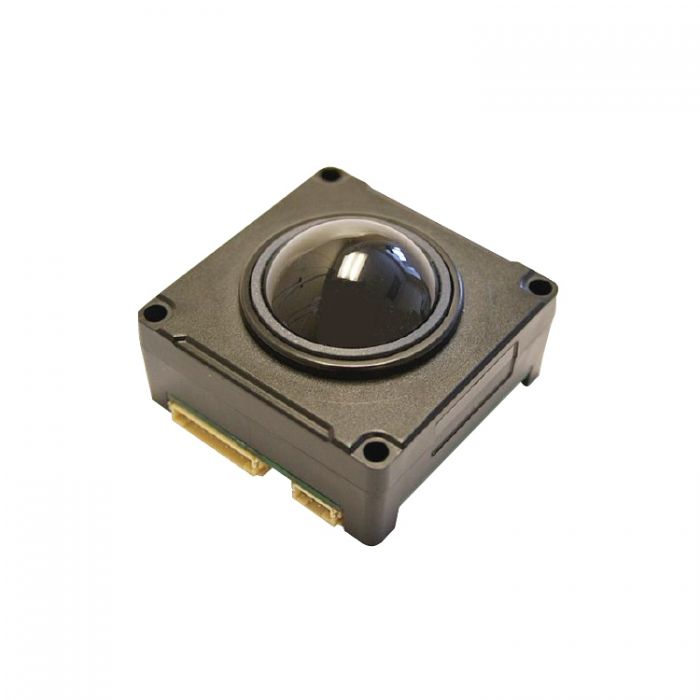

P38-Compact Cursor Controls Trackball
The P38 Compact Series are high specification, professional trackballs for use in demanding environments. High-grade stainless steel shafts and bearings ensure a solid and precise pointer control while the patented floating seal technology limits ingress of aqueous solutions and particulates. A choice of top plate and chassis configurations are available to provide various options on sealing, back lighting, bezel diameters and installation. The P38 Compact trackball has been designed to be back of panel mounted as part of OEM keyboards and consoles.
P38-Compact Features
- Sealing Options Up To IP65 (BS En 60529)
- Stainless Steel Shaft and Bearings
- Various Backlit Ball Options
- Custom Connector Options
- Optional Anti-Vandal Kit
- Smooth Operation In Rugged Environments
- Quadrature, Sun, RS232 Or USB Or PS2
Request for Quote (RFQ)
Product Type
Format
Manufacturer
Country Of Manufacture
United Kingdom
Case Material
ABS Polycarbonate
Certifications
CE, RoHS compliant
Custom Options Products
Cable Type,Cable Length,Interface,Trackball Colour
Housing Colour
Black
Humidity
30% min, 95% max, non-condensing
Lifetime
>10 million ball revolutions - non-sealed
>2 million ball revolutions - seal life
Storage Temperature
Storage Temperature -25C to + 85 C
Temperature Rating
Operating Temperature 0C to +70C
Storage Temperature -25C to + 85 C
Ball
Thermoset Phenolic, Polyester or Stainless Steel 38mm
Ball Load
200N Maximum downward pressure (20Kg) @ 20C
Ball Rotation
Continuous and reversible in any direction
Ball Speed
200 RPM maximum
Housing Material
ABS in black
Interface Filter
USB & PS2 (Auto Select)
Mounting Filter
Rear Mount
Mounting Position
Horizontal to 30° (non-sealed versions)
Horizontal to 60° rear elevation (sealed)
Power
Quadrature format 10ma typical
Protocol format 20ma typical
Resolution
(Quadrature) 241 pulses per ball revolution
(Protocol) 482/241 ppr - switch selectable (other options available upon request)
Tracking Force
8gms Nominal continuous no seal (IP40), Polyester 25gms Nominal continuous - Felt seal (IP51), Polyester 50gms Nominal continuou
Transducers
Photo-optical encoders with LEDS
The P38-Compact Cursor Controls Trackball is designed to meet the demands of various markets that require rugged, reliable products. Below are some of the key industries where the P38-Compact is commonly used:
Aerospace, Industrial and Manufacturing, Marine and Offshore, Military and Defence
These examples highlight the versatility of the P38-Compact Cursor Controls Trackball across a range of market applications, with its potential extending far beyond the sectors listed here. For more information or to assess if this Trackball fits your specific needs, please contact us.
The P38-Compact Cursor Controls Trackball comes with a 18 Month Limited Warranty against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, P38-Compact Cursor Controls Trackball, must be presented to RUGGED in the United Kingdom.
For more information about the P38-Compact Cursor Controls Trackball or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the P38-Compact Cursor Controls Trackball or require a custom solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Cursor Controls P38-Compact or need a custom Trackball solution designed specifically for you, our team of technical experts are ready to assist you.
