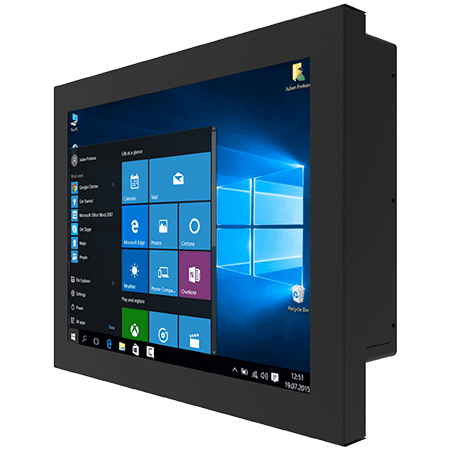

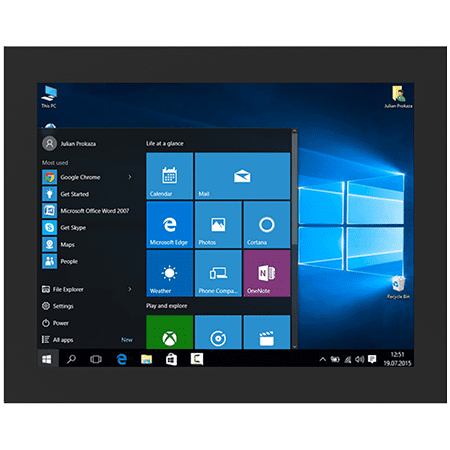

Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC
Winmate R15IAD3S-CHC3 is built around a robust metal housing and fanless cooling design, supporting industrial deployments exposed to dust and humidity. Featuring a 15-inch resistive touchscreen with 1024×768 resolution, it maintains clarity with 300 nits brightness and wide 88-degree viewing angles. The system is powered by an Intel Core i5-1235U processor paired with DDR5 memory and NVMe SSD storage, suitable for handling automation and control workloads sustained in continuous-duty environments.
This chassis panel PC includes dual Intel Ethernet controllers, serial ports, and optional wireless connectivity to fit various networking needs. Its IP65-rated front ensures dust-sealed, weatherproof protection, complemented by shock and vibration resistance within operating temperatures of 0°C to 50°C. VESA mounting offers flexible installation in compact or harsh conditions, while compliance with CE and FCC certifies its deployment readiness.
R15IAD3S-CHC3 Features
- 15” 1024 x 768 Resolution Chassis Panel PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
15.0 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
300.0 nits
Contrast Ratio
2000:1
View Angles
88-88-88-88
Active Area
304.1x228.1 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
360 X 290 X 69 mm
Weight
4.2 kg

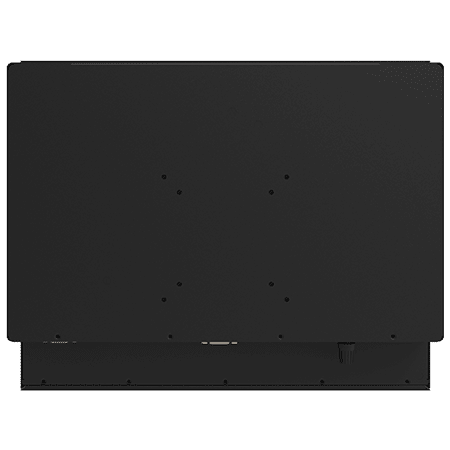

Mounting
VESA mount
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws
Power Rating
12V DC
Adapter
12V 120W"
The Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R15IAD3S-CHC3 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Education, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Logistics And Supply Chain, Public Sector, Security And Surveillance.
Across these sectors, the R15IAD3S-CHC3 is typically used in applications such as Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Secure Access, Authentication, And Control Terminals, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the R15IAD3S-CHC3 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R15IAD3S-CHC3 is appropriate for your specific application, please contact us.
The Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R15IAD3S-CHC3 15 Inch Chassis Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R15IAD3S-CHC3 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
