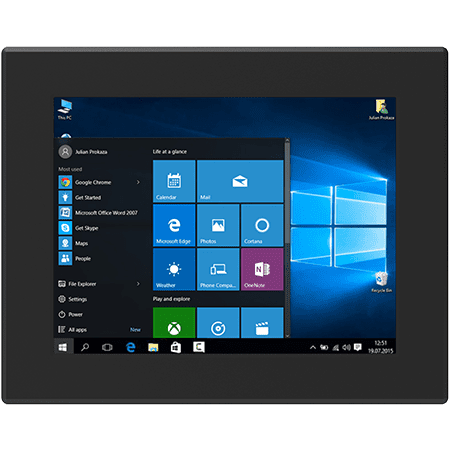

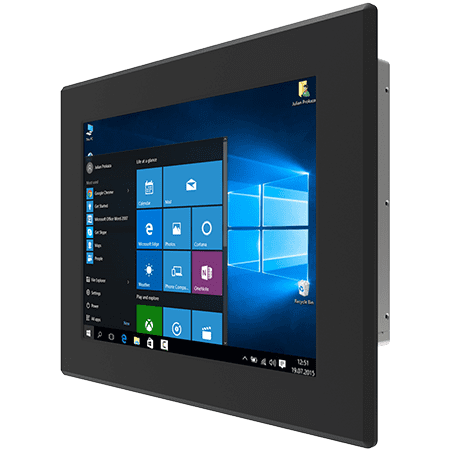

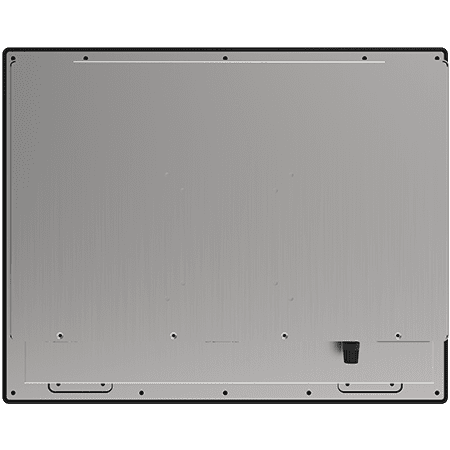

Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC
Designed for industrial automation environments, the Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC provides a reliable panel mount solution with a metal housing that seals against dust and moisture, ensuring durability in demanding settings. Its Intel Core i5-1235U processor delivers efficient continuous-duty performance supported by a fanless design that enhances reliability by reducing mechanical wear. The optional resistive touch screen allows precise interaction even in varied ambient conditions, while the 1024×768 resolution and 300 nits brightness offer clear visibility for control and monitoring tasks. The panel mount form factor fits securely into existing control frameworks, ideal for manufacturing and processing facilities.
Connectivity is comprehensive, featuring dual Intel Ethernet controllers and USB 3.2 ports for seamless network and peripheral integration. The system supports operating temperatures from 0 6C to 50 6C and 10% to 90% non-condensing humidity, keeping it operational in fluctuating production environments. Compliance with CE and FCC certifications confirms its resistance to electromagnetic interference and suitability for industrial-grade deployments. Additional options include TPM 2.0 security and flexible storage configurations with NVMe and SATA SSD support, making it a robust choice for embedded industrial computing needs.
R15IAD3S-PMC3 Features
- 15” 1024 x 768 Resolution Panel Mount PC
- 12th Gen Intel® Core™ i5-1235U processor
- 1 x SODIMM, DDR5 4800MHz, support up to 32GB
- Integrated Dual 2.5 Gigabit Ethernet
- Multiple I/Os, 2 x USB 3.2 Gen2x1, 2 x Serial Ports
- 12 V DC Power input
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
15.0 inches
Touch / Glass
Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional)
Resolution
1024x768
Panel Brightness
300.0 nits
Contrast Ratio
2000:1
View Angles
88-88-88-88
Active Area
304.1x228.1 mm
Processor
Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz)
Memory
1 x SO-DIMM- DDR5 4800 MHz- 8GB 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
Ethernet controller
2 x Intel® Ethernet Controller
Security
TPM 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Dimension
400 x 320 x 69 mm
Cut out
359.6 x 274.1 mm
Weight
5.1 kg
Mounting
Panel mount VESA mount (Optional)
Enclosure
Metal Housing
Cooling System
Fanless Design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
Certification
CE- FCC
USB Port
2 x USB3.2 Gen2x1 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232) 1 x RS232
LAN
2 x 2.5 Giga LAN RJ45 Connector
Video
1 x HDMI 2.0 (Optional)
Audio
2 x Speaker
Expansion Port
1 x M.2 2280 M-Key Slot (for NVME SSD) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
Power Input
1 x 12V DC- 2.5φ DC jack
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord VESA screws Mounting clips
Power Rating
12V DC
Adapter
12V 120W"
The Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R15IAD3S-PMC3 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Pharmaceutical.
Across these sectors, the R15IAD3S-PMC3 is typically used in applications such as Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, SCADA And Control-Room Access.
These examples demonstrate the versatility of the R15IAD3S-PMC3 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R15IAD3S-PMC3 is appropriate for your specific application, please contact us.
The Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R15IAD3S-PMC3 15 Inch Panel Mount Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R15IAD3S-PMC3 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
R15IAD3S-PPC3
- IP65 dust and water resistant metal housing
- Fanless Intel Core i5 processor for durable operation
- Dual Intel Ethernet controllers for network integration
- MIL-STD-810 shock and vibration certified
R17ITWS-MHM1
- IP65-rated front panel
- Fanless metal housing
- Dual gigabit Ethernet
- Modular design for field service
R10IAD3S-IPT2
- Front IP65 sealed panel
- MIL-STD-810H vibration and shock certified
- Dual 2.5 Gigabit LAN ports
- Fanless metal housing for compact durability

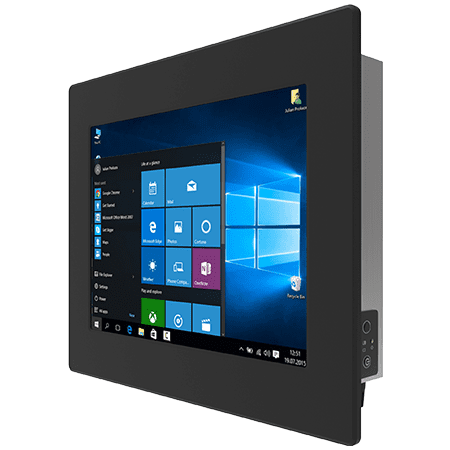

R12IAD3S-CHM2
