Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC
Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC is built around a fanless metal housing with an IP65-rated front panel, supporting reliable operation in industrial automation environments exposed to dust and moisture. Its 17-inch projected capacitive multi-touch screen offers 1280×1024 resolution and 350 nits brightness for clear, responsive control in manufacturing and process control settings.
Equipped with an Intel Core i5-1135G7 processor and flexible memory and storage options, the system maintains continuous performance for real-time monitoring and command. It includes dual gigabit Ethernet, USB 3.2, serial ports, HDMI, and DisplayPort outputs enabling smooth integration with industrial networks. The device operates from 0 C to 50 C with high humidity tolerance and complies with CE and FCC standards, ensuring dependable use in varying conditions. Built for easy servicing with a modular design and secured by TPM 2.0, the panel PC supports Windows and Linux operating systems.
R17ITWS-MHM1 Features
- Intel® 11th Generation Tiger Lake UP3 Core™ i5 CPU
- Signature true flat display screen with edge-to-edge design
- Aluminum, anti-corrosion treated housing
- Superior sealing with front IP65 protection against dust and water
- Projected Capacitive Multi-Touch Screen (PCAP)
- Fanless Design
- Support wide range 9-29 V DC input
- One Quick & Easy Removable 2.5” SSD Bay Slot
Request a Quote
Product Type
Manufacturer
Ruggedness
Mounting Format
Screen Size
Country Of Manufacture
Taiwan
Size
17.0 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1280x1024
Panel Brightness
350.0 nits
Contrast Ratio
1000:1
View Angles
85-85-80-80
Active Area
337.920x270.336 mm
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory
2 x SO-DIMM- DDR4 3200 MHz- 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional)
Storage
1 x M.2 2280 NVMe SSD- 128GB up to 512GB 2 x 2.5" Removable 256GB SSD up to 512GB (Optional)
Ethernet controller
Intel® Ethernet Controller I211-AT + Intel® Ethernet Connection I219-LM
Security
Trusted Platform Module (TPM) 2.0
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional)
WLAN
Support (Optional)
BT
Support (Optional)
Expansion Port
Modular Design for easy service in the field
Dimension
393 x 325 x 94.4 mm
Cut out
373 x 305 mm
Weight
7.0 kg
Mounting
Panel mount VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Operating Humidity
10% to 90% RH- Non Condensing
Operating Temperature
0°C to 50°C
Storage Temperature
-10°C to 60°C
IP rating
Front IP65
Certification
CE- FCC
USB Port
4 x USB 3.2 Gen.1 (Type-A)
Serial Port
2 x RS232/422/485 (Default RS232)
LAN
2 x Giga LAN RJ45 Connector
Video
1 x DP1.4 1 x HDMI 2.0 (Optional)
Audio
1 x Audio Combo Connector (Mic in / Line Out)
Expansion Port
1 x mPCIe slot 1 x PCIe x16 slot (x4 signal)(module max size:180x121mm) 1 x M.2 2230 Key E slot for WiFi 1 x M.2 2280 Key M slot for NVMe SSD Swappable 2.5” HDD/SSD Bay Slot
Indicator
1 x LED Indicator for storage
Power Input
1 x 9~29V DC- 3-Pin Terminal Block
Button
1 x Power Button with LED Indicator 1 x Reset Button
Accessory
100~240V AC to DC Adapter Power Cord Open Wire Cable with terminal block connector Mounting clips VESA screws
Power Rating
9V~29V DC with protection fuse
Adapter
12V 120W
Consumption
55W~65W"
The Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC is designed and engineered for use in demanding environments where reliability, durability are essential. The R17ITWS-MHM1 supports a wide range of industries and operational applications.
Common deployment industries include: Construction, Energy and Utilities, Food And Beverage Processing, Industrial Manufacturing, Marine And Offshore, Natural Resources and Mining, Oil and Gas, Pharmaceutical.
Across these sectors, the R17ITWS-MHM1 is typically used in applications such as ATEX And Hazardous-Area Data Capture, Health, Safety, And Compliance Inspections, Industrial HMI And Machine Interfacing, Preventive And Corrective Maintenance, Process Control And Shop-Floor Monitoring, Quality Control And Inspection, SCADA And Control-Room Access, Utilities Inspection And Meter Reading.
These examples demonstrate the versatility of the R17ITWS-MHM1 across both industry sectors and real-world operational use cases. Its suitability extends well beyond the scenarios listed above, making it a flexible solution for a broad range of requirements.
For further information, or to assess whether the R17ITWS-MHM1 is appropriate for your specific application, please contact us.
The Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC comes with a 1 Year RTB UK Warranty With Option To Extend Upto 3 Years against defects in workmanship and materials, effective from the date of shipment (unless otherwise agreed in writing).
To receive service under this warranty, the eligible product, Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC, must be presented to RUGGED in the United Kingdom.
For more information about the Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC or to arrange repairs and services not covered by the warranty, please visit the warranty section on our website.
Do you need further details about the Winmate R17ITWS-MHM1 17 Inch M Series HMI Panel PC, or would you like to discuss a customised solution or demonstration?
At RUGGED, we recognise that every project has its own unique demands. If you have any questions about the Winmate R17ITWS-MHM1 or need a custom Rugged Panel PC solution designed specifically for you, our team of technical experts are ready to assist you.
Alternative Products
Explore alternative products offering comparable features, performance, and build quality to the model you are currently viewing.
Our related solutions provide variations in configuration, functionality, and form factor to suit different application requirements. Each option has been selected to meet the same high standards of reliability and performance.
Browse the related products below to identify the most suitable fit for your deployment.
W15IAD3S-PMA2
- IP65 front bezel protection
- Fanless cooling for continuous operation
- Dual Intel 2.5 Giga Ethernet controllers
- Multiple industrial serial ports
W07FA3S-EHO1
- IP65 sealed front panel
- Fanless design for low maintenance
- NXP i.MX6 dual-core processor
- Multiple industrial connectivity ports
R15MG3S-PCC3-POE
- Power over Ethernet simplifies installation
- IP65-rated front panel for dust and water resistance
- MIL-STD-810H certified for vibration and shock
- Fanless metal housing for durability and reliability

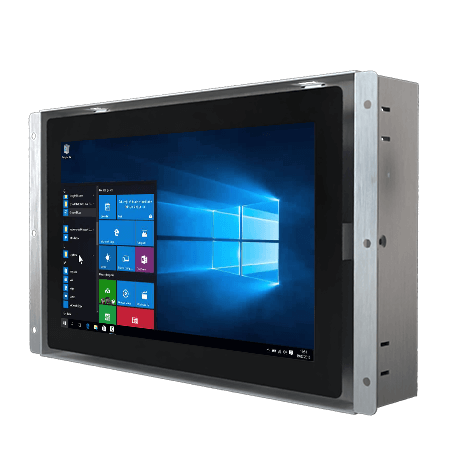

W07IE3S-POT1
